Omix-ADA Model 20 Differential Cover Gasket – 16502.03

Omix-Ada

Out of stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 5:40 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rear differential cover gasket for AMC Model 20 axles
  • Omix-ADA part number 16502.03, UPC 804314023188
  • Fits 1976–1983 CJ-5, 1976–1986 CJ-7 and 1981–1985 Scrambler
  • Rear axle location

Description

Overview

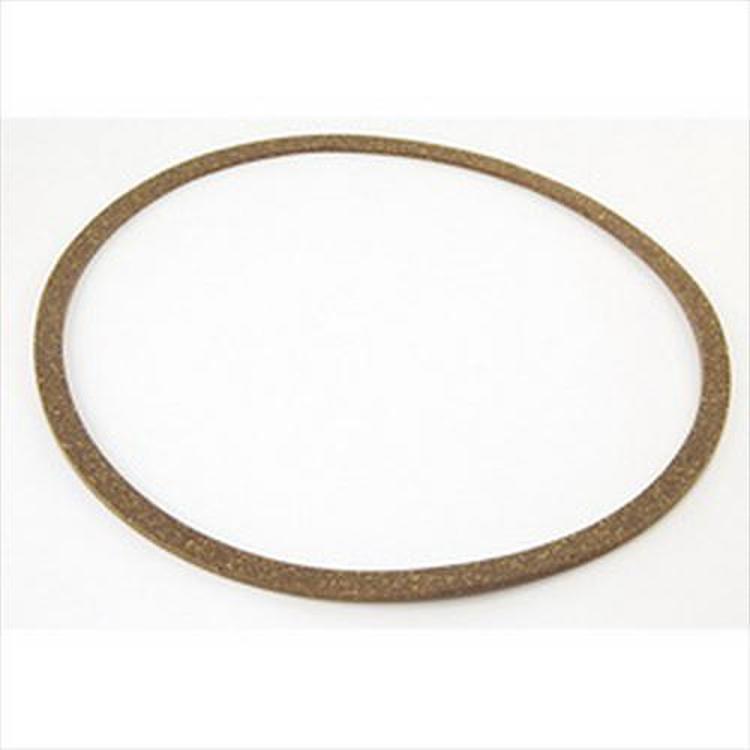

The Omix-ADA 16502.03 is a rear differential cover gasket for the AMC Model 20 axle. The axle maker is AMC, the axle type is AMC 20 and the position is rear.

It fits the 1976–1983 Jeep CJ-5 (Base, Golden Eagle, Laredo, Limited and Renegade trims), the 1976–1986 Jeep CJ-7 and the 1981–1985 Jeep Scrambler.

Key features

  • Made for the AMC Model 20 rear axle
  • Rear position
  • Direct fit

Identifying an AMC 20 axle

The AMC 20 is a rear axle used in several Jeep models of its era, and its cover differs in shape and bolt pattern from many other axles. Before buying a gasket, compare the cover shape and the number of bolt holes with the old gasket. A stamped tag or the axle housing casting usually shows the axle type, so look there before relying on the model year alone.

Gaskets for this type of axle are often cut from thin sheet material and can tear when removed, so pull the old one carefully and scrape off residue without gouging the metal. Inspect the cover for warping, since a bent cover will leak even with a new gasket. Refill with the correct gear oil for the axle once the cover is sealed and secured.

Specifications

Brand Omix-ADA
Part number 16502.03
UPC 804314023188
Axle maker AMC
Axle type AMC 20
Position Rear

Vehicle fitment

The gasket fits the 1976–1983 Jeep CJ-5 (Base, Golden Eagle, Laredo, Limited and Renegade), the 1976–1986 Jeep CJ-7 and the 1981–1985 Jeep Scrambler.

The Cherokee, Wagoneer and Wrangler models are not in the list.

Confirm your vehicle’s year, model and trim before ordering.

What’s included

One gasket, Omix-ADA part number 16502.03.

SKU: OAI16502.03 Category:

Specification

Shipping weight 0.20 lbs
Package dimensions 2.00 × 2.00 × 2.00 in
brands

Fitment

VehicleYearsTrims
Jeep CJ51976–1983Base, Golden Eagle, Laredo, Limited, Renegade
Jeep CJ71976–1986Base, Golden Eagle, Golden Hawk, Laredo, Limited, Renegade
Jeep Scrambler1981–1985Base, Laredo, Renegade, SL, SR

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Which Jeep models does the 16502.03 gasket fit?

It fits the 1976–1983 CJ-5, the 1976–1986 CJ-7 and the 1981–1985 Scrambler. Cherokee and Wagoneer models are not covered, so confirm fit for your vehicle's year, model and trim before ordering.

Does this gasket fit an AMC 20 rear axle?

Yes, if your rear axle is an AMC 20. The axle maker is AMC, the axle type is AMC 20 and the axle location is rear. Confirm the axle type before installing.

What is the UPC?

The UPC is 804314023188 and the Omix-ADA part number is 16502.03. Use both numbers when comparing this gasket with the one you are replacing on your rear cover.

Is it worth replacing the cover gasket when the axle is still in good shape?

Yes, if the cover seeps or the gasket looks hardened. A new gasket is inexpensive compared with the time needed to drain the fluid and clean the housing. Replacing it while the cover is off also lets you inspect the housing face and bolts for damage.
