Overview

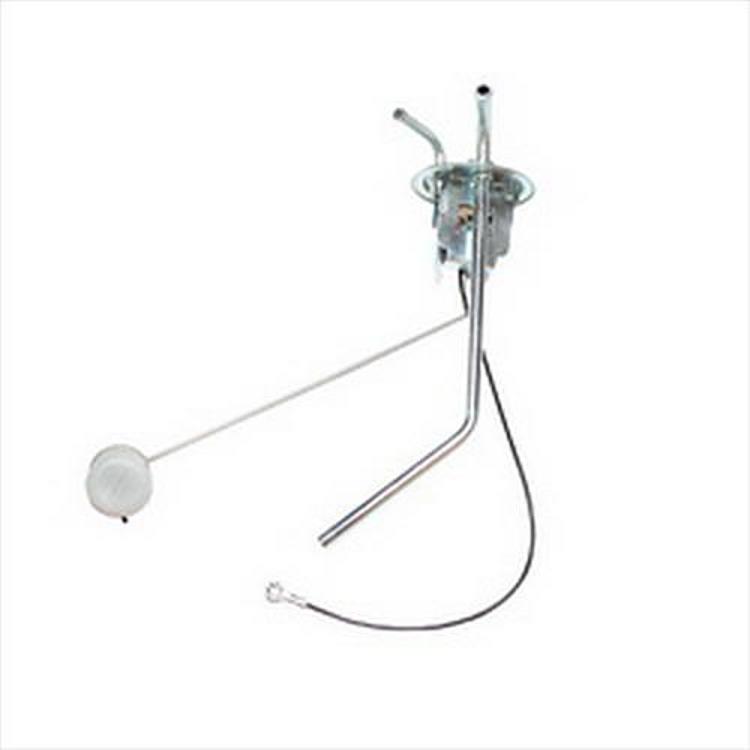

The Omix-Ada 17724.07 is a fuel tank sending unit, the float-and-resistor assembly that tells the fuel gauge how much fuel is in the tank. It is built for gauges that match the OHM specifications of original Jeep gauges, and AutoMeter, Equus and Omix-Ada digital gauges are named as compatible.
Omix-Ada points buyers to kit part number 5357373K if they want the complete set with the o-ring, lock ring and fuel filter.
Key features
- Matches the OHM specifications of original Jeep fuel gauges
- Compatible with AutoMeter, Equus and Omix-Ada digital gauges
- Resistance readings of 73 OHM empty, 10 OHM full and 23 OHM half
- Float can be moved by hand to check gauge response during testing
Diagnosing a fuel gauge
A fuel gauge that reads wrong often comes from the sending unit, the wiring or the gauge itself, so test the parts in order before replacing anything. A sticking float, a corroded ground or a loose connector can produce a reading that looks like a failed tank unit. Checking resistance at the sending unit with the float moved by hand helps separate these causes.
When replacing the unit, consider the condition of the tank opening, the fuel line fittings and the seal. Old lock rings and seals can leak once fuel is added. Because the tank holds fuel, keep the work area ventilated and clean up any spill before reconnecting the battery.
- Test wiring and ground before replacing the unit
- Replace seals and lock rings when the tank is opened
- Clean any spill before reconnecting the battery
Specifications
| Brand | Omix-Ada |
|---|---|
| Part number | 17724.07 |
| UPC | 804314035266 |
| Type | Fuel tank sending unit |
| Resistance, empty | 73 OHM |
| Resistance, full | 10 OHM |
| Resistance, half | 23 OHM |
| Complete kit part number | 5357373K |
Vehicle fitment
No vehicle years or models are named for this sending unit. Compatibility is stated by gauge type instead: gauges with the same OHM specifications as original Jeep gauges, including AutoMeter, Equus and Omix-Ada digital gauges.
Confirm the tank and float match your Jeep and gauge before installation. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Test the sending unit before installation. Connect the unit to the wire at the gas tank and ground it to a good ground on the frame. With the ignition on, move the float up and down to confirm the fuel gauge and sending unit respond. Work on the fuel tank with the battery disconnected and no open flame nearby.
What’s included
The sending unit itself.
Not included: O-ring, lock ring and fuel sock. The complete kit is part number 5357373K.
