Overview

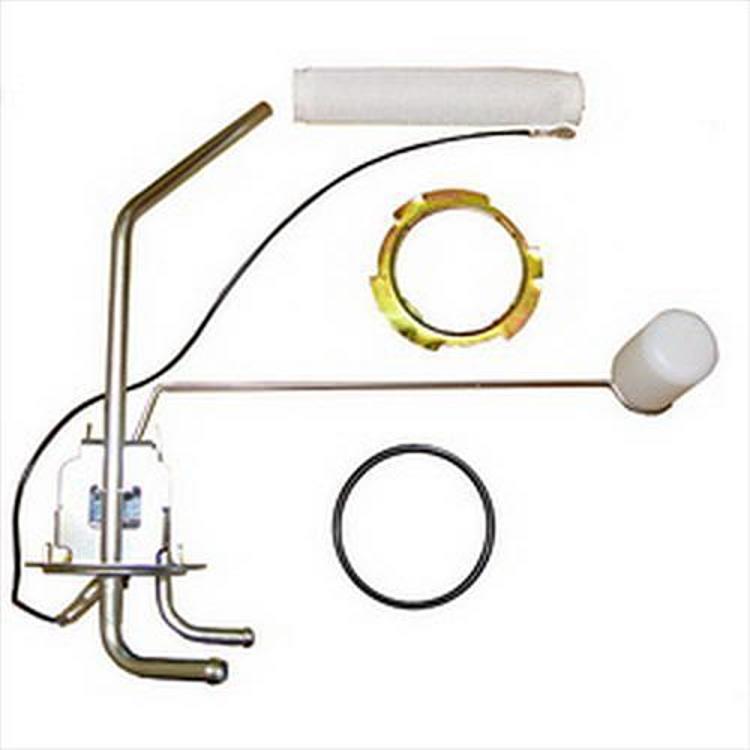

The Omix-ADA Fuel Tank Sending Unit Kit, part 17724.09, is a direct OE replacement fuel tank sending unit for 15 gallon tanks on 1970 to 1986 Jeep CJ models. It is built to original specifications and carries a limited five year warranty.
The sending unit sits inside the fuel tank and reports fuel level to the gauge. It is intended for owners replacing the original unit on a 1970 to 1986 CJ.
Key features
- Direct OE replacement built to original specifications by Omix-ADA
- Designed for 15 gallon fuel tanks
- Includes sending unit, filter, o-ring and lock ring
- Limited five year warranty
Checking the sending unit
The sending unit reads the float position and sends a signal to the gauge, so a failing sender can give false readings even when the tank is full. Symptoms usually include a gauge that sticks, drops suddenly or stays on empty. Check the gauge and wiring first, since a bad connection can look like a bad sender.
When replacing the unit, keep the tank surface clean and check the float arm for bends before installing. Replace the lock ring and o-ring as a set, and confirm the float moves freely through its full range. Fuel should not be left in the tank while the unit is out.
- Inspect the float arm for bends
- Replace the o-ring when the unit comes out
- Check the gauge and wiring before blaming the sender
Specifications
| Brand | Omix-Ada |
|---|---|
| Part number | 17724.09 |
| UPC | 804314141059 |
| Fits | 1970 to 1986 CJ |
| Tank size | 15 gallon |
| Warranty | Limited five year warranty |
| Included | Sending unit, filter, o-ring, lock ring |
Vehicle fitment
The kit fits 1970 to 1986 CJ models with a 15 gallon tank.
Check your model name, CJ5 or CJ7, before ordering, and confirm the year and tank size match your vehicle.
Installation notes
Fuel system work involves gasoline, so disconnect the battery and keep sparks and open flame away from the tank before replacing the sending unit.
What’s included
Sending unit, filter, o-ring and lock ring.
Not included: the fuel tank itself.
