Overview

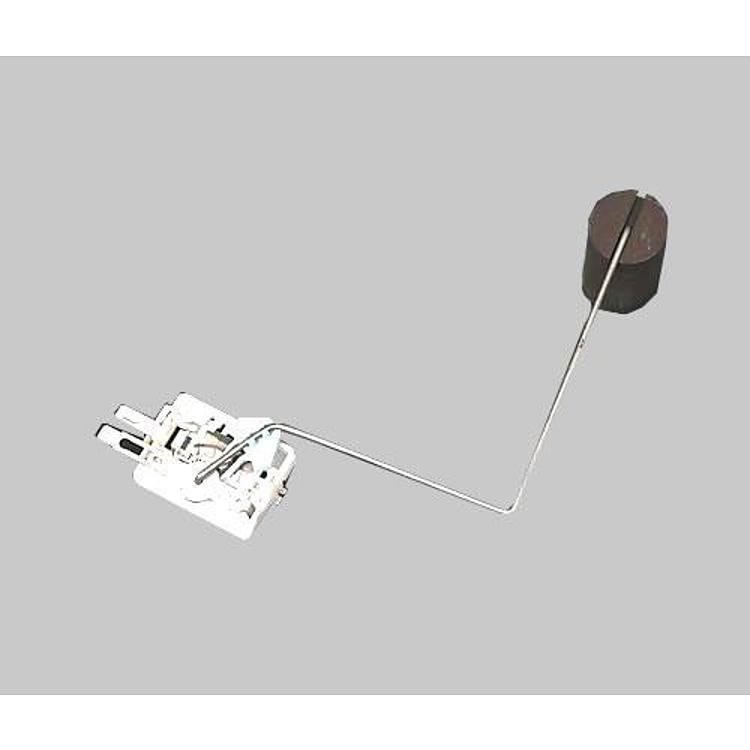

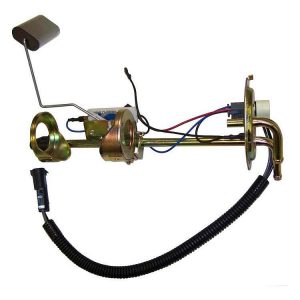

The Jeep 68142504AA is a factory replacement fuel tank sending unit for the 2004 Jeep Wrangler (LJ) Unlimited and for 1997–2004 Jeep Wrangler (TJ) models. It is sized for a 19 gallon fuel tank and 4 or 6 cylinder engines, which helps confirm the right match on the vehicles named below.
It is a factory part intended for the listed Wrangler trims, not a universal sender.
Key features
- Factory Jeep part for listed 1997–2004 TJ and 2004 LJ Unlimited Wranglers
- 19 gallon tank noted in the part information
- 4 or 6 cylinder engine applications
- Part number 68142504AA, UPC 70000525077
Fuel sender checks on Wranglers
On a TJ or LJ Wrangler, the sending unit sits in the fuel tank, where a float tracks fuel level and sends a signal to the dash gauge. Age, heat and fuel additives can corrode the wiper contacts or crack the float, so a sender that has served for many years may give a gauge reading that stays low or does not move.
Before replacing a sender, check the fuel gauge circuit and the wiring at the connector. A corroded plug or a poor ground can mimic a failed unit. If the gauge has been stuck, a quick voltage check at the connector can show whether the sender or the wiring is the cause.
Fuel system work carries fire risk. Relieve pressure, disconnect the battery, keep the area ventilated and avoid sparks. Replacing the tank seal and lock ring at the same time helps prevent future leaks at the opening.
- Inspect the connector for corrosion
- Test the gauge circuit before replacing
- Keep the battery disconnected during work
- Replace the tank seal when the unit is removed
Specifications
| Brand | Jeep |
|---|---|
| Part number | 68142504AA |
| UPC | 70000525077 |
| Part type | Fuel tank sending unit (factory replacement) |
| Tank size | 19 gallon |
| Engine | 4 or 6 cylinder |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2004 Jeep Wrangler (LJ) Unlimited and the 1997–2004 Jeep Wrangler (TJ) in the Rubicon, SE, Sahara, Sport and X trims.
The LJ entry covers the Unlimited body only. The fitment does not include 2005–2006 TJ models or 2007 and later Wrangler (JK) models. Confirm your vehicle’s year, model and trim before ordering.
What’s included
It is a factory fuel tank sending unit only. Check the package contents against your installation for any lock ring, gasket or fuel pump you need.
