Omix-ADA Fuel Gauge – 17209.04

Omix-Ada

$46.34Currently unavailable
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 19, 2026 5:50 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Electric fuel level gauge for 55-86 CJ Jeep models
  • Omix-ADA part number 17209.04, UPC 804314043148
  • Standard black face and direct OE replacement design
  • Published readings: 73 ohms empty, 23 ohms at 1/2 tank, 10 ohms full
  • Limited five year warranty coverage

Description

Overview

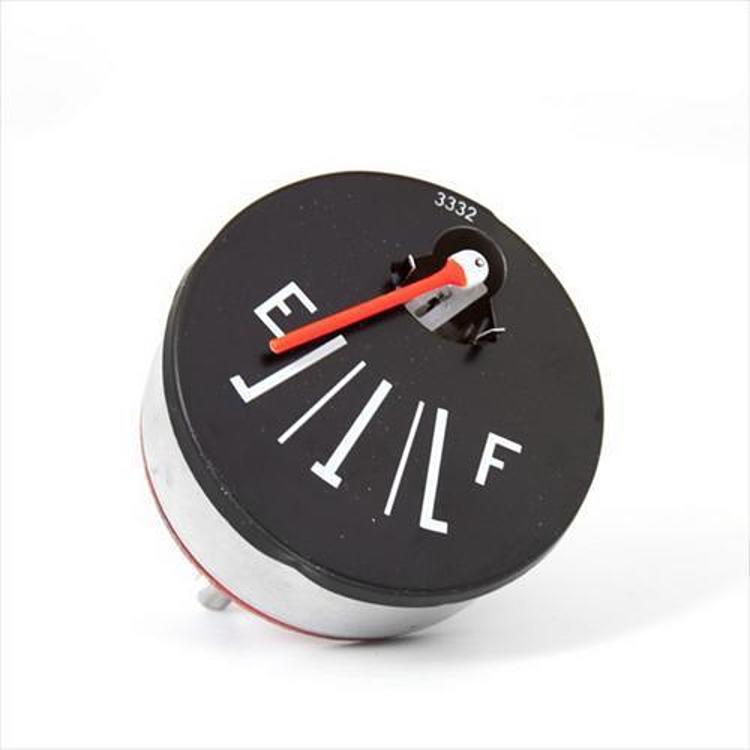

The Omix-ADA 17209.04 is an electric fuel level gauge for 55-86 CJ Jeep models. Omix-ADA built it to the original specifications as a direct OE replacement, so it suits owners who want a factory-style fuel gauge for the dash.

The gauge has a standard black face. Published fuel readings are 73 ohms at empty, 23 ohms at 1/2 tank and 10 ohms at full tank, and these values can be used to test the sender with a meter.

Key features

  • Direct OE replacement design built to the original specifications
  • Electric fuel level gauge with a standard series design
  • Standard black face
  • Published readings of 73 ohms empty, 23 ohms at 1/2 tank and 10 ohms full
  • Limited five year warranty coverage applies to the gauge.

Testing the sender

Fuel gauge problems often come from the sender rather than the gauge itself. Before replacing the gauge, check the wiring, ground and sender float travel. A meter can show whether the sender’s resistance changes smoothly as the float moves from empty to full, which helps you decide which part to replace.

Electric gauges depend on stable voltage, so a weak ground or corroded connector can make the needle read high or low. Clean the terminals, tighten the connections and confirm the gauge housing is grounded properly before blaming the gauge. If the needle sticks or jumps, inspect the wiring harness for chafing near the firewall.

Test the sender with the same meter setup each time so your results can be compared.

Specifications

Brand Omix-ADA
Part number 17209.04
UPC 804314043148
Gauge type Fuel level
Gauge series Standard
Electric or mechanical Electric
Face color Black
Fuel gauge readings Empty 73 ohms; 1/2 tank 23 ohms; full tank 10 ohms
Warranty Warranty coverage is limited to five years.

Vehicle fitment

It is built for 55-86 CJ Jeep models as a direct OE replacement. Before ordering, check that your year, model and trim match.

Vehicles outside the 55-86 CJ range fall outside this gauge’s design. Before ordering, confirm your vehicle’s year, model and trim.

What’s included

The gauge is sold on its own. Check the package contents against your installation before starting, including whether a sender is needed.

SKU: OAI17209.04 Category:

Specification

Shipping weight 0.32 lbs
Package dimensions 2.50 × 2.50 × 2.50 in
brands

Questions & Answers

Does the Omix-ADA 17209.04 fuel gauge fit a 55-86 CJ Jeep?

It is built for 55-86 CJ Jeep models as a direct OE replacement to original specifications. Confirm fit for your vehicle's year, model and trim before ordering, and check sender compatibility with your fuel system.

What is part number 17209.04?

Part number 17209.04 identifies this Omix-ADA electric fuel level gauge, and its UPC is 804314043148. Keep the part number when comparing it with other gauges so you match the exact item.

What resistance readings does this fuel gauge use?

The published readings are 73 ohms at empty, 23 ohms at 1/2 tank and 10 ohms at full tank. Use these values with a meter to check the sender against the gauge when testing your fuel level system.

Does this gauge come with a warranty?

Yes. The gauge carries a limited five year warranty. Keep your receipt and review the warranty terms for coverage details, including what the warranty covers and how to make a claim.

Is this an electric or mechanical fuel gauge?

It is an electric gauge with a standard series design and a black face. Measure your dash opening before fitting it to confirm the gauge will sit properly.

How can I tell if the fuel gauge or the sender is at fault?

Start by checking the wiring and ground connections, since loose or corroded parts often cause the problem. Then test the sender with a meter and compare its resistance as the float moves. If the sender reads correctly but the needle does not respond, the gauge is more likely the issue.
