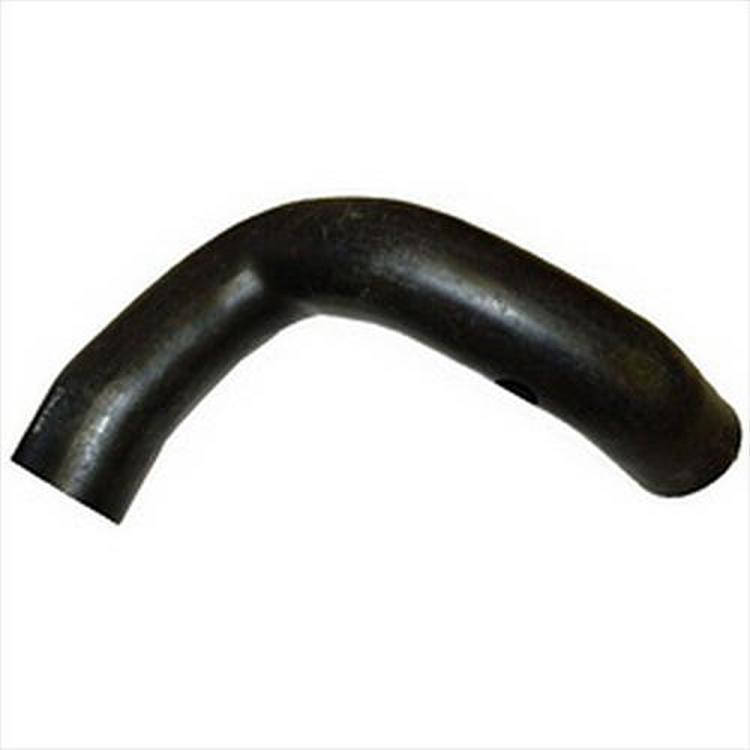

Omix-ADA Fuel Filler Hose – 17740.01

Omix-Ada

$41.98In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 9:40 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Omix-ADA 17740.01 fuel filler hose for 1970–1975 Jeep CJ5 and CJ6
  • 2-5/8 inch outside diameter and 2-3/16 inch inside diameter
  • Side hole for a vent connection
  • Part number 17740.01, UPC 804314021269

Description

Overview

The Omix-ADA 17740.01 is a fuel filler hose for the 1970–1975 Jeep CJ5 and CJ6. Omix-ADA builds it to original specifications as a direct OE replacement, so it is meant to match the factory hose it replaces.

It has a side hole for a vent. The outside diameter is 2-5/8 inch and the inside diameter is 2-3/16 inch, so compare those measurements with your original hose. This part carries a limited five year warranty.

Key features

  • Built to original specifications as a direct OE replacement
  • Hole on the side for a vent
  • 2-5/8 inch outside diameter
  • 2-3/16 inch inside diameter
  • Limited five year warranty

Signs a filler hose needs replacing

A filler hose takes fuel and vapor from the filler neck into the tank, so it is exposed to fuel, heat and road debris every day. Check the hose for cracks, swelling, soft spots or a strong fuel smell around the filler area. Any of these means the hose is due for replacement, even if no drip has appeared yet. Look at the clamps at both ends as well, because a loose clamp can let fuel seep out under pressure.

A vent port on the side of the hose must stay open and connected to the vent system. If the vent line is kinked or blocked, fuel can fail to flow freely into the tank and the system can build pressure. Route the new hose so it does not rub against the frame or body, and secure it away from moving parts.

  • Inspect for cracks and swelling
  • Check both clamps for looseness or corrosion
  • Confirm the vent connection is clear

Specifications

Brand Omix-Ada
Part number 17740.01
UPC 804314021269
Outside diameter 2-5/8 inch
Inside diameter 2-3/16 inch
Vent Hole on side for vent
Warranty Limited five year warranty

Vehicle fitment

It fits 1970–1975 Jeep CJ5 Base and Renegade trims and 1970–1975 Jeep CJ6 Base trim.

The list does not include CJ7 or later Jeep models, or any Wrangler. Confirm your vehicle’s year, model and trim before ordering.

What’s included

The package is one filler hose. Confirm whether clamps or fittings are needed before installing.

SKU: OAI17740.01 Category:

Specification

Shipping weight 2.00 lbs
Package dimensions 16.00 × 11.00 × 3.00 in
brands

Fitment

VehicleYearsTrims
Jeep CJ51970–1975Base, Renegade
Jeep CJ61970–1975Base

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the 17740.01 fit a 1975 Jeep CJ5?

Yes. It fits the 1970–1975 Jeep CJ5 in Base and Renegade trims, so a 1975 CJ5 falls within that range. Confirm your trim before ordering.

What is the vent hole for?

The hose has a hole on its side for a vent. Check your original hose to see how the vent connects before you install the new one.

What do the 2-5/8 inch and 2-3/16 inch measurements mean?

The 2-5/8 inch figure is the outside diameter and the 2-3/16 inch figure is the inside diameter. Compare both with your original hose before buying, and measure its length too.

Should the filler hose be replaced with the tank?

Not always. Replace the hose when it shows cracks, softness or leaks. A good tank with a worn hose still needs the hose changed, so inspect both parts during a fuel system job.

What should I check on the vent line when fitting a new hose?

Make sure the vent connection is clear and not kinked. Route the hose so it does not rub against the frame or body, and secure it away from moving parts.
