Overview

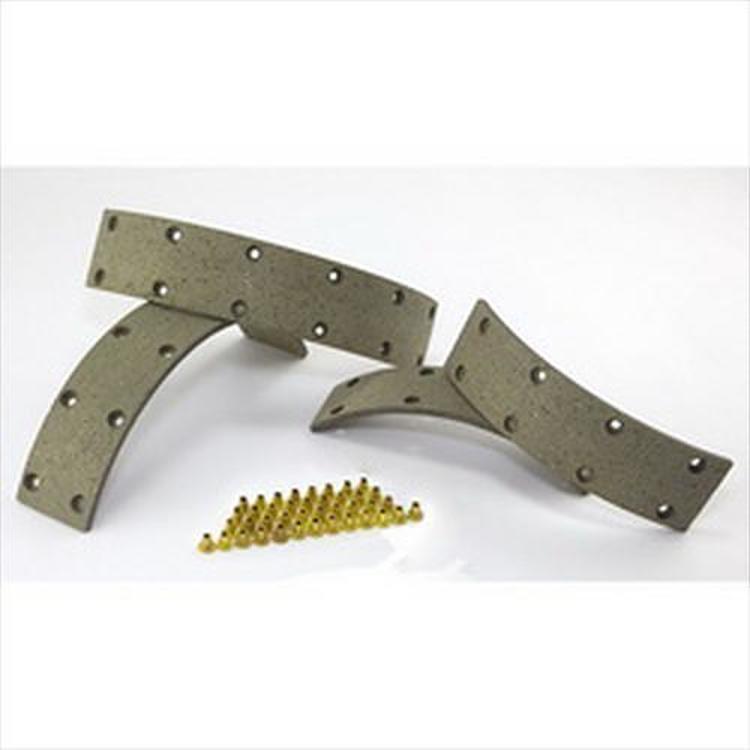

The Omix-ADA 16727.01 is brake shoe lining with rivets for 9 inch x 1.75 inch drum brakes, fitting the 1946–1949 Willys CJ-2, 1949–1953 Willys CJ-3 and 1941–1942 Willys MB.
The lining can be used on the front or rear brakes, and Omix-ADA builds it as a direct OE replacement to the original specifications.
Key features
- Brake shoe lining with rivets
- For 9 inch x 1.75 inch brakes
- Front or rear use
- Direct-fit replacement design
- Covered by a limited five year warranty from Omix-ADA.
Riveting and shoe prep
Riveted lining is a different job from bonded lining. The rivets must sit flush in countersunk holes in the shoe, and the shoe web should be checked for cracks before any new lining goes on. A shoe with a bent or cracked web will not hold the lining in a true arc, and that leads to uneven contact against the drum.
New lining is usually ground to match the drum radius so it contacts evenly and does not hold high spots. Clean the backing plate, check the anchor and the shoe pivot points, and make sure the shoes sit square before the drums go back on. Brake shoe work on older Willys vehicles is often best done with a shop that already has a riveting setup.
- Check the shoe web for cracks or bends
- Countersink rivet holes so the lining sits flush
- Grind the lining to the drum radius before fitting
- Clean and lubricate the backing plate contact points
Specifications
| Brand | Omix-Ada |
|---|---|
| Part number | 16727.01 |
| UPC | 804314007102 |
| Part type | Brake shoe lining |
| Size | 9 inch x 1.75 inch |
| Fastening | Rivets |
| Position | Front or rear |
| Fit type | Direct fit |
| Warranty | Limited five year warranty |
Vehicle fitment
It fits the 1946–1949 Jeep Willys CJ-2, the 1949–1953 Jeep Willys CJ-3 and the 1941–1942 Willys MB.
The 1943 Willys MB year and later CJ models are not in the list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The lining is riveted on, so it needs a riveting setup or a shop that does shoe relining.
What’s included
- Brake shoe lining with rivets
Not included: Brake shoes.
