Overview

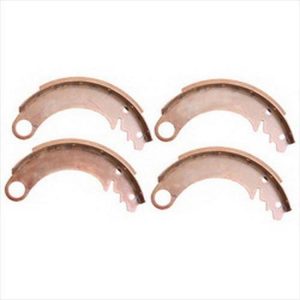

The Omix-ADA 16726.05 is a set of rear brake shoes for an AMC Model 20 axle with 10 inch x 1-3/4 inch brakes, and it includes 4 shoes. It fits the 1984–1989 Jeep Cherokee (XJ), 1978–1983 CJ5, 1978–1986 CJ7, 1981–1985 Scrambler and 1988–1989 Wrangler (YJ).
It is built to the original specifications as a direct OE replacement, and it carries a limited five-year warranty.
Key features
- Rear brake shoes for the AMC Model 20 axle
- Includes 4 shoes
- Sized for 10 inch x 1-3/4 inch brakes
- Direct-fit replacement design
- Limited five-year warranty
Shoe wear and drum condition
Brake shoes wear at the lining and at the contact points on the backing plate, and uneven wear often points to a sticking wheel cylinder or a seized adjuster. Check lining thickness on both shoes and look for glazing, which reduces grip. New shoes should sit squarely on the anchor and the cylinder pistons without binding.
Drums that are scored or out of round will wear new linings quickly, so measure the drum diameter and inspect the surface before fitting new shoes. Replace the hold-down springs and check the adjuster during the same job. Clean the backing plate of dust and apply grease only to contact points, never to the lining. Test the pedal and adjust the shoes before driving. Bed in the new linings with gentle stops.
Specifications
| Brand | Omix-Ada |
|---|---|
| Part number | 16726.05 |
| UPC | 804314045319 |
| Part type | Rear brake shoes |
| Axle | AMC Model 20 |
| Brake size | 10 inch x 1-3/4 inch |
| Shoes per set | 4 |
| Position | Rear |
| Fit type | Direct fit |
| Warranty | Limited five-year coverage |
Vehicle fitment
It fits the Jeep Cherokee (XJ) 1984–1989, CJ5 1978–1983, CJ7 1978–1986, Scrambler 1981–1985 and Wrangler (YJ) 1988–1989.
Confirm fit for your vehicle’s year, model and trim before ordering, especially for 1987 Wrangler YJ and later Cherokee years.
What’s included
- Four rear brake shoes
