Overview

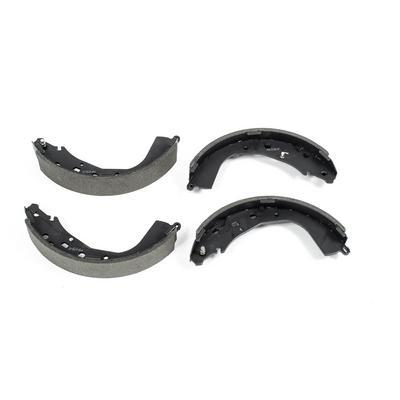

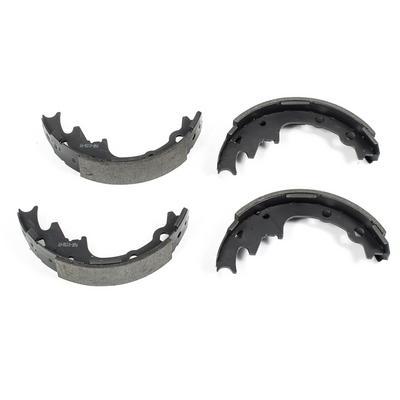

The Power Stop Autospecialty B764 is a set of rear drum brake shoes for the 2001-2005 Toyota 4Runner, the 2003-2004 Toyota Tacoma and the 2003-2006 Toyota Tundra. The shoes use a semi-metallic compound that Power Stop post-cures for more brake power and shorter break-in.
Power Stop makes them from new steel with a black rust-resistant coat and says each shoe is precision arc ground and comes with all hardware. Power Stop says its Autospecialty shoes are engineered to satisfy demanding professional installers, and the B764 follows that line for these three Toyota models.
The set is semi-metallic and post-cured, with chamfered shoe edges that Power Stop says keep braking quiet. The shoes are asbestos-free, and Power Stop states they are backed by a 3-year or 36,000-mile warranty. The B764 is a rear-position part, so it applies to drum rear brakes only.
Key features
- Rear drum brake shoes
- 100% new steel with a rust-resistant black coat
- Semi-metallic, post-cured compound
- Asbestos-free and copper-free
- Chamfers for noise-free braking
- Includes all hardware
- Backed by a 3-year / 36,000-mile warranty
Break-in and inspection
Drum brake shoes work by pressing outward against the inside of the drum, so the drum surface and the adjuster both affect how the brake feels. Before installing a new set, inspect the drum for scoring, heat marks or a worn lip, and clean the backing plate of old debris. Lubricate only the contact points that the service procedure calls for, keeping grease off the shoe linings.
After assembly, bed in the new shoes with a series of moderate stops so the friction material transfers evenly to the drum. Check the parking brake action and pedal feel before driving on public roads. Replace shoes when the lining is worn close to the rivets, when it shows cracks or glazing, or when the parking brake no longer holds the vehicle on a slope.
Specifications
| Brand | Power Stop |
|---|---|
| Part number | PSTB764 |
| Part type | Brake shoes (Autospecialty) |
| Position | Rear |
| Friction material | Semi-metallic, post-cured |
| Shoe material | 100% new steel, black coated |
| Hardware | All hardware included |
| Warranty | 3-year / 36,000-mile |
Vehicle fitment
The B764 is a rear drum brake shoe for the 2001-2005 Toyota 4Runner, the 2003-2004 Toyota Tacoma and the 2003-2006 Toyota Tundra.
The Tacoma fits 2003-2004 only, and later Tacomas use a different shoe. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Power Stop includes all hardware with the B764, so the rear drum can be reassembled from the set. The shoes are arc ground for the drum, so the break-in period is short, and a technician should check brake pedal feel and parking brake action before the vehicle is driven.
