Omix-ADA Front Brake Line Attaching Bolt – 16736.02

Omix-Ada

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 1977–1981 CJ5, CJ7, Cherokee SJ, Wagoneer SJ, J10, J20
  • Front brake line attaching bolt
  • Machined hole passes brake fluid
  • Omix-ADA part number 16736.02

Description

Overview

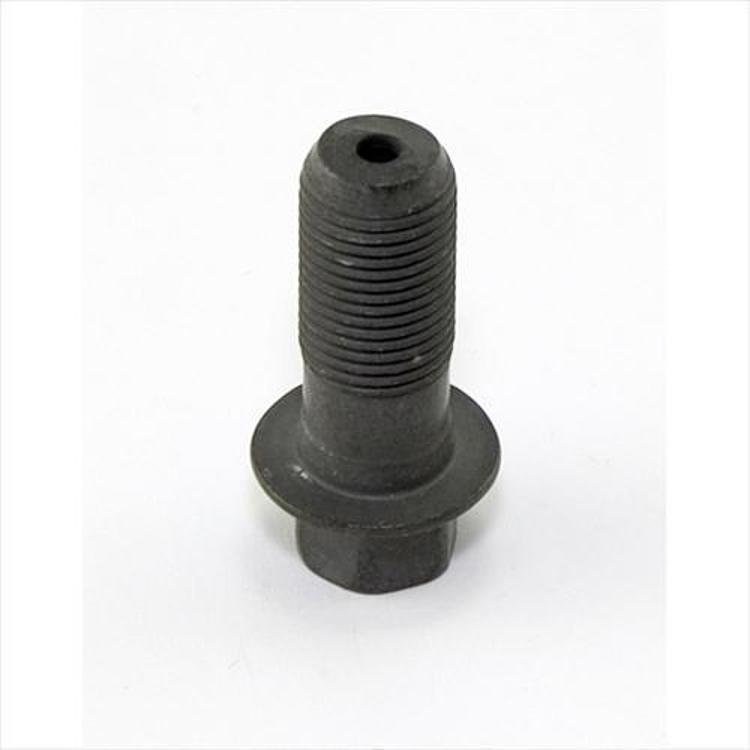

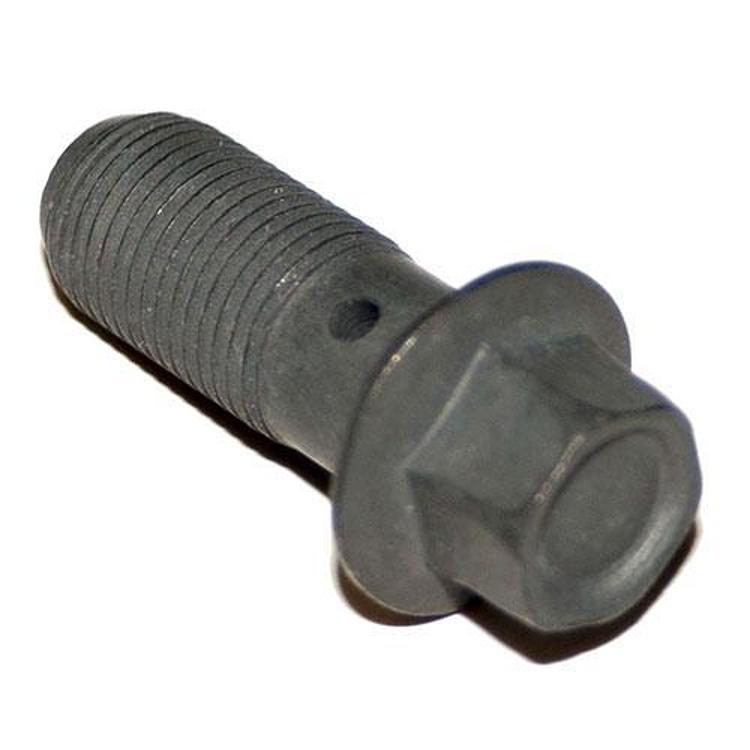

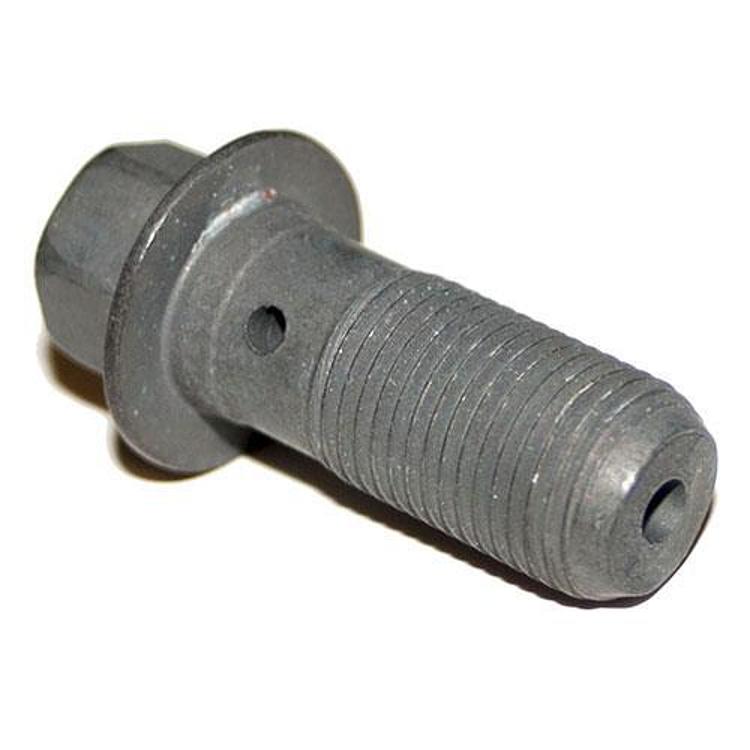

The Omix-ADA 16736.02 is a front brake line attaching bolt for 1977–1981 Jeep CJ5, CJ7, Cherokee (SJ), Wagoneer (SJ), J10, J20 and Scrambler models. The bolt connects the brake line to the brake assembly, and it has a machined hole through it so brake fluid can pass.

Key features

  • Connects the brake line to the brake assembly
  • Machined hole for fluid transfer
  • Front position
  • Direct-fit OE-style replacement
  • Covered by a limited five year warranty.

Before you replace the bolt

A brake line attaching bolt is a small part with a large job. It holds the line to the brake assembly under pressure, and it carries fluid through its hollow center, so a loose or worn bolt can leak. Before removing the old bolt, clean the area around the connection so dirt does not fall into the brake system.

Hollow bolts are usually sold with sealing washers, and those washers are often reused by mistake. Replacing them with the bolt is a sensible habit because a flattened washer can leak even when the bolt is tight. Tighten the bolt to the torque your service manual gives, and avoid overtightening, which can distort the seat.

After installation, check the connection for seepage and confirm the pedal feels firm before driving.

  • Inspect the old bolt for cracks or thread damage.
  • Replace sealing washers along with the bolt.
  • Keep the fluid reservoir topped up while bleeding.

Specifications

Brand Omix-Ada
Part number 16736.02
UPC 804314026370
Position Front
Function Connects brake line to brake assembly
Design Machined hole for fluid transfer
Fit Direct fit
Warranty Limited five year warranty coverage.

Vehicle fitment

It fits the 1977–1981 Jeep CJ5, CJ7, Cherokee (SJ), Wagoneer (SJ), J10 and J20, and the 1981 Scrambler.

No other years are listed, so earlier or later CJ and SJ vehicles are not covered. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A hollow brake line bolt carries fluid, so the brake system should be bled once the line is reconnected.

SKU: OAI16736.02 Category:

Specification

Shipping weight 0.06 lbs
Package dimensions 2.00 × 2.00 × 2.00 in
brands

Fitment

VehicleYearsTrims
Jeep Cherokee (SJ)1977–1981Base, Chief, S, Wide Track
Jeep CJ51977–1981Base, Golden Eagle, Laredo, Renegade
Jeep CJ71977–1981Base, Golden Eagle, Golden Hawk, Laredo, Renegade
Jeep J101977–1981Base
Jeep J201977–1981Base
Jeep Scrambler1981Base
Jeep Wagoneer (SJ)1977–1981Base, Limited

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What is the Omix-ADA 16736.02?

It is a front brake line attaching bolt. It connects the brake line to the brake assembly, and its machined hole lets brake fluid transfer through it.

Which years does the 16736.02 fit?

It fits 1977–1981 models: the CJ5, CJ7, Cherokee (SJ), Wagoneer (SJ), J10 and J20, plus the 1981 Scrambler. For any other year, confirm fit for your vehicle's year, model and trim before ordering.

Is the 16736.02 for the front or rear brakes?

It is a front-position part for the front brake line connection. A rear brake line connection needs a different part number.

Should I replace the sealing washers when I replace the bolt?

Yes, it is a good habit. Sealing washers compress once and can leak when reused, so replacing them with the bolt helps keep the connection sealed.
