Mountain Off Road Enterprises Spring Over Kit for Dana 35 Axle – SOK35

Mountain Off Road Enterprises

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Spring over kit for the Dana 35 axle, part number SOK35
  • Lifts the Jeep 3-7/16″ plus your spring pack thickness
  • Spring perches and U-bolt plates of 1/4″ plate, shock mounts of 3/16″ plate
  • U-bolts not included; the 5/8″ holes take 9/16″ U-bolts

Description

Overview

The Mountain Off Road Enterprises SOK35 is a spring over kit for the Dana 35 axle, designed to lift a Jeep by moving the springs over the axle. The kit is built with heavy plate throughout the spring perches, U-bolt plates and shock mounts.

The kit lifts the Jeep 3-7/16″ plus the thickness of your spring pack. It is an economical way to lift a Jeep with a spring over design. Confirm whether your axle is a Dana 35 or a Dana 30 before ordering.

Key features

  • Spring perches and U-bolt plates made from 1/4″ plate
  • Shock mounts made from 3/16″ plate
  • 5/8″ holes in the U-bolt plates for 9/16″ U-bolts
  • Lift of 3-7/16″ plus the thickness of your spring pack

Spring over setup basics

A spring over moves the leaf springs to the top of the axle, which changes the axle’s location and the shock angles. Because the lift depends on the spring pack, two trucks with the same kit can end up at different heights. Measure the pack carefully and plan the shock length and bump stop position before buying the rest of the parts.

The new spring position shifts the pinion angle, so the driveline should be checked after the spring over is fitted. Heavy plate parts handle the loads well, but the U-bolts still need to be tightened in stages and re-checked after the first drives. Clean the spring perch faces so the plates seat flat.

  • Measure the spring pack before ordering
  • Plan shock length for the new position
  • Check pinion angle after the swap
  • Re-check U-bolts after early drives

Specifications

Brand Mountain Off Road Enterprises
Part number SOK35
UPC 700007050091
Axle Dana 35
Spring perch and U-bolt plate thickness 1/4″ plate
Shock mount thickness 3/16″ plate
U-bolt plate holes 5/8″ holes for 9/16″ U-bolts
Lift height 3-7/16″ plus spring pack thickness

Vehicle fitment

It is built for a Dana 35 axle and is a lift part, not a general-purpose item. Check that your axle is a Dana 35 and that your spring and axle setup suits the kit before ordering.

Confirm whether your axle is a Dana 35 or a Dana 30. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

U-bolts are not included, so you will need 9/16″ U-bolts to fit the 5/8″ holes in the U-bolt plates. The final lift depends on your spring pack thickness, so measure it before buying. A spring over conversion changes how the axle sits under the vehicle, so have the driveline angles and alignment checked after installation.

What’s included

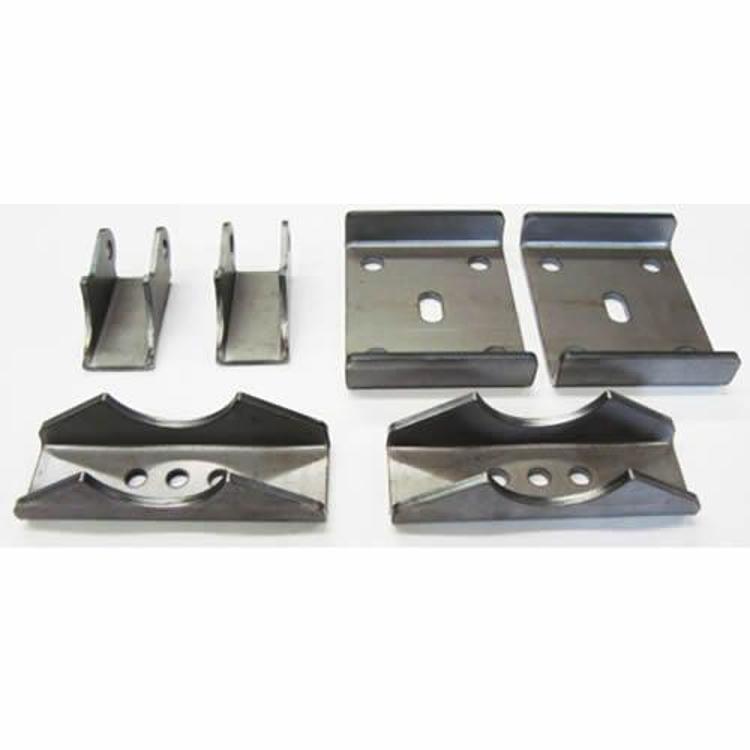

The kit includes the spring perches, U-bolt plates and shock mounts. Check the package contents against your installation before starting.

Not included: U-bolts are not included. You need 9/16″ U-bolts to fit the 5/8″ holes in the U-bolt plates.

SKU: MRESOK35 Category:

Specification

Shipping weight 11.00 lbs
Package dimensions 10.00 × 6.00 × 4.00 in
brands

Questions & Answers

What is the Mountain Off Road Enterprises SOK35?

It is a spring over conversion kit for the Dana 35 axle, part number SOK35, from Mountain Off Road Enterprises. It is designed to lift a Jeep's suspension by moving the springs over the axle.

Does this kit include U-bolts?

No. U-bolts are not included. The U-bolt plates have 5/8" holes for 9/16" U-bolts, so buy U-bolts that match those holes separately.

Which vehicles does the SOK35 fit?

It carries a Universal Fit label, but this is a Dana 35 spring over kit. Confirm your axle and vehicle match before ordering.

How much lift does it give?

The lift is 3-7/16" plus the thickness of your spring pack. Measure your current spring pack to estimate the total lift before ordering.

Do I need new brake lines after a spring over?

Often yes. Moving the axle changes the brake line length and routing, so check for tightness at full suspension travel. Replace any line that stretches or rubs once the new height is set.
