Overview

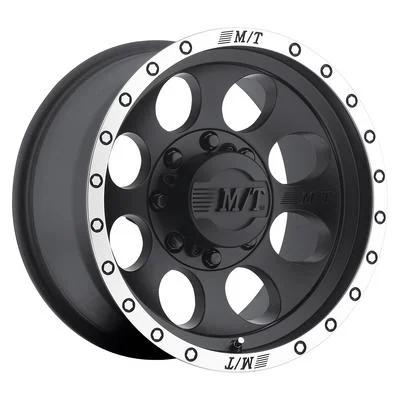

The Mickey Thompson Classic Baja Lock 16×10 is a matte black aluminum wheel with a simulated bead lock look. Part number M/T90000020081 has a 6 on 5.5 bolt pattern, a 106 center bore and an offset of -25. It is built for 4×4 owners who want off-road race or rock crawler styling and is a universal fit wheel.
The Baja Lock carries over the styling of the Classic III and adds a simulated bead lock feature for the look of a beadlock. It comes with a lifetime limited guarantee against structural defects and a one year finish warranty.
Key features
- Simulated bead lock feature added to the Classic III design.
- Holes style suited to off-road race and rock crawler styling.
- Aluminum construction in a 16-inch diameter and 10-inch width.
- 6 on 5.5 bolt pattern with a 106 center bore.
- Offset of -25 and backspacing of 4.5.
- Lifetime limited guarantee for structural defects and one year finish warranty.
Beadlock styling and off-road use
A simulated bead lock is a styling feature. It changes the appearance of the face without changing how the tire seats, so tires still need normal pressure checks. Use the pressure range printed on the tire sidewall for your load and terrain.
Matte black finishes show chips and scuffs from rock contact. Clean them with mild soap, avoid abrasive pads, and check the lip and spokes after rocky trails. A 16 inch wheel with a 10 inch width changes tire choices, so measure fender clearance before fitting a wider tire.
Lug seats and hub bore are the main checks before the first trip. Confirm the bolt pattern and center bore, then torque lug nuts in a star pattern and recheck them after the first few drives on new wheels.
- Keep the tire pressure within the sidewall range
- Inspect the lip for dents after rock contact
- Retorque lug nuts after early drives
- Clean grit from the lug seats at each rotation
Specifications
| Brand | Mickey Thompson |
|---|---|
| Part number | M/T90000020081 |
| Series | Classic Baja Lock |
| Style | Holes |
| Finish | Matte black |
| Construction | Aluminum |
| Wheel diameter | 16 inches |
| Wheel width | 10 inches |
| Bolt pattern | 6 on 5.5 |
| Center bore | 106 |
| Offset | -25 |
| Backspacing | 4.5 |
| Warranty | Lifetime limited guarantee for structural defects; one year finish warranty |
| Fitment | Universal Fit |
Vehicle fitment
The wheel is a universal fit design, so it is not tied to one vehicle. Check that your hub uses a 6 on 5.5 bolt pattern and a 106 center bore, and compare the -25 offset and 4.5 backspacing with your brake and suspension clearance.
A 10-inch width and negative offset push the wheel outward, which affects tire rub and fender clearance. Measure before mounting larger tires on this wheel.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Center caps are not available for 1997 and earlier Ford 3/4 and 1-ton pickups, 2002 and earlier Dodge/Ram 3/4 and 1-ton pickups, 1997 and earlier Toyota Land Cruiser models, and 1986 and earlier Jeep CJ models. Check cap availability for your application before planning the look.
What’s included
This is a single wheel. Tires, lug nuts and center caps are not included, and caps are restricted on some older applications.
