Method Race Wheels 305 NV, 17x8.5 with 8 on 6.5 Bolt Pattern – Titanium / Black – ZMR30578580800

Method Race Wheels

Shop Method Race Wheels 17x8.5 8x6.5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Method Race Wheels MR305 NV windowed aluminum wheel, 17×8.5 inches, Titanium/Black
  • 8 on 6.5 bolt pattern and 131 center bore
  • Offset 0, backspacing 4.75
  • Part number MRWZMR30578580800

Description

Overview

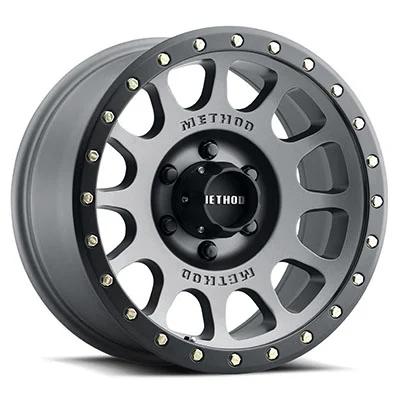

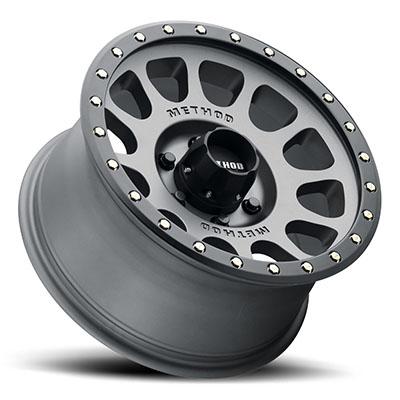

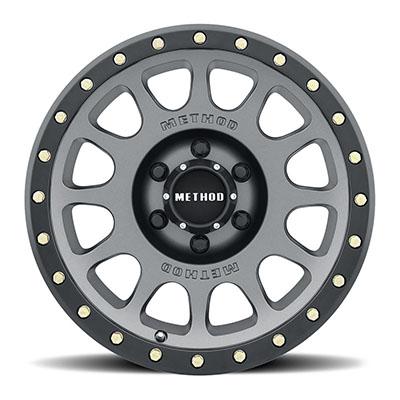

The Method Race Wheels MR305 NV 17×8.5 wheel in Titanium/Black, part number MRWZMR30578580800, is an aluminum windowed wheel with an 8 on 6.5 bolt pattern. It is part of the MR305 NV series.

The 131 center bore and 0 offset set how the wheel centers on the hub and where its mounting face sits. Check both before installing the wheel. Because no vehicle is named, these measurements are the main reference for fit.

Key features

  • Windowed MR305 NV style
  • Aluminum construction
  • 17-inch diameter and 8.5-inch width
  • Titanium/Black finish
  • 8 on 6.5 bolt pattern with a 131 center bore
  • Offset 0 and backspacing 4.75

Tire and wheel pairing

The tire is the part most likely to cause trouble after a wheel change. An 8.5-inch wide rim suits tires sized for that width, and a tire that is too wide or too narrow can affect bead seating, sidewall flex and handling. Pick a tire whose load rating and sidewall suit the vehicle and the way it will be driven.

Off-road use adds pressure changes to the pairing. Lower pressures make the bead more likely to unseat on a hard landing, so check the bead after each trail session. Keep the valve stem in good condition, since a leaking stem can look like a wheel problem.

  • Confirm tire width against the rim width
  • Check bead seating after airing down and airing up
  • Inspect valve stems during tire service
  • Balance the wheel and tire assembly before the first drive

Specifications

Brand Method Race Wheels
Part number MRWZMR30578580800
Series MR305 NV
Style Windowed
Construction Aluminum
Diameter 17 inches
Width 8.5 inches
Bolt pattern 8 on 6.5
Center bore 131
Offset 0
Backspacing 4.75
Finish Titanium/Black

Vehicle fitment

No vehicle is confirmed for this wheel. Before ordering, confirm the fit for your own year, model and trim, and check bolt pattern and offset against your current wheels.

The offset of 0 changes the wheel’s position relative to the fender, so compare it with your current wheels. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Match the 8 on 6.5 pattern and 131 center bore to the hub, then verify the 4.75 backspacing clears brake calipers. Confirm the tire width suits the 8.5-inch wheel before mounting.

What’s included

Check the package contents against your installation, since lug nuts, valve stems and tires are not confirmed as included.

SKU: MRWZMR30578580800 Categories: ,

Questions & Answers

What is part number MRWZMR30578580800?

It is the Method Race Wheels MR305 NV 17x8.5 wheel in Titanium/Black with an 8 on 6.5 bolt pattern. The 131 center bore, 0 offset and 4.75 backspacing are given in the wheel specifications for this part.

Will this wheel fit my truck or Jeep?

Fit depends on the bolt pattern, center bore, offset and backspacing matching your hub. Measure the hub and confirm your vehicle's year, model and trim before mounting.

What finish does it have?

Lug nuts, valve stems and tires are not confirmed as included. Check the package contents against your installation before starting, and plan to source any missing hardware.

How should I pair a tire with this wheel width?

Choose a tire whose size suits an 8.5-inch wide rim, and check the load rating and sidewall for the vehicle. A tire that is too wide or narrow for the rim can affect handling and bead seating.
