Overview

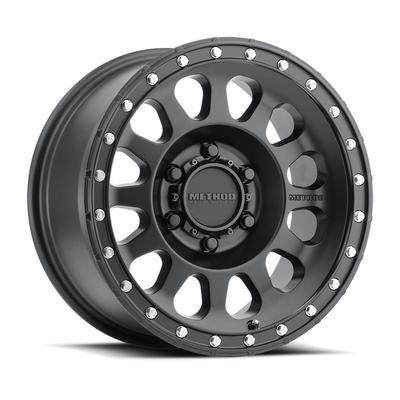

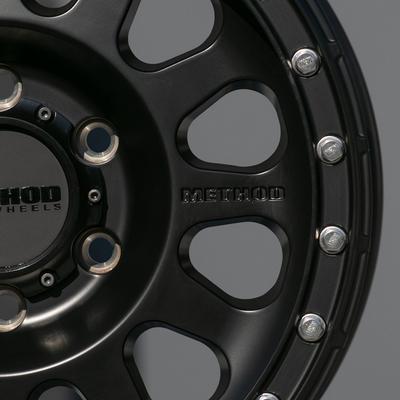

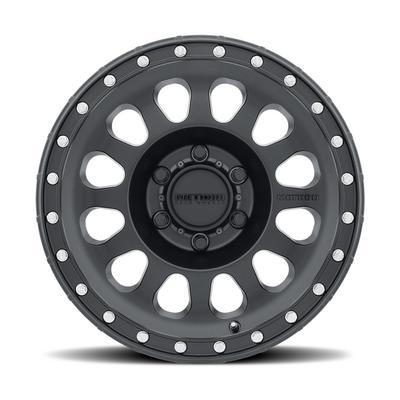

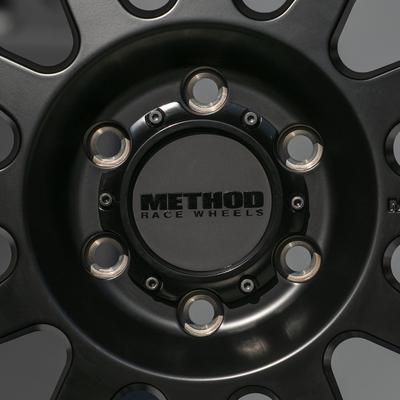

The Matte Black Method Race Wheels MR315 17×9 is a 17-inch aluminum wheel with a 5 on 5 bolt pattern and part number MRWMR31579050512N. It has windowed styling, a matte black finish, a 9 inch width, -12 offset, 4.5 backspacing and a 72 center bore.
Each design is engineered for off-road racing use and checked through finite element analysis and field testing. The goal is less weight and more strength. Read the specifications alongside your hub measurements before mounting any wheel.
Key features
- Windowed MR315 styling on a 17 inch wheel
- Matte black finish over aluminum construction
- 9 inch width with -12 offset and 4.5 backspacing
- 5 on 5 bolt pattern with a 72 center bore
- Finite Element Analysis and field testing reported by the maker
Negative offset and clearance
Negative offset moves the mounting face outward, so the wheel sits farther out on the hub than a zero or positive offset would. The outer lip and tire sidewall need room at full steering lock, and the fender edge becomes the main limit. Check that clearance with the tire you plan to run, not with a smaller tire, because a taller or wider tire changes the gap.
Backspacing controls the space behind the mounting face, which decides how much brake caliper and inner suspension clearance the wheel leaves. With 4.5 backspacing, measure the caliper and any inner components before the wheel goes on. A wheel this wide also places more load on the bearings and hub, so choose a tire rated for the vehicle’s weight.
- Measure fender gap at full steering lock
- Check caliper and inner suspension clearance
- Test-fit with the tire you plan to run
- Confirm hub bore and bolt pattern first
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR31579050512N |
| Series | MR315 |
| Wheel diameter | 17 Inches |
| Wheel width | 9 Inches |
| Bolt pattern | 5 on 5 |
| Center bore | 72 |
| Offset | -12 |
| Backspacing | 4.5 |
| Style | Windowed |
| Finish | Matte Black |
| Construction | Aluminum |
Vehicle fitment
No vehicle is matched to this wheel. The 5 on 5 bolt pattern and 72 center bore must suit your hub, and the -12 offset with 4.5 backspacing determines clearance at the brakes, fender and suspension.
Hub and clearance checks come first with a wheel of this offset, so complete them before selecting a tire. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Negative offset puts the wheel farther out on the hub, so the outer lip and tire sidewall need clearance at full lock. The 4.5 backspacing sets the room behind the mounting face, so confirm caliper and inner suspension clearance before the wheel goes on the vehicle.
What’s included
The wheel is the only item covered here, so tires and lug nuts need to be selected separately.
Not included: Tires and lug hardware need to be selected and fitted separately.
