Overview

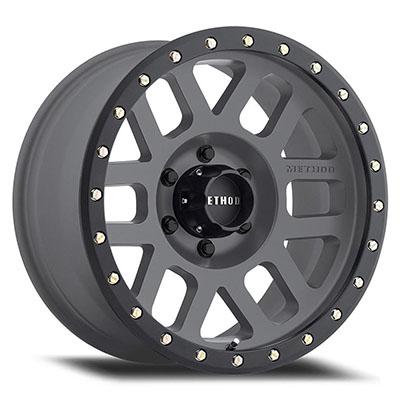

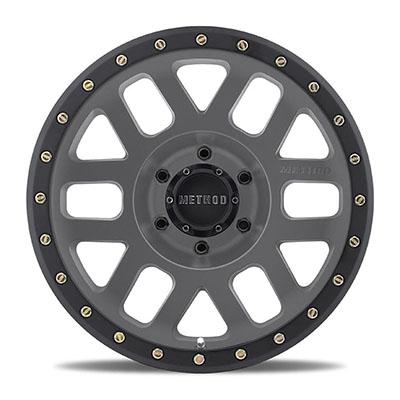

The Method Race Wheels 309 Grid 18×9 in titanium and black, part number MRWMR30989088800, is an aluminum mesh wheel with an 8 on 180 bolt pattern. It carries a 131 center bore, an offset of 0 and backspacing of 5. The product name gives titanium and black, but the spec sheet lists gray as the finish.
The 309 Grid is one of the Method Race Wheels models made for off-road racing. It was engineered for that use through Finite Element Analysis and field testing, with a focus on lighter weight and greater strength.
Key features
- Aluminum mesh wheel in the MR309 Grid series
- 18 inch diameter and 9 inch width
- 8 on 180 bolt pattern with a 131 center bore
- Zero offset and backspacing of 5
- Designed to reduce weight while adding strength.
Weight and unsprung mass
Wheel weight counts as unsprung mass, the part of the vehicle that moves with the suspension and tire. Less of it lets the springs and dampers keep the tire in contact with uneven ground, which can help traction and ride quality over trails.
Lighter wheels do not change everything, though. Tire choice, tire pressure and suspension tuning shape how a truck handles far more in daily driving. A wheel with lower weight still needs proper hub fit and balance before it is used on the road.
When a wheel is replaced, the old one is often worth inspecting for cracks around the spokes and lip, especially after hard landings. Balance the new wheel with its tire, and check that the lug nuts seat evenly on the hub.
- Balance the wheel with the tire it will carry
- Inspect the lip and spokes after hard landings
- Recheck lug torque after the first drive
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR30989088800 |
| Series | MR309 Grid |
| Construction | Aluminum |
| Style | Mesh |
| Finish | Gray (spec sheet); titanium / black (product name) |
| Wheel diameter | 18 inches |
| Wheel width | 9 inches |
| Bolt pattern | 8 on 180 |
| Center bore | 131 |
| Offset | 0 |
| Backspacing | 5 |
Vehicle fitment
No vehicle is named for this wheel. Universal Fit is the entry given, so the owner has to check the pattern, bore, offset and backspacing against the vehicle directly.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Confirm the 131 center bore fits your hub, since a mismatch requires hub-centric rings. Check brake caliper and fender clearance with zero offset before mounting.
What’s included
Check the package contents against your installation before starting, including lug nuts, center caps and valve stems.
