Method Race Wheels 704 Trail Series, 17x8.5 with 5 on 5 Bolt Pattern – Matte Titanium – MR70478550800

Method Race Wheels

Shop Method Race Wheels 17x8.5 5x5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Method Race Wheels 704 Trail Series 17×8.5 in Matte Titanium, part MRWMR70478550800
  • Bolt pattern 5 on 5, 72 center bore, 0 offset, 4.75 backspacing
  • Cast in one piece from 356 aluminum, T6 heat treated
  • Universal fit label with no vehicle named; check hub match before fitting

Description

Overview

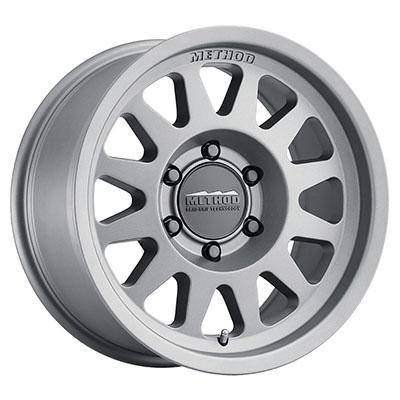

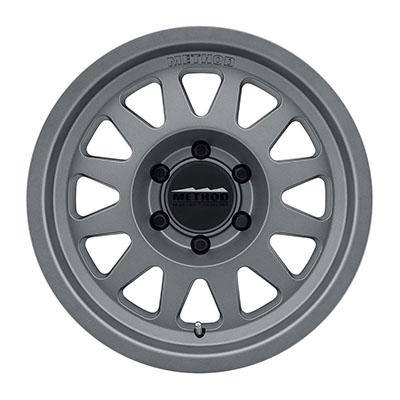

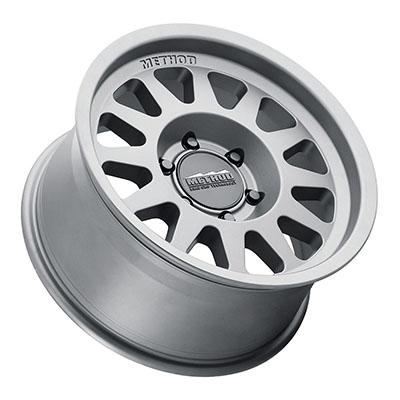

Method’s 704 Trail Series 17×8.5 in Matte Titanium, part number MRWMR70478550800, is a 17-inch wheel with a 5 on 5 bolt pattern, a 72 center bore and zero offset. Method labels it universal fit and does not tie it to a named vehicle, so measure your hub and confirm the bolt pattern before you fit it to any truck or SUV.

Construction is one-piece cast 356 aluminum with T6 heat treatment. The wheel uses patent-pending Bead Grip technology, which is designed to increase grip between the tire bead and the wheel seat when pressures are lowered off road. The 704 is built to reduce weight while adding strength, and it was developed with the off-road racing community in mind.

Key features

  • Patent-pending Bead Grip technology for added tire grip at reduced pressures
  • Inner lip reinforced using a design taken from race wheels

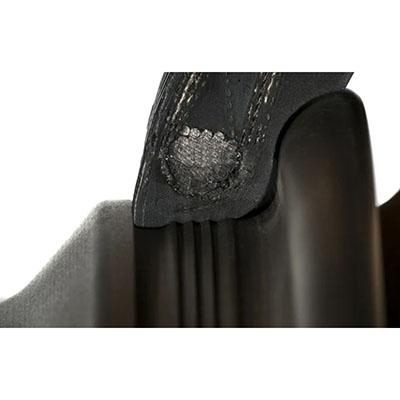

  • Safety humps on both bead seats help hold the tire and resist de-beading
  • One-piece cast 356 aluminum, T6 heat treated
  • Windowed design in a Matte Titanium finish
  • Method’s stated aim is less weight and more strength
  • Finite Element Analysis and multiple field tests were part of development

Trail pressure and bead care

Airing down adds footprint and traction on loose ground, but it also moves the tire bead on the wheel. A bead grip feature helps the tire stay seated at lower settings, though it does not replace careful pressure selection. Start only after the tire is seated at a normal pressure, and lower it in small steps while watching how the sidewall rests against the bead seat.

Trail use puts repeated stress on the bead area, the inner lip and the spokes or windows of a wheel. After a hard landing or rock strike, look at the bead seat and inner lip for bending or cracks, and check tire pressure before the next drive. Regular checks are inexpensive compared with a tire that comes off in the middle of a trail.

  • Check bead seat condition after rock contact
  • Re-inflate to a safe pressure before highway driving
  • Keep a pump or inflator in the vehicle

Specifications

Brand Method Race Wheels
Part number MRWMR70478550800
Series MR704 Bead Grip
Wheel diameter 17 inches
Wheel width 8.5 inches
Bolt pattern 5 on 5
Center bore 72
Offset 0
Backspacing 4.75
Style Windowed
Finish Matte Titanium
Construction Cast 356 aluminum, one piece, T6 heat treated
Fitment label Universal Fit

Vehicle fitment

The universal fit label means this wheel is not matched to any vehicle year, make or model. Fit therefore depends on your own hub: the 5 on 5 bolt pattern, 72 center bore, 0 offset and 4.75 backspacing have to agree with it.

The 72 bore is the opening that centers the wheel on the hub. Offset is the distance from the mounting face to the wheel centerline, and a zero offset places that face on the centerline.

No vehicle generations or models are named, so use your vehicle’s own specifications rather than assuming a match. Confirm your vehicle’s year, model and trim before ordering.

SKU: MRWMR70478550800 Categories: ,

Questions & Answers

What is part number MRWMR70478550800?

It identifies a Method Race Wheels 704 Trail Series wheel measuring 17 by 8.5 inches in Matte Titanium. The bolt pattern is 5 on 5, the center bore is 72 and the offset is 0.

Does this wheel fit a specific vehicle?

The wheel is not written for a particular car or truck. Universal fit is Method's label, so line up the bolt pattern and center bore with your hub before you fit it.

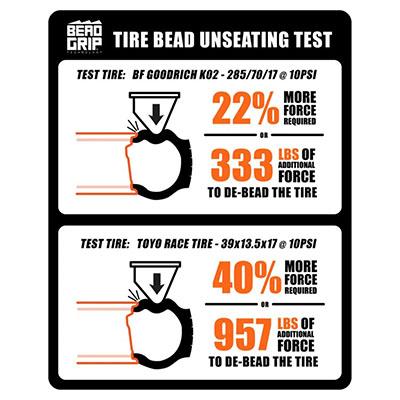

How does Bead Grip work?

Bead Grip is a patent-pending design intended to grip the tire bead seat when pressures are run lower. Safety humps on the inner and outer bead seats are there to stabilize the tire and prevent de-beading.

What is the wheel made of?

It is one-piece cast 356 aluminum with T6 heat treatment, built as a windowed style wheel. The inner lip is reinforced with a design taken from race wheels.

Does a bead grip wheel make airing down safe at any pressure?

No. The bead grip design is meant to help the tire stay seated at lower pressures, but it does not remove the need to choose a pressure suited to the tire, load and terrain. Reinflate to a safe level before driving on pavement.
