Overview

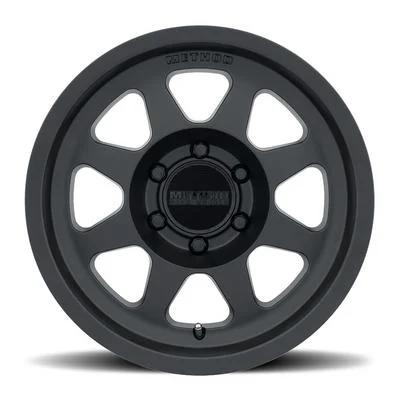

The matte black Method Race Wheels 701 Trail Series 16×8 wheel, part number MRWMR70168060500, is a windowed aluminum off-road wheel with a 6 on 5.5 bolt pattern, offset 0, center bore 106 and backspacing 4.5. It is part of Method’s MR701 Bead Grip series and is intended for trail and off-road use.

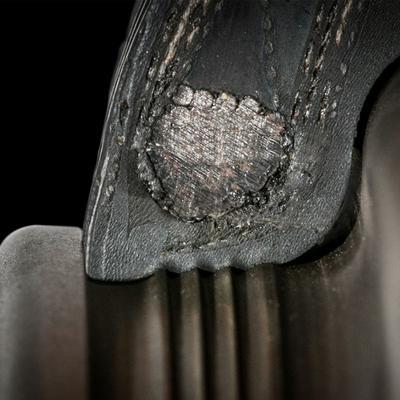

The wheel is made from one-piece cast 356 aluminum that has been T6 heat treated. Bead Grip is a patent pending design that helps the tire bead grip the bead seat at lower air pressures. A reinforced inner lip drawn from race wheel design and safety humps on the inner and outer bead seats help stabilize the tire and resist de-beading. Finite element analysis and field testing were used to trim weight without giving up strength. The line is built for off-road racing first.
Key features
- Cast 356 aluminum, one piece, with T6 heat treatment
- Bead Grip design, which Method calls patent pending
- Reinforced inner lip carried over from race wheel design
- Inner and outer bead seat safety humps to resist de-beading
- Matte black finish with a windowed style
- Engineered with finite element analysis and field tests.
Care and inspection
Trail wheels take repeated impacts from rocks, roots and curbs, so regular inspection is worth building into your routine. Check the bead seats, the inner lip and the area around the windows for cracks, dents or bent edges. Surface damage on a matte finish can be harder to spot than on gloss, so run a hand along the edges as well as looking at them.
Cleaning is simple. Use mild soap and water, avoid harsh abrasives and strong solvents, and dry the surface after mud runs. Recheck mounting hardware after the first few drives on a new wheel, and have a tire shop inspect the bead seat if the tire has come off the rim or been aired down hard.
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR70168060500 |
| Series | 701 Trail Series, MR701 Bead Grip |
| Wheel diameter | 16 inches |
| Wheel width | 8 inches |
| Bolt pattern | 6 on 5.5 |
| Center bore | 106 |
| Offset | 0 |
| Backspacing | 4.5 |
| Style | Windowed |
| Finish | Matte Black |
| Construction | Aluminum, one-piece cast 356, T6 heat treated |
Vehicle fitment
This wheel has no vehicles linked to it, so no make, model or year is confirmed. Its fit depends on the 6 on 5.5 bolt pattern, center bore 106 and offset 0 matching your hub. Compare those figures with your vehicle’s wheel specifications before choosing this wheel.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check brake caliper and suspension clearance with the wheel before a tire goes on. Bead Grip is designed for lower air pressures, so tune pressure to the terrain with that in mind. Because a wheel and tire form a load-bearing assembly, have it inspected for clearance and seating before it sees trail use.
What’s included
The package covers one matte black wheel. Check the package contents against your installation before starting.
Not included: tire, and any mounting hardware your hub requires.
