Method Race Wheels 305 NV, 20x9 with 8 on 170 Bolt Pattern – Matte Black – MR30529087518

Method Race Wheels

$397.00In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 9:50 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Method Race Wheels MR305 NV 20×9 windowed wheel, part number MRWMR30529087518
  • 8 on 170 bolt pattern, 131 center bore, offset 18, backspacing 5.75
  • Matte black aluminum finish, 9 inch width
  • Recorded as Universal Fit with no vehicle named

Description

Overview

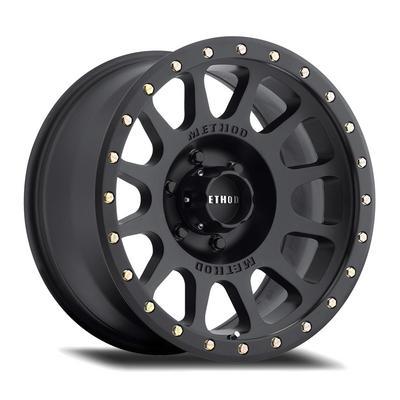

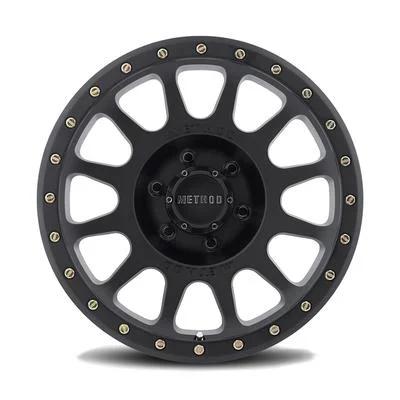

The Method Race Wheels MR305 NV 20×9 is a matte black aluminum wheel with a windowed design, carrying part number MRWMR30529087518 and an 8 on 170 bolt pattern. It measures 20 inches in diameter and 9 inches wide, and the brand presents it as a wheel built for off-road use.

Method Race Wheels was created to serve the off-road racing community with wheels made specifically for that sport. The brand says every wheel is engineered for its intended use and has been through numerous Finite Element Analysis studies and field tests. Its stated aim is to minimize weight while increasing strength, which Method sums up as lighter, stronger and faster.

Key features

  • Windowed MR305 NV design in a matte black finish
  • Aluminum construction, with weight reduction as a stated design goal
  • Finite Element Analysis and field testing used during engineering.
  • 20 inch diameter and 9 inch width
  • 8 on 170 bolt pattern with a 131 center bore
  • Offset 18 and backspacing 5.75

Hub and lug seat checks

Eight-lug patterns like 8 on 170 are found on heavier trucks and off-road builds, where the bolt pattern and center bore need to match the hub precisely. A center bore of 131 should sit on the hub so the wheel centers without relying on the lug nuts alone. If the hub is smaller than the bore, hub-centric rings can address the gap.

Lug seat style is part of the fit. Conical, ball and flat seats each need matching nuts, and mixing styles can loosen the wheel. Check the seat style before tightening, and torque the nuts in a star pattern. Recheck torque after the first short drives, since new wheels can settle slightly.

Brake clearance is worth a close look with any 18 offset on a 20 inch wheel. Compare the caliper, rotor and dust shield positions with the tire width you plan to run, and watch for rubbing during the first turns at full lock.

Specifications

Brand Method Race Wheels
Part number MRWMR30529087518 (title code MR30529087518)
Series MR305 NV
Style Windowed
Finish Black (matte)
Construction Aluminum
Wheel diameter 20 Inches
Wheel width 9 Inches
Bolt pattern 8 on 170
Center bore 131
Offset 18
Backspacing 5.75

Vehicle fitment

This wheel is recorded as Universal Fit with no vehicle attached. For a 20 inch wheel, the 8 on 170 bolt pattern, 131 center bore, 18 offset and 5.75 backspacing decide whether it clears your hub, brakes and suspension, so compare those figures with your vehicle’s specifications before choosing it.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Confirm the lug seat style matches your lug nuts before mounting. An 18 offset on a 20 inch wheel changes how it sits against the brake caliper, so check clearance with the tire you plan to use.

What’s included

Confirm center caps and mounting hardware against your installation before starting.

Not included: A tire must be added separately to mount this wheel.

SKU: MRWMR30529087518 Categories: ,

Questions & Answers

Is the Method Race Wheels MR305 NV 20x9 a universal fit wheel?

Method records it as Universal Fit, so no particular make, model or year is attached. Match the 8 on 170 bolt pattern, 131 center bore, 18 offset and 5.75 backspacing to your vehicle before choosing this size.

What is the part number of this wheel?

The part number is MRWMR30529087518. The title code is MR30529087518 with the MRW prefix left off, so use the full number when comparing sizes.

What size and finish is the MR305 NV?

It is a 20 inch diameter, 9 inch wide wheel in matte black with a windowed style and aluminum construction. Its bolt pattern is 8 on 170 and its center bore is 131.

Does the wheel include tires or lug nuts?

A tire must be bought separately to mount this wheel. Confirm the lug seat style and buy hardware that matches before mounting the wheel.

How often should wheel lug nuts be checked?

Check them after the first few drives and then periodically, especially after tire changes or heavy off-road use. Retorque them to the torque value your vehicle requires, and look for loose or damaged nuts whenever you inspect the wheels.
