Overview

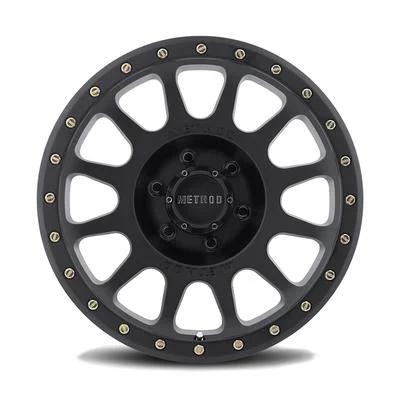

The Method Race Wheels 305 NV 20×9 with a 6 on 135 bolt pattern is a black aluminum off-road wheel, part number MRWMR30529016518. Method Race Wheels engineers its wheels for off-road racing and says each design is validated with finite element analysis and field tests.
The brand’s stated aims for this wheel are less weight and more strength. It is a 9-inch wide windowed design with an 18 offset, 5.75 backspacing and a 94 center bore, so the hub must match the 94 center bore as well as the 6 on 135 pattern.
Key features
- 6 on 135 bolt pattern
- 94 center bore
- Windowed MR305 NV style, 20 by 9 inches
- Offset of 18 with backspacing of 5.75
- Aluminum construction in black
Hub centering and spacers
A hub-centric wheel relies on the center bore to locate it, so a bore that is too large lets the wheel shift and vibrate. Lug-centric designs seat on the lugs instead. When a bore is larger than the hub, hub-centric rings can fill the gap, and they should be chosen to match the hub’s exact diameter.
Spacers change offset and load the wheel studs differently, so any spacer should be planned with the existing offset and backspacing in mind. Wheel and spacer clearance should be checked after any suspension change, and the spacer should match the bolt pattern and bore before the wheel is torqued down.
- Use hub rings sized to the hub, not the wheel
- Recheck torque after the first drive
- Check backspacing against suspension parts
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR30529016518 |
| Series | MR305 NV |
| Style | Windowed |
| Finish | Black |
| Construction | Aluminum |
| Wheel diameter | 20 inches |
| Wheel width | 9 inches |
| Bolt pattern | 6 on 135 |
| Center bore | 94 |
| Offset | 18 |
| Backspacing | 5.75 |
Vehicle fitment
No vehicle is tied to this wheel. It carries a Universal Fit designation, so the 6 on 135 pattern and 94 center bore have to be checked against your hub.
Confirm fit for your vehicle’s year, model and trim before ordering. Measure the 6 on 135 pattern and 94 center bore on your hub before mounting.
Installation notes
Confirm the 94 center bore and 6 on 135 pattern against your hub before mounting. Check the 5.75 backspacing against brake and suspension clearance as well.
What’s included
The wheel is sold as a single item. Tires, lug nuts and center caps are not part of it.
