Overview

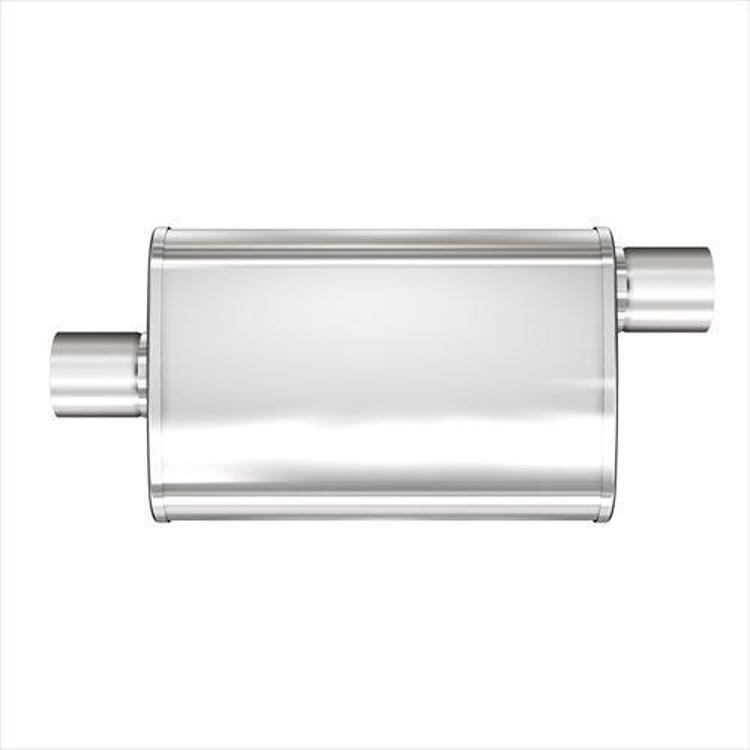

The MagnaFlow 13215 is an XL 3 Chamber chambered muffler with a 2.25-inch offset inlet and a centered outlet of the same diameter. It has a large diameter perforated core and baffles with calibrated tuning gate openings that reduce unwanted resonance. It is universal fit, with no specific vehicle named.
The tuning gate openings let portions of the sound waves pass through, which shapes the tone. The body is made of stainless steel. Confirm the material before installing the muffler.
Key features
- Chambered design with internal sound baffles
- Large diameter perforated core
- Calibrated tuning gate openings
- 2.25-inch tube size
- Offset inlet with centered outlet
Choosing a chambered muffler
A chambered muffler routes exhaust through internal baffles that cancel some frequencies and shape the overall tone. Compared with a straight-through can, a chambered design usually produces a deeper, more muted sound at cruising speeds, though the result depends on the engine and the rest of the exhaust. Because the chambers take up internal space, the body is larger and needs more clearance under the vehicle.
Before buying, measure the existing pipe diameter and note where the inlet and outlet sit. An offset inlet can change how the pipe runs, so plan the route before tightening any clamps. Many owners replace the front pipe or the hangers at the same time to get clean alignment and to avoid stress on the new joints.
- Match tube diameter at every joint
- Check clearance to the axle, frame and fuel lines
- Replace stretched or cracked hangers during the install
Specifications
| Brand | MagnaFlow Exhaust |
|---|---|
| Part number | 13215 |
| UPC | 841380001467 |
| Series | XL 3 Chamber |
| Muffler type | Chambered |
| Material | Stainless steel |
| Tube size, inlet and outlet | 2.25 inches and 2.25 inches |
| Inlet location | Offset |
| Outlet location | Centered |
Vehicle fitment
Universal fit, with no year, make, model or trim attached, so this muffler is not vehicle-specific.
Check that the 2.25-inch tubing and offset inlet fit your exhaust before installation.
What’s included
Check the package contents against your installation before starting.
Not included: Plan for pipe and connecting parts, and have them ready before starting the install.
