Overview

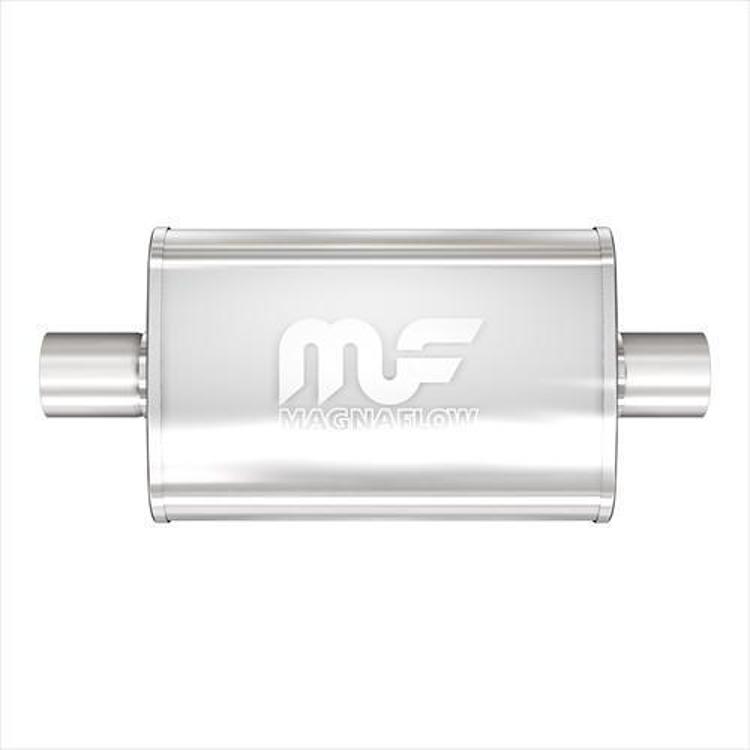

The MagnaFlow 11245 is a satin stainless steel straight-through muffler with 2.25-inch centered inlet and outlet tubes.
Lap-joint welding joins the stainless case, and a perforated core carries the exhaust straight through. MagnaFlow wraps the core in stainless mesh and packs the case tightly with acoustical fiber fill. The product carries a lifetime warranty.
Key features
- 2.25-inch centered inlet and outlet
- Lap-joint welded stainless steel construction
- Perforated straight-through core
- Stainless mesh wrap
- Tightly packed acoustical fiber fill
- Lifetime warranty
Caring for satin stainless
Satin stainless steel has a brushed look that hides minor marks, but it is still a metal that needs routine care. Rinse road salt and grime off the case when you wash the vehicle, and avoid abrasive pads that can leave scratches. The finish is most useful as a low-maintenance surface, not a substitute for inspecting the welds and joints underneath.
For a straight-through layout, the main risks are loose connections and worn mounts rather than the core itself. Tighten clamps after the first few drives, check hangers for stretching or cracks, and watch for soot near the joints. If a new tone or buzz appears, look for a leak at the connections before assuming the muffler is at fault.
Specifications
| Brand | MagnaFlow Exhaust |
|---|---|
| Part number | 11245 |
| UPC | 841380000552 |
| Muffler type | Straight through |
| Inlet location | Centered |
| Outlet location | Centered |
| Tube size (inlet/outlet) | 2.25 inches / 2.25 inches |
| Material | Stainless steel |
| Finish | Satin |
| Packing | Acoustical fiber fill |
Vehicle fitment
It is a universal fit, and no vehicle, year or chassis is named. A 2.25-inch tube has to match your exhaust exactly, so measure the pipe and confirm fit for your vehicle’s year, model and trim before ordering.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
Mounting hardware needs to be sourced separately if the installation calls for it.
