Overview

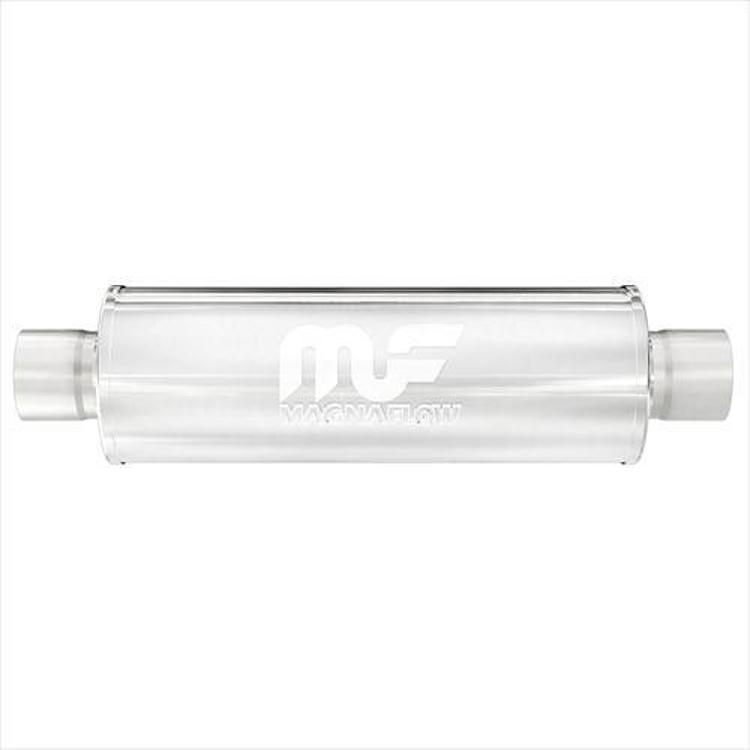

The MagnaFlow 10416 is a satin stainless steel muffler with 2.5-inch inlet and outlet tubes and a straight-through core. The case is lap-joint welded for a rugged build suited to demanding use.
Inside, a perforated stainless steel core runs straight through, wrapped in stainless mesh and filled with densely packed acoustical fiber. The dense packing is designed to help preserve the tone over time. It carries a lifetime warranty.
Key features
- Satin stainless steel finish
- Lap-joint welded construction
- Perforated straight-through stainless core
- Stainless mesh wrap
- Densely packed acoustical fiber fill
- Lifetime warranty
Choosing a muffler for your pipe
A muffler is the last major restriction in a cat-back or axle-back exhaust, so its size and layout affect both sound and flow. Before buying one, measure the pipe it will connect to. Tube diameter, the position of the inlet and outlet, and the length of the case all need to work with the pipe and hangers already on the vehicle. A mismatch in tube size often shows up as leaks at the clamps or as a strained joint that wears out early.
Straight-through designs keep the path open, which gives a louder, more direct tone. If quieter operation matters more, look at how the rest of the system is built, since a resonator or a different muffler type may suit better. Stainless steel resists rust well in wet or salted climates, but it still needs a periodic look at the welds and clamps. Tap the case gently and listen for rattles, and check for soot lines that signal a leak.
Specifications
| Brand | MagnaFlow Exhaust |
|---|---|
| Part number | 10416 |
| UPC | 841380000088 |
| Muffler type | Straight through |
| Inlet location | Centered |
| Outlet location | Centered |
| Tube size (inlet/outlet) | 2.5 inches / 2.5 inches |
| Material | Stainless steel |
| Finish | Satin |
| Packing | Acoustical fiber fill |
Vehicle fitment
It is a universal fit with no vehicle named. Confirm that the 2.5-inch tubes and centered inlet and outlet match your existing exhaust, and confirm fit for your vehicle’s year, model and trim before ordering.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
Check the package contents against your installation before starting, especially if you need clamps or hangers.
