Overview

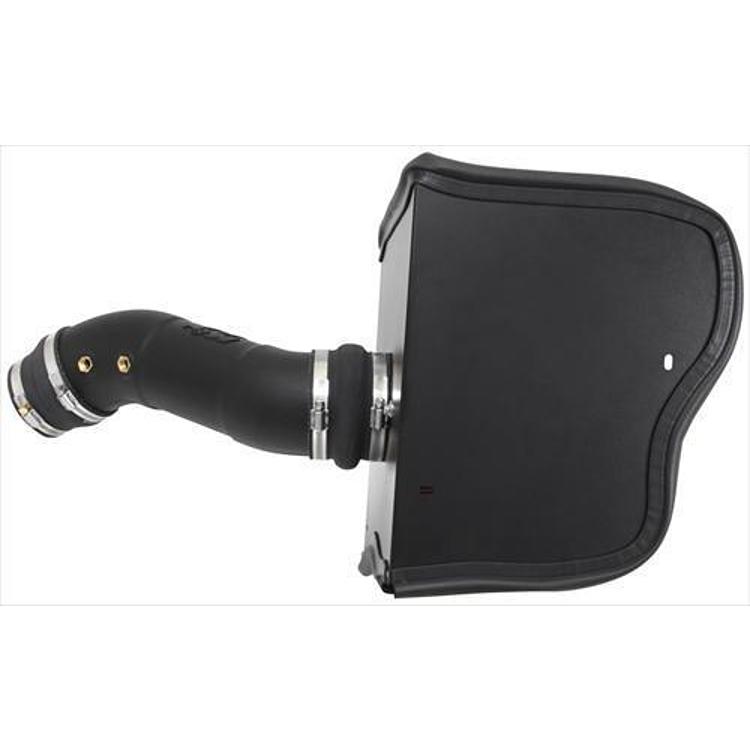

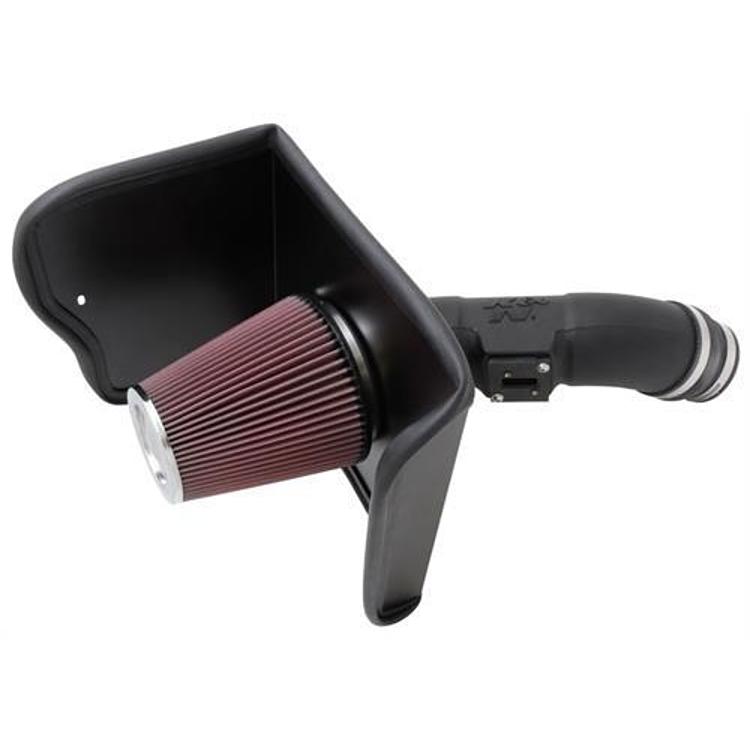

The K&N 63-9036 is a 63 Series Aircharger intake kit for the 2012-2018 Toyota Tundra in Base, SR, SR5, Limited, Platinum, 1794 Edition and TRD Pro trims. It replaces the factory air filter and air intake housing. A custom molded high density polyethylene tube carries air from a chrome topped high-flow filter to the throttle body.
The kit smooths and straightens airflow to reduce intake restriction, allowing the engine to take in more air than the factory filter assembly. More air brings more usable power and acceleration across the RPM range, and the design carries a guaranteed power gain. The heat shield directs cooler, denser air through the tube.
Key features
- Replaces the factory air filter and air intake housing in listed Tundra trims
- Free-flowing, custom molded high density polyethylene tube
- Chrome topped K&N high-flow air filter
- Heat shield that directs cooler, denser air to the throttle body
- Oversized filter that can be used for up to 100,000 miles before servicing, depending on driving conditions
- Cold air intake type with partial enclosure housing and oil-type filter
- Inlet tube included
- Backed by the K&N Million Mile Limited Warranty
- Not legal for use in California or other states adopting California emission standards
Why the heat shield matters
A heat shield keeps the filter and tube from drawing in hot air from around the engine. Cooler intake air is denser, which is why many intake kits include one. Position the shield so it does not rub the tube or block nearby components, and check its mounting bolts after the first few drives.
The oversized filter needs regular attention. Service it at the interval set by driving conditions, and clean it more often on dusty roads or after towing. Inspect the chrome topped filter frame for dents, and make sure the seal sits square in the housing before reinstalling it.
- Check heat shield bolts after the first drives
- Keep the shield clear of the hood and wiring
- Replace a bent or cracked filter frame
Specifications
| Brand | K&N Filter |
|---|---|
| Product line | K&N 63 Series Aircharger Kit |
| Part number | 63-9036 |
| UPC | 24844314086 |
| Intake type | Cold air |
| Filter housing type | Partial enclosure |
| Filter type | Oil |
| Inlet tube | Included |
| Filter service interval | Up to 100,000 miles, depending on driving conditions |
| Filter finish | Chrome topped |
| Warranty | Million Mile Limited Warranty |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2012-2018 Toyota Tundra in 1794 Edition, Base, Limited, Platinum, SR, SR5 and TRD Pro trims. It replaces the air filter in some of those Tundra models, so match your truck’s year and trim before ordering.
Tundra model years before 2012 and after 2018 are not on the list, and other Toyota trucks are not included. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The tools named for this kit are two screwdrivers, a socket set and several wrenches. Remove the stock air box first, then fit the tube and the heat shield in its place.
What’s included
The inlet tube, the chrome topped high-flow filter and the heat shield are included. Check the package contents against your installation before starting.
