Kentrol Rust Buster CJ Rear Shackle Mount – RB0001L

Kentrol

Shop Jeep CJ7 Frame Parts on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Driver side rear shackle mount frame repair section
  • Made from .125-inch cold rolled steel, ships raw and uncoated
  • Welding required, fits 1976 to 1983 CJ5 and 1976 to 1986 CJ7

Description

Overview

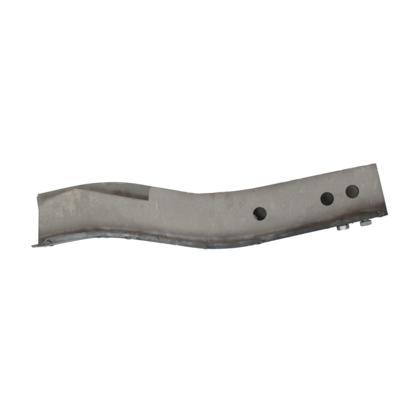

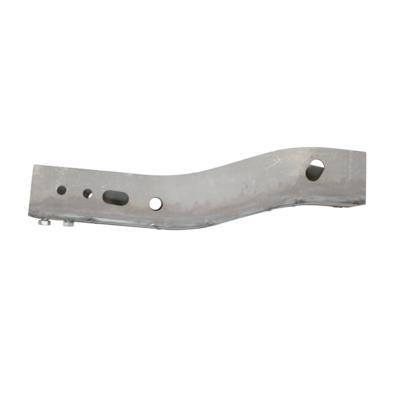

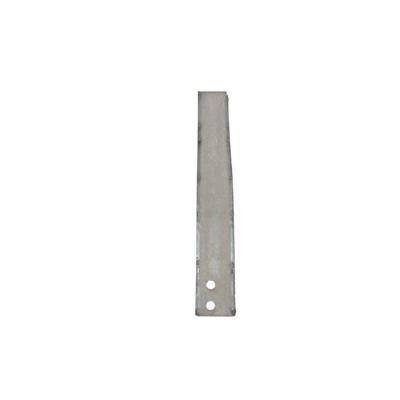

The Kentrol RB0001L is a driver side rear shackle mount repair section for the rear of the frame on CJ models. It slides onto the frame and includes the factory-needed holes and mounting locations.

The mount is made from .125-inch cold rolled steel and ships raw and uncoated. Welding is required to install it.

Key features

  • Driver side rear position
  • EZ slip design slides onto the frame
  • Includes factory-needed holes and mounting locations
  • Made from .125-inch cold rolled steel
  • Ships raw and uncoated

Welding and corrosion control

Shackle mounts take the load of the leaf spring, so a crack or rust-through at the mount can change how the rear axle sits and how the vehicle tracks. Before welding, remove rust and paint from the frame and the mount edges, and check the surrounding metal for thin spots. Welding on a frame should be done by someone experienced with frame work.

Raw steel starts to rust quickly once exposed to moisture, so coat the mount and welds promptly after installation. Shield fuel lines, brake lines and wiring near the work area, and let the welds cool before applying coating. Coating applied over damp or dirty steel will fail early.

  • Grind the frame to bright metal before fitting
  • Use a weld-through primer where suited

Specifications

Brand Kentrol
Part number RB0001L
Position Driver side rear
Material .125-inch cold rolled steel
Finish Raw, uncoated
Design EZ slip
Installation Welding required
Fitment Direct fit

Vehicle fitment

It fits the 1976 to 1983 Jeep CJ5 (Base, Golden Eagle, Laredo, Limited, Renegade) and the 1976 to 1986 Jeep CJ7 (Base, Golden Eagle, Golden Hawk, Laredo, Limited, Renegade).

It does not fit other CJ years or Wrangler YJ and TJ models. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Welding is required, so this mount suits a shop or fabricator experienced with frame work. Because it ships raw and uncoated, the steel needs protective coating after fitting, and wiring and fuel lines near the weld area should be shielded.

What’s included

Confirm whether fasteners or welding materials are needed for your installation before starting.

Not included: Welding equipment and protective coating are needed to complete the installation.

SKU: KENRB0001L Categories: , ,

Fitment

VehicleYearsTrims
Jeep CJ51976–1983Base, Golden Eagle, Laredo, Limited, Renegade
Jeep CJ71976–1986Base, Golden Eagle, Golden Hawk, Laredo, Limited, Renegade

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Kentrol RB0001L fit both CJ5 and CJ7?

Yes, the manufacturer list includes both. It covers the 1976 to 1983 CJ5 and the 1976 to 1986 CJ7, with trims such as Base, Golden Eagle, Laredo and Renegade named in the list.

Does this part need welding?

Yes. Welding is required to install it. It ships raw and uncoated, so protective coating is needed after it is fitted to the frame.

Which side of the CJ frame does it go on?

It is the driver side rear shackle mount, covering the rear frame area on the driver side only. It is for the driver side only.

Can a shackle mount be fitted without welding?

No. This mount is designed to be welded in place, so a bolt-on installation is not the intended method. If welding is not possible, consult an experienced fabricator about alternatives before installing.
