Overview
The KC HiLites 3 Inch C-Series C3 LED System, model 332, is a pair of 3 inch square 12 W LED lights with a clear lens and a 30 degree flood beam, universal fit. The lights use CREE LEDs with 1,080 raw lumens each and a die-cast aluminum housing, and the system ships with the brackets and wiring harness.
Key features
- 30 degree flood optics for wide coverage
- 1,080 raw lumens per light
- On-board thermal management for light efficiency
- Impact resistant die-cast aluminum housing
- Clear Lexan lens
- Brackets, hardware and harness included
Choosing a mounting spot
Flood lights spread light across a wide area, which suits low-speed trail driving, camp setup and close work where side visibility matters more than distance. Placement shapes how well they perform. Mounting them low on a bumper or grille keeps the beam near the ground, while higher positions reach farther down the trail but can glare off fog and dust. Before drilling anything, hold the lights in place and check that the wiring can reach the battery without rubbing on moving parts.
Aiming matters as much as position. Set the lights level, then adjust them after a short test run at night, since wide patterns can light the sides of the trail more than the path ahead. Mud on the lens reduces output, so a quick wipe before each outing keeps the beam consistent over a full day on the trail.
- Check bracket clearance against the grille and bumper
- Route the harness away from hot exhaust and sharp edges
- Re-aim after any change to suspension height
- Keep the lens clean before night runs
Specifications
| Brand | KC HiLites |
|---|---|
| Light series | C-Series C3, 3 inch |
| Light shape | Square |
| Lens color | Clear |
| Bulb type | LED, 12 W per light (CREE) |
| Raw lumens | 1,080 lm per light |
| Beam pattern | Flood, 30 degree optics |
| Housing | Die-cast aluminum |
| Lens | Lexan |
| Mounting | Bracket kit with hardware |
| Included | Pair of C3 lights, deluxe wiring harness, brackets |
Vehicle fitment
It is a universal fit system, so it is not built for one vehicle. Confirm the mount location and clearance on your vehicle before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The brackets and harness are included, so no custom fabrication is needed. Run the harness through a fused relay, and check local rules on auxiliary lights before using them on public roads.
What’s included

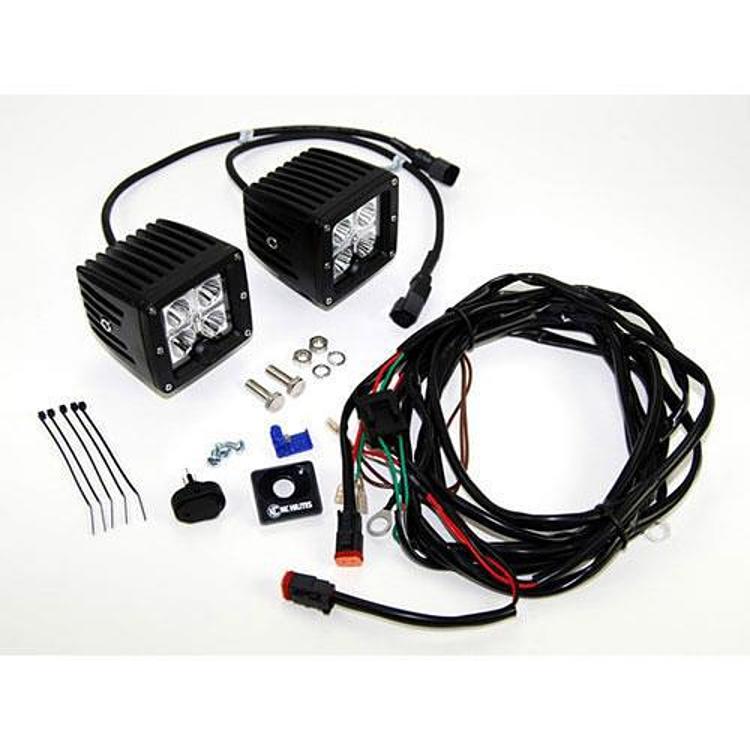

A pair of 3 inch C3 LED flood lights with clear lenses, a deluxe wiring harness and die-cast brackets with hardware.
