Overview

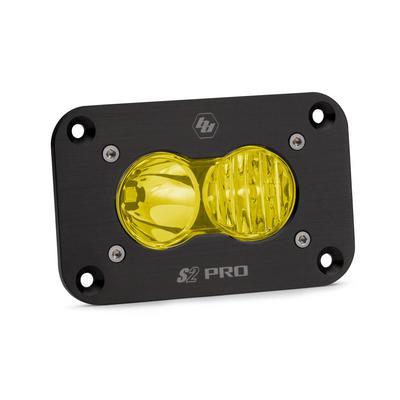

The Baja Designs S2 Pro LED Driving/Combo Flush Mount Light in amber, part number 481013, is an LED auxiliary light for flush mounting on a vehicle. It produces 2,150 lumens from a housing about 3 inches by 2 inches and draws 21 watts, so it can be mounted in places a larger light would not fit. It has a driving/combo beam.
The S2 Pro has a billet machined aluminum bezel and a hard-coated polycarbonate front lens. It is IP69K waterproof, IK10 impact rated, and tested to MIL-STD-810G. It includes built-in overvoltage protection and carries a limited lifetime warranty.
Baja Designs rates the LED life expectancy at 49,930 hours. The 1.75-amp draw is low for the light output, which matters when a single vehicle runs several auxiliary lights off one circuit.
Key features
- Amber lens for a warm-colored driving and combo beam
- 2,150 lumens from a compact flush-mount housing
- Billet machined aluminum bezel
- IP69K waterproof, submersible to 9 feet.
- IK10 impact rated and tested to MIL-STD-810G
- Built-in overvoltage protection
Flush mounts and wiring care
A flush-mounted light sits within the panel, so the surrounding surface and the seal around the housing do most of the work of keeping water and dirt out. Before cutting, check what is behind the panel, including brackets, fuel lines and wiring, and plan a route for the cable that avoids moving parts and heat sources.
Use a fused circuit sized for the light’s draw and a switch that can handle the load. Inspect the seal and bezel after washing or off-road use, and tighten the mounting fasteners if they loosen. A clean lens keeps the beam pattern even and the light easier to aim.
- Check behind the panel before cutting
- Inspect the seal after heavy washing
- Keep the lens clean for an even beam
Specifications
| Brand | Baja Designs |
|---|---|
| Part number | 481013 |
| Series | S2 Pro |
| Mounting | Flush |
| Lens color | Amber |
| Lens material | Hard-coated polycarbonate |
| Bezel | Billet machined aluminum |
| Light shape | Square |
| Beam pattern | Driving combo |
| Lumens | 2,150 |
| Watts | 21 |
| Amp draw | 1.75 A |
| LED life expectancy | 49,930 hours |
| Waterproof rating | IP69K |
| Impact rating | IK10 |
Vehicle fitment
The S2 Pro is a universal fit, so it is not made for one vehicle. A flush-mount light needs a clean, flat opening in the bumper or body panel, so check that the panel can take the housing before cutting.
Installation notes
A flush mount means cutting a hole for the housing. Confirm the panel thickness and the wire route first, and use a fused circuit sized to the 1.75-amp draw. Check local rules on driving lights before using the light on a road vehicle.
What’s included
Only the single light is described, with no wiring harness or flush-mount trim listed. Confirm the contents before fitting.
