Overview

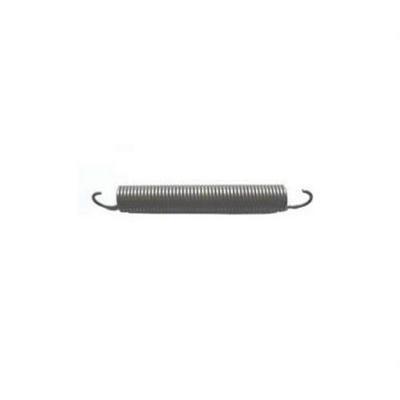

The Jeep parking brake shoe return rear spring, part number JEP4383541, is a factory style replacement for the rear parking brake shoe return spring on 2007–2018 Jeep Wrangler (JK) models. It fits at the rear and is a direct fit.
The list runs through the two-door Rubicon, Sahara, Sport, Sport S and X trims, plus the matching Unlimited four-door trims.
Key features
- Factory style replacement part
- Parking brake shoe return spring for the rear
- Fits 2007–2018 Wrangler (JK) two-door and four-door trims
- Part number JEP4383541
Before you replace the spring
A return spring pulls the brake shoe back from the drum once the parking brake is released. When the spring weakens or breaks, the shoe can drag, leaving the rear brake partly applied. Dragging brakes often cause heat, a burning smell and uneven wear on the drum or shoe lining.
Remove the old spring with the proper spring tool, and note how it hooks to each shoe before disconnecting it. Fit the new spring the same way, then check that the shoe returns fully when the lever is released. Test the parking brake on a gentle slope after the work is done.
- Note spring hook positions before removal
- Check the shoe for a smooth return
- Inspect the drum for heat marks
Specifications
| Brand | Jeep |
|---|---|
| Part number | JEP4383541 |
| Position | Rear |
| Application | Parking brake shoe return |
| Style | Factory style replacement |
Vehicle fitment
The manufacturer fitment list shows these 2007–2018 Jeep Wrangler (JK) trims:
- Two-door: 70th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S, X
- Unlimited four-door: 70th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S, X
Wrangler models from other years and other Jeep models are not on this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Return springs are under tension, so release them slowly and wear eye protection during replacement.
