Overview

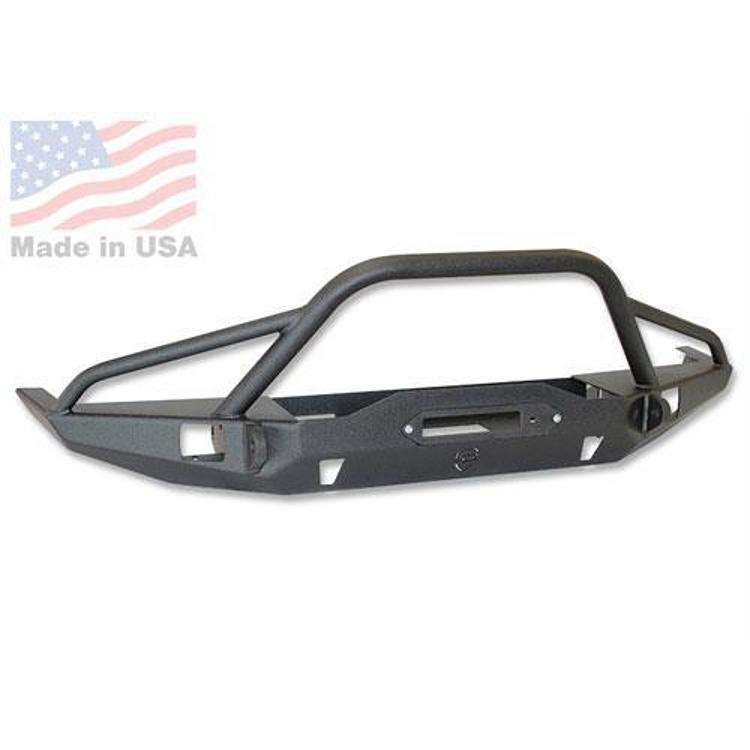

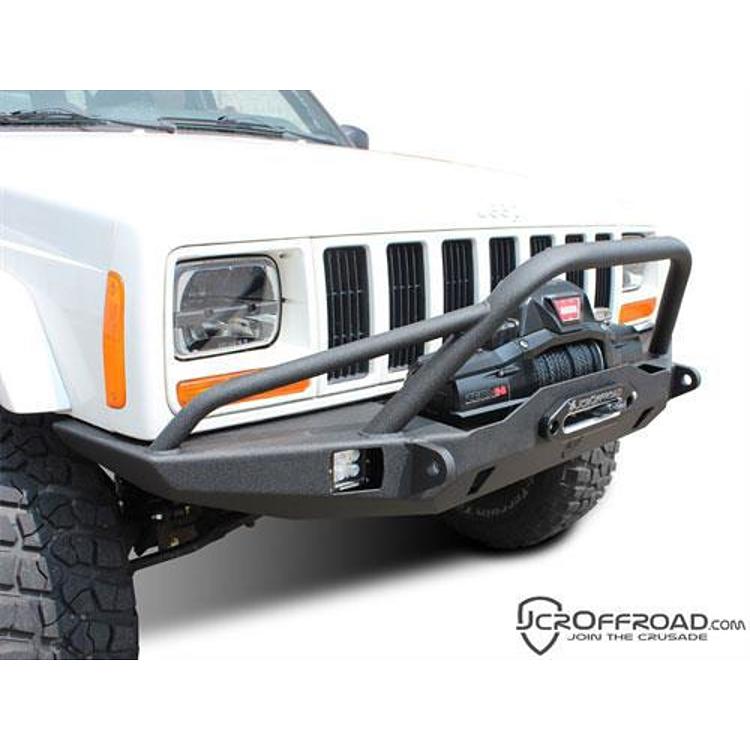

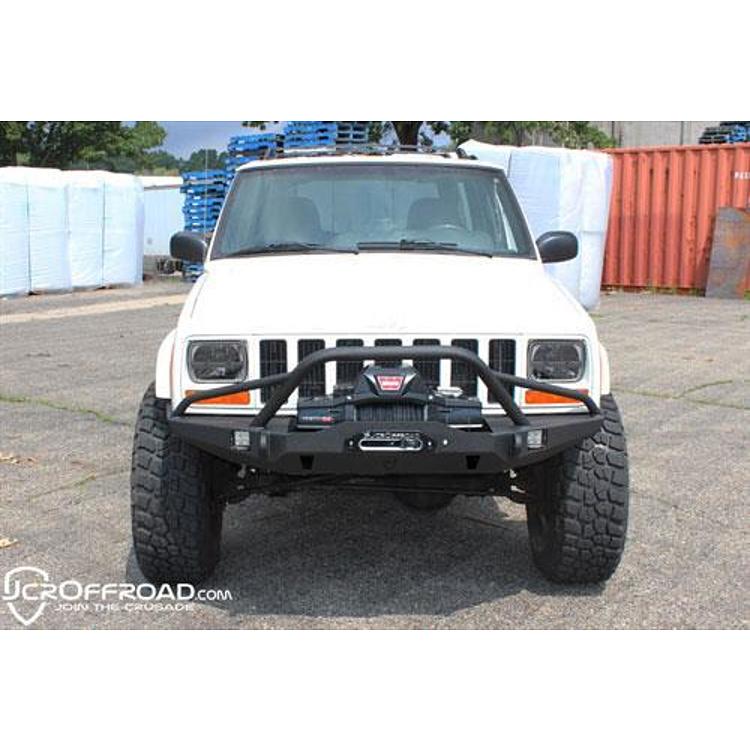

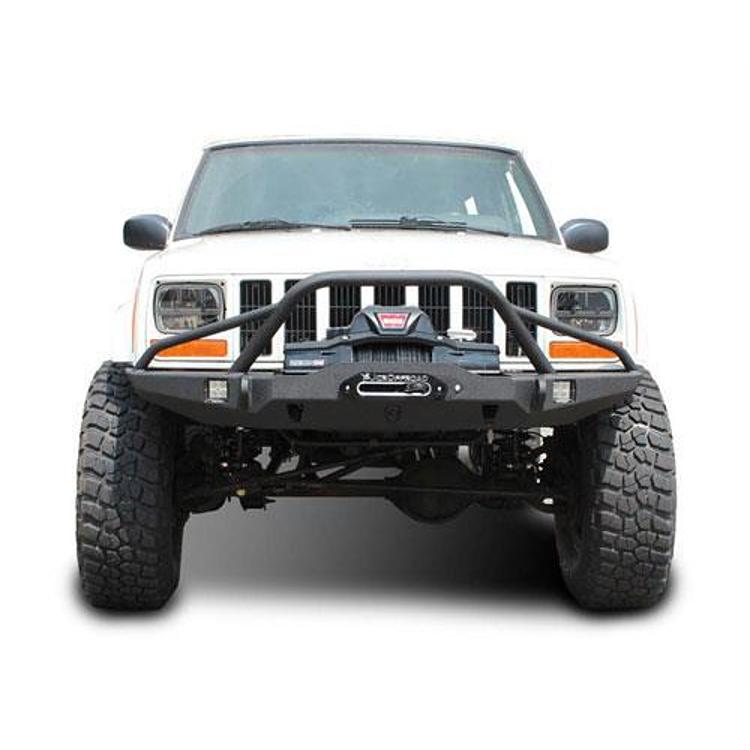

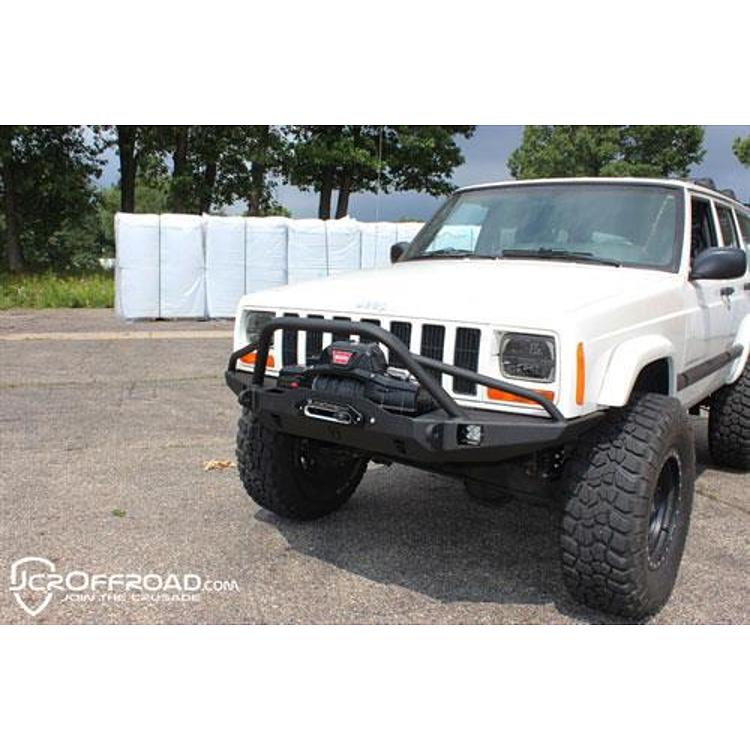

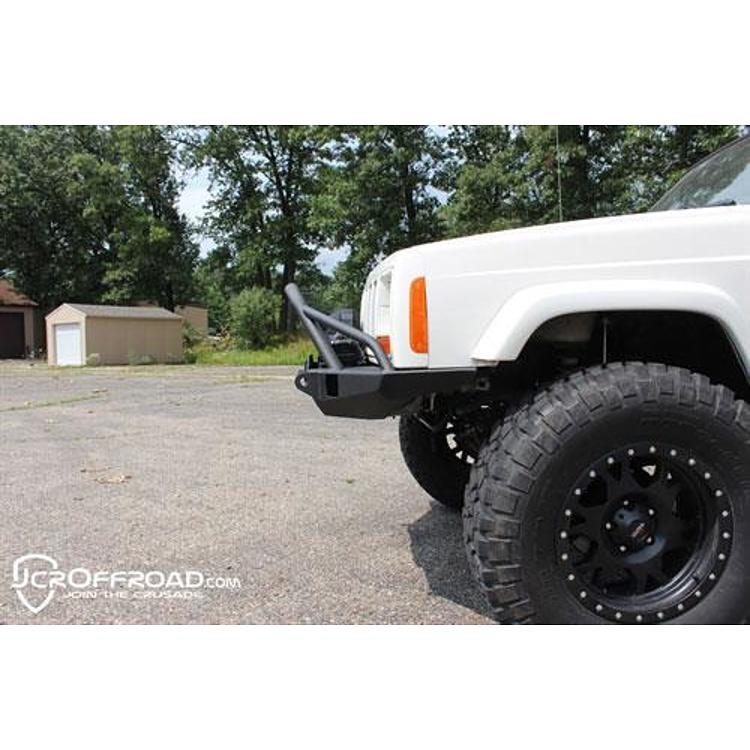

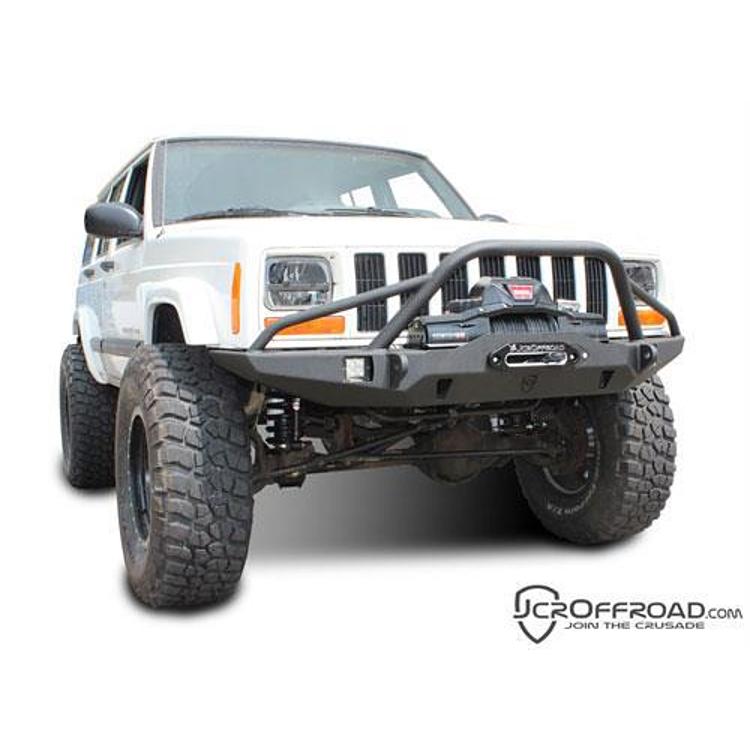

The JcrOffroad Vanguard PreRunner Front Winch Bumper, part number XJFV-T-PC, is a full-width steel front bumper for the 1984–2001 Jeep Cherokee (XJ). It replaces the factory bumper with a bolt-on application and gives the Cherokee a more modern look.
The bumper is built from 3/16 inch plate that is CNC cut and CNC formed in the USA. It comes with a winch mount, a Uniframe Reinforcement Kit and steering spacer, two thick D-ring tabs and PreRunner-style tube work with two auxiliary light mounting provisions on the hoop.
The winch mount uses the 10 inch x 4.5 inch bottom foot profile and suits most winches up to 9,500 lb, including the Warn Powerplant and Zeon. The bumper is built for approach angle and overall clearance.
Key features
- PreRunner-style tube work with two auxiliary light mounting provisions
- Full-width design
- Built from 3/16 inch plate, CNC cut and CNC formed in the USA
- Factory replacement with bolt-on application
- Recessed winch mount for most winches up to 9,500 lb
- Uniframe Reinforcement Kit and steering spacer included
- Full front unibody tie-in brackets and a pair of front bulkhead reinforcement mounts
- Two thick D-ring tabs and built-in Hi-Lift jack points
- Lifetime guarantee from JcrOffroad
Front bumper tie-ins and clearance
A full front bumper depends on its tie-in brackets and bulkhead mounts to carry load into the unibody. Before a trail trip, check that each bracket sits flat and that every bolt is seated. Movement at a tie-in can crack paint, stretch holes and loosen the bumper over time.
A PreRunner-style bumper changes the front profile, so check clearance to the radiator, grille and hood latch. Auxiliary light mounts on the hoop should be aimed after installation and kept clear of the hood’s closing path. Steering spacers and bulkhead reinforcement also affect steering alignment, so check the steering after install.
A winch changes the load path on a front bumper, so a heavier winch benefits from checked mounts and a good cable path. Look at the winch mount for cracks after each recovery.
Specifications
| Brand | JcrOffroad |
|---|---|
| Part number | XJFV-T-PC |
| UPC | 780456972419 |
| Product type | Front winch bumper |
| Style | Vanguard PreRunner, full width |
| Material | Steel, 3/16 inch plate |
| Finish | Black powder coat |
| Shackle tabs | 2, each 3/4 inch thick |
| Winch mounting profile | 10 inch x 4.5 inch bottom foot |
| Winch capacity noted | Most winches up to 9,500 lb |
| Winch mount | Included |
| D-ring mount | Included |
| Light mounts | Included, two on the hoop; accepts 3×3 cube lights |
| Fit type | Direct fit |
| Origin | CNC cut and formed in the USA |
| Guarantee | Lifetime guarantee from JcrOffroad. |
Vehicle fitment
It fits the 1984–2001 Jeep Cherokee (XJ), including the Base, Briarwood, Chief, Classic, Country, Laredo, Limited, Pioneer, SE and Sport trims.
It is made for the XJ Cherokee. Make sure the year, model and trim match your vehicle before buying.
Installation notes
JcrOffroad says all needed mounting brackets and hardware are included, among them the unibody tie-in brackets, the steering spacer and a pair of front bulkhead reinforcement mounts. The bumper is a bolt-on factory replacement, and you supply the winch.
What’s included
The bumper with PreRunner tube work, winch mount, Uniframe Reinforcement Kit, steering spacer, two D-ring tabs, unibody tie-in brackets, bulkhead reinforcement mounts and mounting hardware.
Not included: the winch.
