JcrOffroad Crusader Mid Width Front Winch Bumper (Black) – SWBFCTJ-T-P

JcrOffroad

Shop Jeep Wrangler TJ Front Bumpers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Crusader mid-width front winch bumper for the 1997–2006 Jeep Wrangler (TJ) and 2004–2006 Wrangler Unlimited (LJ)
  • 3/16 inch black powder-coated steel with recessed winch mount
  • Accepts aftermarket 3×3 cube LED lights
  • Includes two 3/4 inch thick shackle tabs

Description

Overview

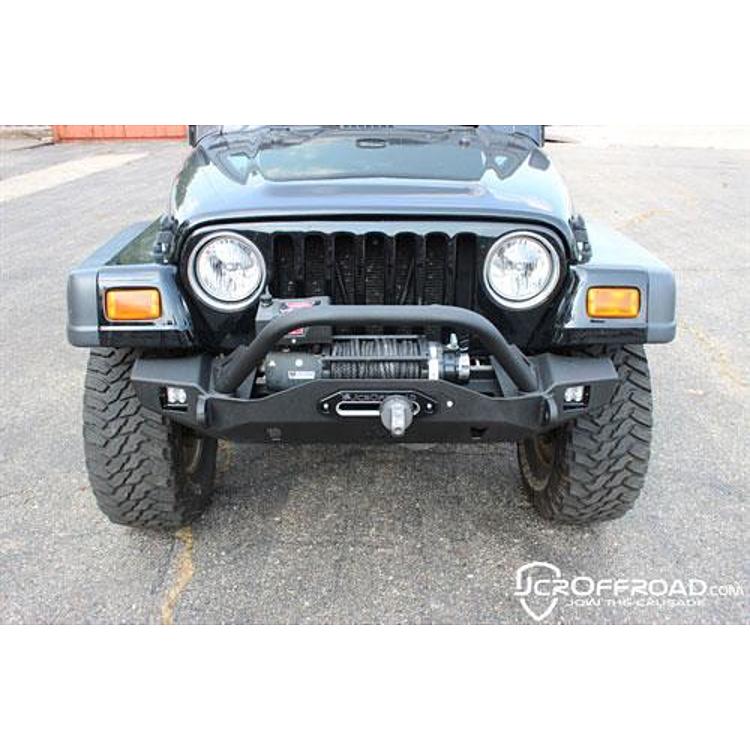

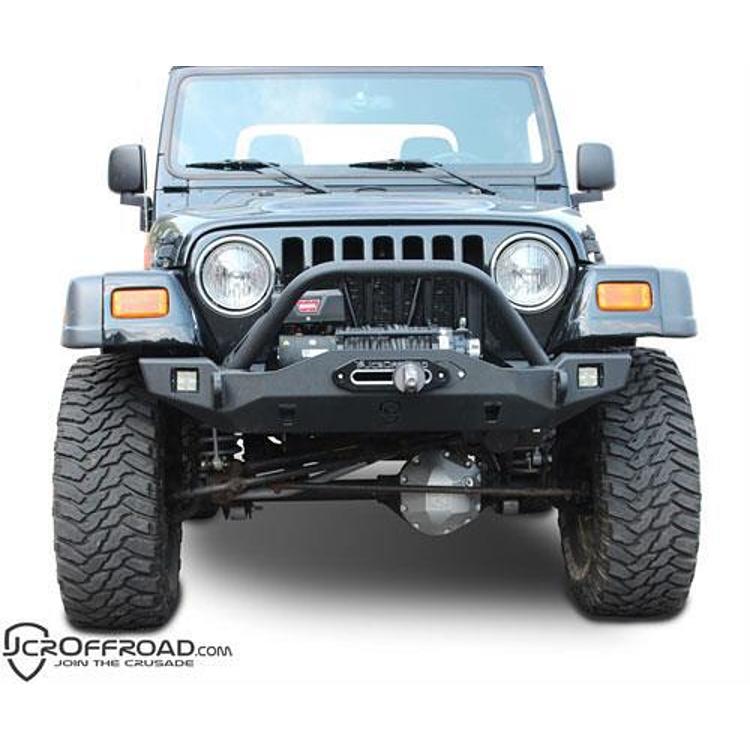

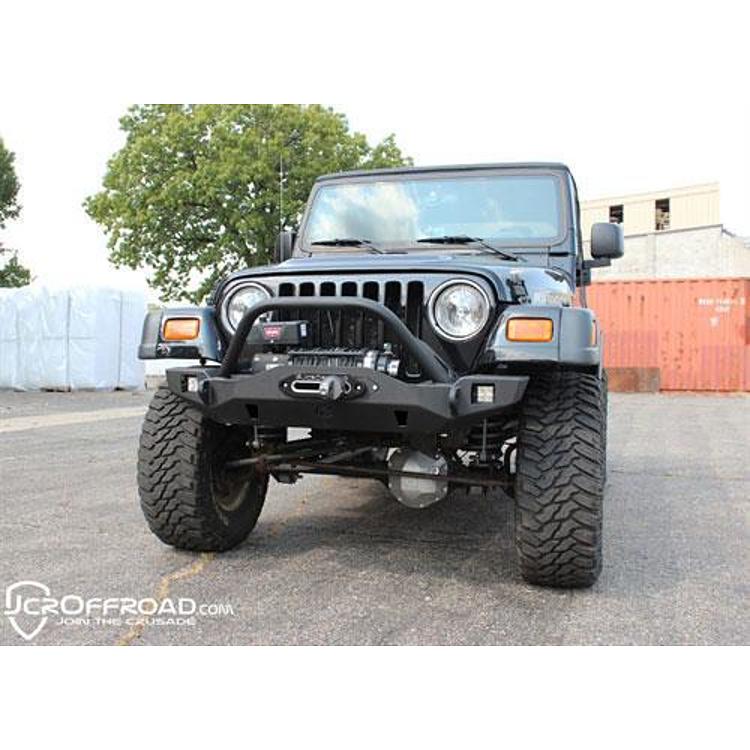

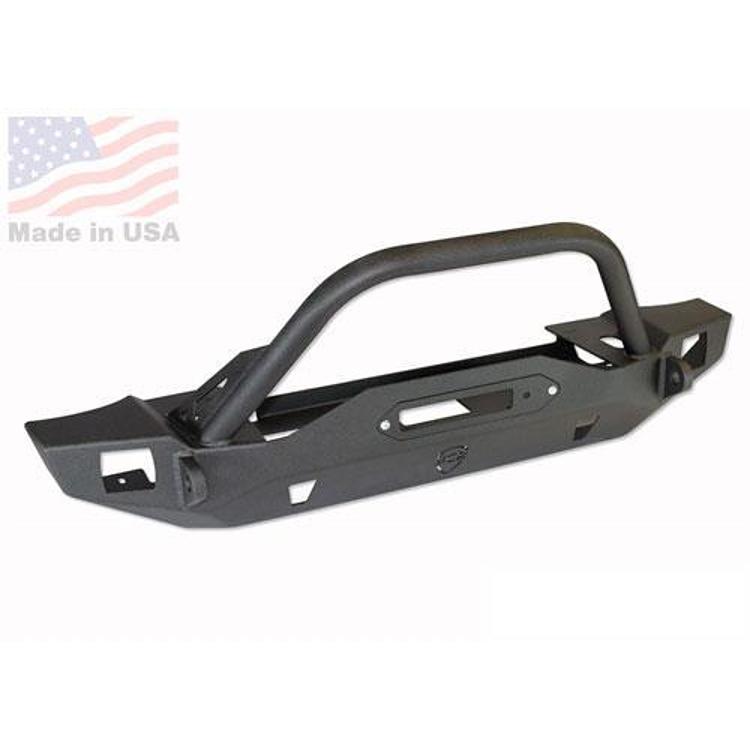

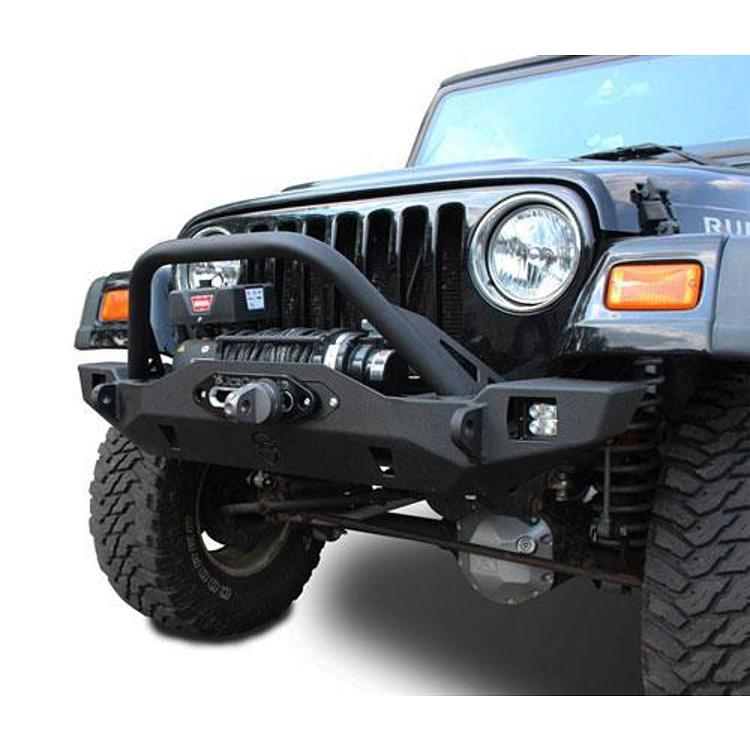

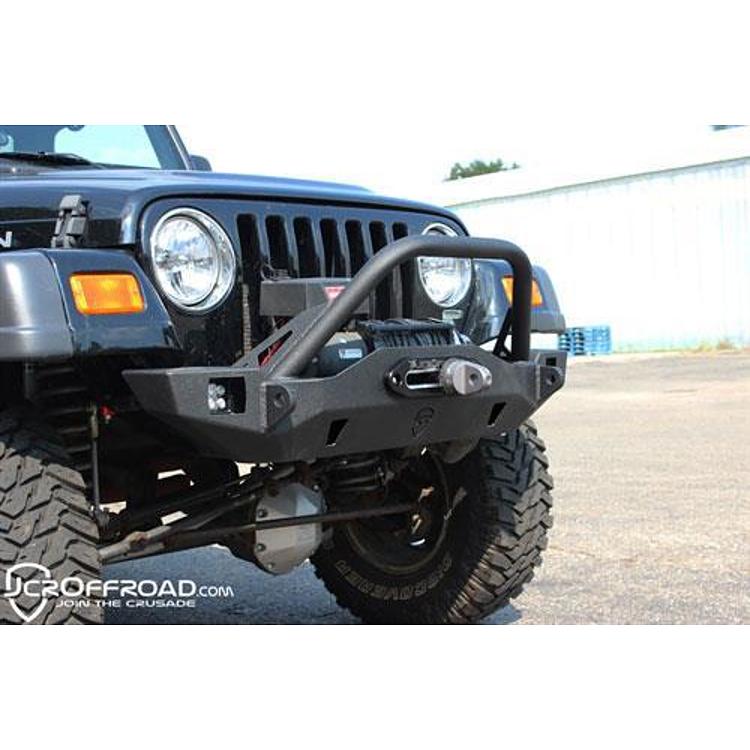

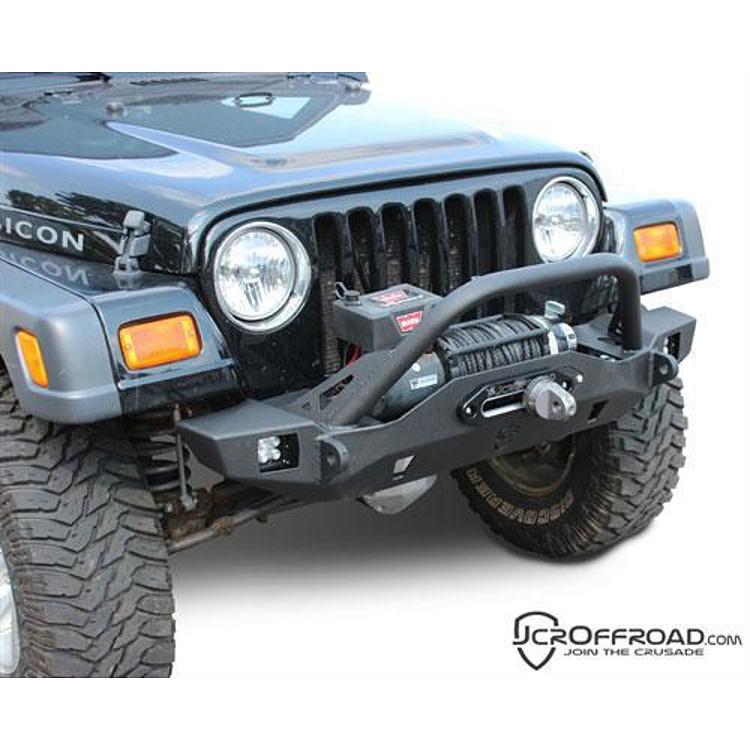

The JcrOffroad Crusader Mid Width Front Winch Bumper, part number SWBFCTJ-T-P, is a black powder-coated steel winch bumper for the 1997–2006 Jeep Wrangler (TJ) and the 2004–2006 Wrangler Unlimited (LJ). JcrOffroad designed the Crusader for drivers who want improved clearance but still want some fender protection.

The bumper is CNC cut and formed from 3/16 inch steel with two 3/4 inch thick shackle tabs and a recessed winch mount. It accepts aftermarket 3×3 cube LED lights and has built-in Hi-Lift jack points.

Key features

  • Mid width: improved clearance with fender protection
  • CNC cut and formed from 3/16 inch steel
  • Two 3/4 inch thick shackle tabs
  • Recessed winch mount, 10 inch x 4.5 inch bottom foot profile
  • Compatible with the Warn Zeon and Warn Powerplant winches
  • Accepts aftermarket 3×3 cube LED lights
  • Built-in Hi-Lift jack points
  • Made in the U.S.A.

Choosing a winch setup

A winch bumper carries the weight of a winch and takes the load when a vehicle is pulled from mud, sand or a rock ledge, so the mounting points matter as much as the steel. Before buying a winch for this bumper, check that its mounting plate matches the recessed winch mount and the 10 inch x 4.5 inch bottom foot profile. A winch with a larger body may need clearance behind the bumper face, and the wiring should be routed away from moving suspension parts.

Light mounts and D-ring points are often added at the same time. Mount cube lights with the wiring protected from the bumper edges, and keep the battery cable and the winch control line clear of the steering components. After the first few trail runs, check the shackle tabs, the bolts into the frame and the welds for cracks or loose hardware.

Specifications

Brand JcrOffroad
Part number SWBFCTJ-T-P
UPC 700007277161
Product type Front winch bumper
Style Crusader, mid width
Material Steel, 3/16 inch
Finish Black powder coat
Shackle tabs 2, each 3/4 inch thick
Winch mounting profile 10 inch x 4.5 inch bottom foot
Winch mount Included, recessed
D-ring mount Included
Light mounts Included, for 3×3 cube LED lights
Fit type Direct fit
Origin Made in the U.S.A.

Vehicle fitment

It fits the 1997–2006 Jeep Wrangler (TJ), covering SE, Sport, Sahara, Rubicon, X and the 65th Anniversary Edition, and the 2004–2006 Jeep Wrangler (LJ) in Unlimited and Unlimited Rubicon form.

Fit is limited to those years, so check your year, model and trim before ordering. The YJ and 2007-and-newer JK fall outside the years above.

What’s included

The bumper with two shackle tabs and a recessed winch mount. The winch and the LED lights are not included.

SKU: JCRSWBFCTJ-T-P Category:

Specification

Shipping weight 50.00 lbs
Package dimensions 58.00 × 23.00 × 13.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (LJ)2004–2006Unlimited, Unlimited Rubicon
Jeep Wrangler (TJ)1997–200665th Anniversary Edition, Rubicon, SE, Sahara, Sport, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the SWBFCTJ-T-P fit a Jeep TJ?

Yes. It fits the 1997–2006 Jeep Wrangler (TJ), and it also fits the 2004–2006 Wrangler Unlimited (LJ) as a direct-fit application.

What lights does the Crusader TJ bumper accept?

It accepts aftermarket 3x3 cube LED lights. The lights themselves are separate, and the bumper includes the openings to mount them.

Which winches work with this Crusader bumper?

It uses the standard 10 inch x 4.5 inch bottom foot profile and JcrOffroad names the Warn Zeon and Warn Powerplant winches as compatible.

How often should the winch bumper bolts be checked?

Check them after the first few trail runs and then at regular intervals, since bolts can loosen under repeated pulling and bumps. Tighten any loose hardware and inspect the shackle tabs and welds for cracks. Replace any bolt that is stretched or damaged.
