JcrOffroad Vanguard Full Width Front Winch Bumper (Black) – SWBFVTJ-T-P

JcrOffroad

Shop Jeep Wrangler TJ Front Bumpers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Vanguard full-width front winch bumper for the 1997–2006 Jeep Wrangler (TJ) and 2004–2006 Unlimited (LJ)
  • Integrated grill hoop, 3/16 inch black powder-coated steel
  • Accepts aftermarket 3×3 cube LED lights
  • Recessed winch mount

Description

Overview

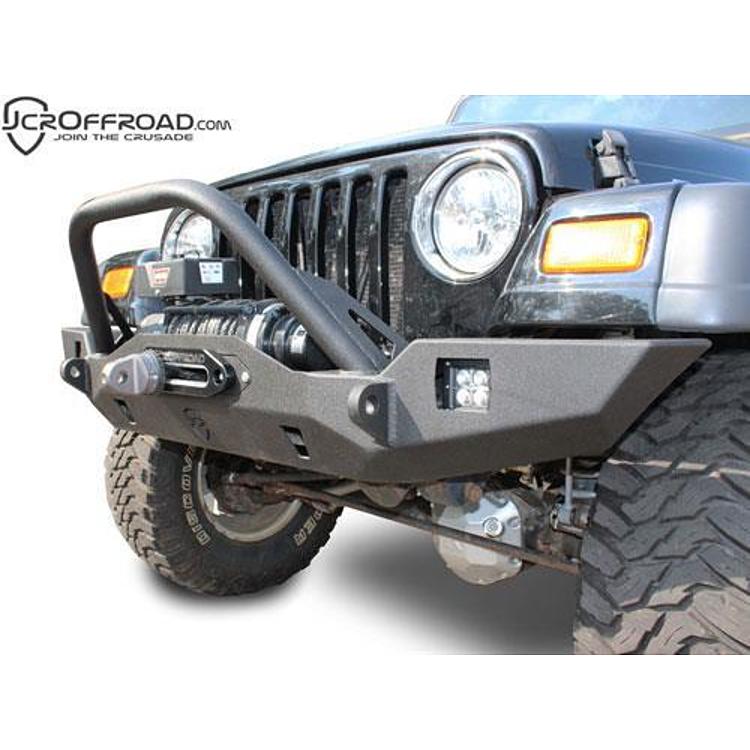

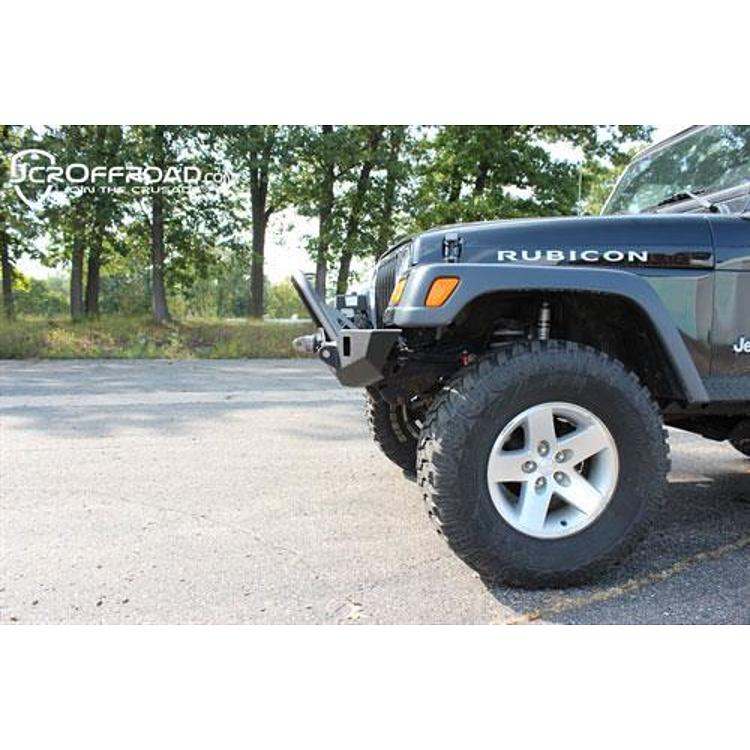

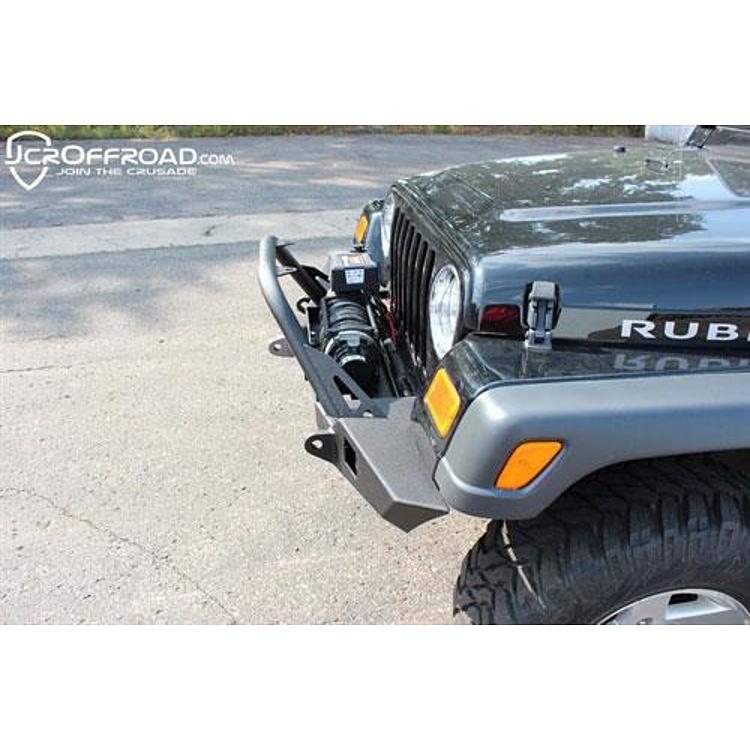

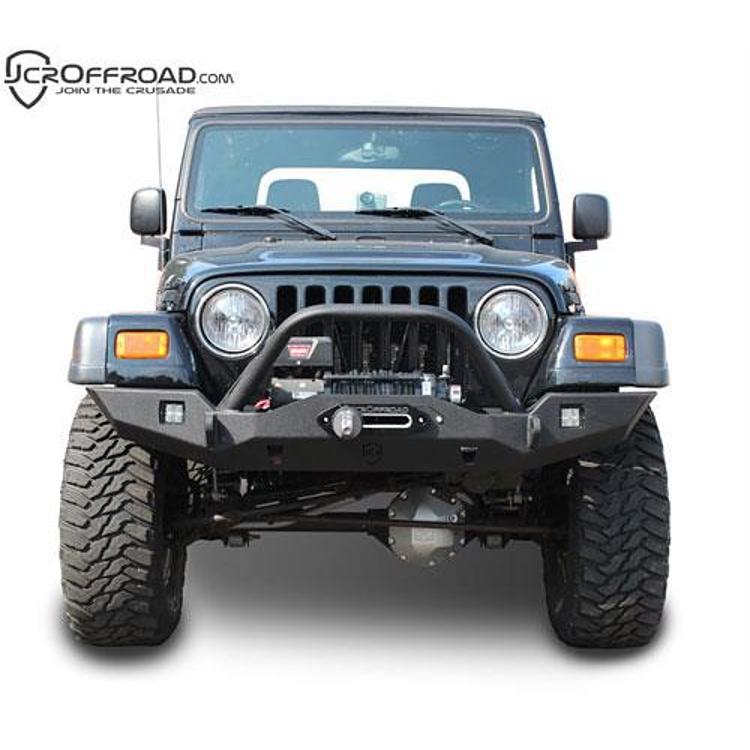

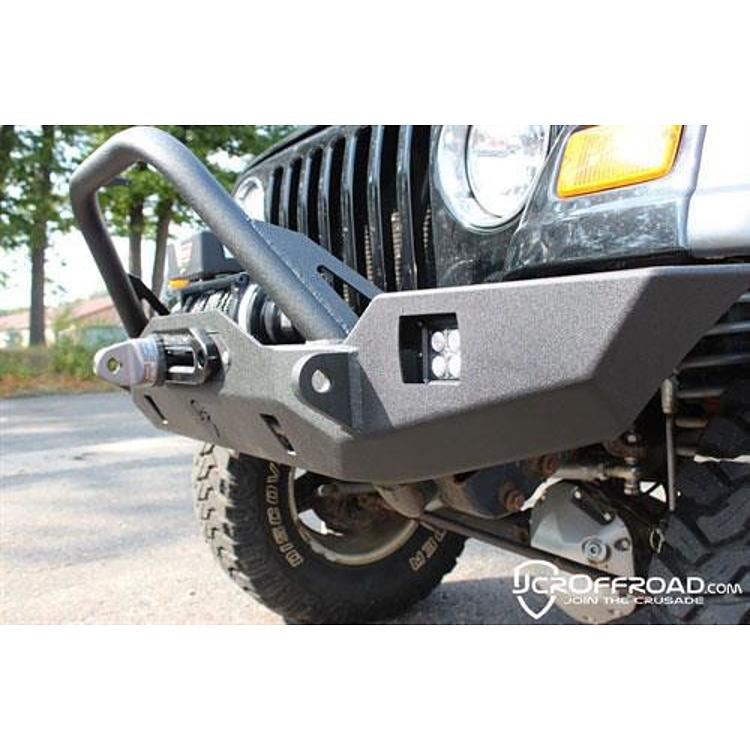

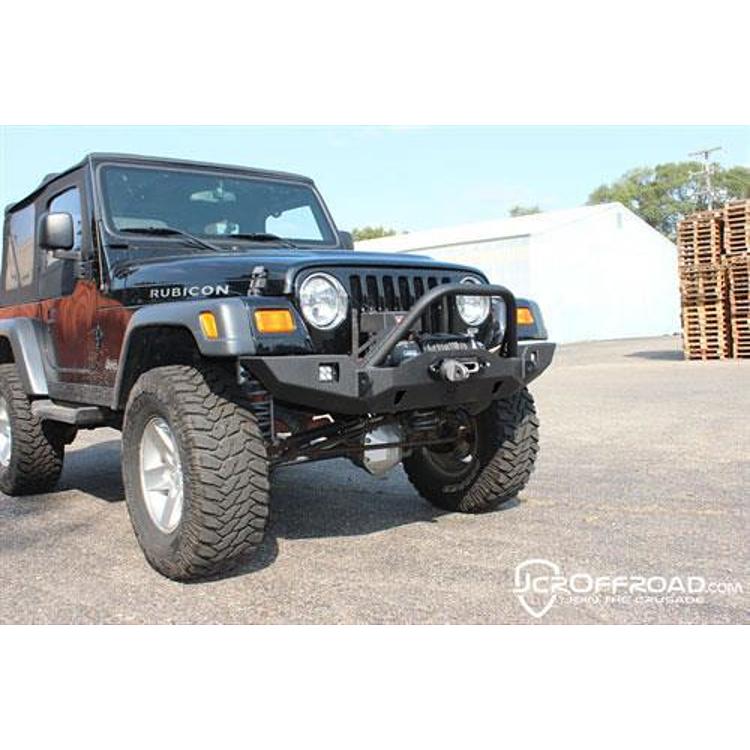

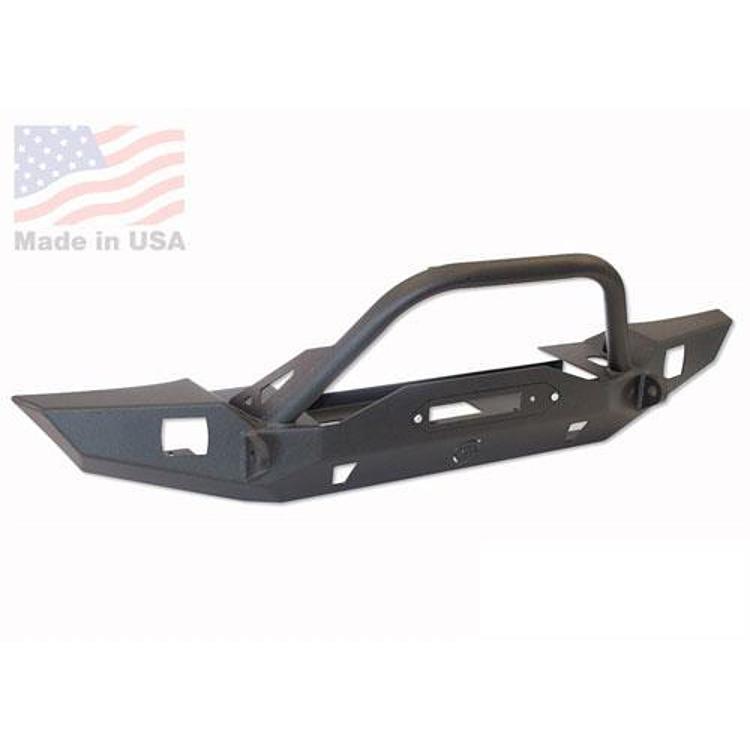

The JcrOffroad Vanguard Full Width Front Winch Bumper, part number SWBFVTJ-T-P, is a black steel front bumper for the 1997–2006 Jeep Wrangler (TJ) and the 2004–2006 Wrangler Unlimited (LJ). It runs fender to fender for full front coverage.

An integrated grill hoop sits on a CNC-cut 3/16 inch steel body, with two 3/4 inch thick shackle tabs, a recessed winch mount and openings for aftermarket 3×3 cube LED lights.

Key features

  • Full width, fender to fender
  • Integrated grill hoop
  • CNC cut and formed from 3/16 inch steel
  • Two 3/4 inch thick shackle tabs
  • Recessed winch mount, 10 inch x 4.5 inch bottom foot profile
  • Compatible with the Warn Zeon and Warn Powerplant winches
  • Accepts aftermarket 3×3 cube LED lights
  • Built-in Hi-Lift jack points

Full width bumper use and checks

A full width bumper runs across the front of the vehicle from fender to fender, so it shields the grille and lights in one piece. Its weight sits forward on the frame, which changes steering feel and braking distance. Plan to check the mounting points and tighten fasteners after the first trips.

A grill hoop adds protection for the radiator and headlights but also changes how close you can get to brush and rocks. Check that the hoop clears the radiator, hood latch and cooling fan before tightening. Keep the grille mesh clean so airflow to the radiator is not restricted.

Winch and recovery gear usually go on a full width bumper, so think about the winch cable path and the shackles that connect to the tabs. Replace shackles or pins that show wear, and keep recovery straps out of contact with sharp edges.

Specifications

Brand JcrOffroad
Part number SWBFVTJ-T-P
UPC 700007277581
Product type Front winch bumper
Style Vanguard, full width, with grill hoop
Material Steel, 3/16 inch
Finish Black powder coat
Shackle tabs 2, each 3/4 inch thick
Winch mounting profile 10 inch x 4.5 inch bottom foot
Winch mount Included, recessed
D-ring mount Included
Light mounts Included, for 3×3 cube LED lights
Fit type Direct fit
Origin Made in the U.S.A.

Vehicle fitment

It fits the 1997–2006 Jeep Wrangler (TJ), including SE, Sport, Sahara, Rubicon, X and the 65th Anniversary Edition, and the 2004–2006 Wrangler (LJ) in Unlimited and Unlimited Rubicon form.

The TJ years run 1997–2006 and the LJ years run 2004–2006. Check the year, model and trim against your vehicle before buying.

What’s included

The bumper with grill hoop, two shackle tabs and a recessed winch mount. A winch and LED lights are not included.

SKU: JCRSWBFVTJ-T-P Category:

Specification

Shipping weight 65.00 lbs
Package dimensions 71.00 × 21.00 × 14.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (LJ)2004–2006Unlimited, Unlimited Rubicon
Jeep Wrangler (TJ)1997–200665th Anniversary Edition, Rubicon, SE, Sahara, Sport, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Vanguard SWBFVTJ-T-P fit the Wrangler Unlimited?

Yes. It fits the 2004–2006 Wrangler (LJ) Unlimited and Unlimited Rubicon, along with the 1997–2006 Wrangler (TJ), so it is made for the Unlimited as well.

Does this Vanguard bumper have a grill hoop?

Yes. It has an integrated grill hoop, built-in Hi-Lift jack points and two shackle tabs. The hoop is part of the bumper body and is cut from 3/16 inch steel.

Can I run cube lights on the Vanguard TJ bumper?

Yes. The bumper accepts aftermarket 3x3 cube LED lights, which you supply yourself. It has the mounting provisions ready, so the lights can be fitted to the bumper directly.

How should a full width bumper be checked after installation?

Check that the bumper sits flush with the fenders and that the grill hoop clears the radiator and hood latch. Tighten the mounting hardware and re-check it after the first few drives. Look for stress cracks at the mounting points, especially after off-road use.
