Overview

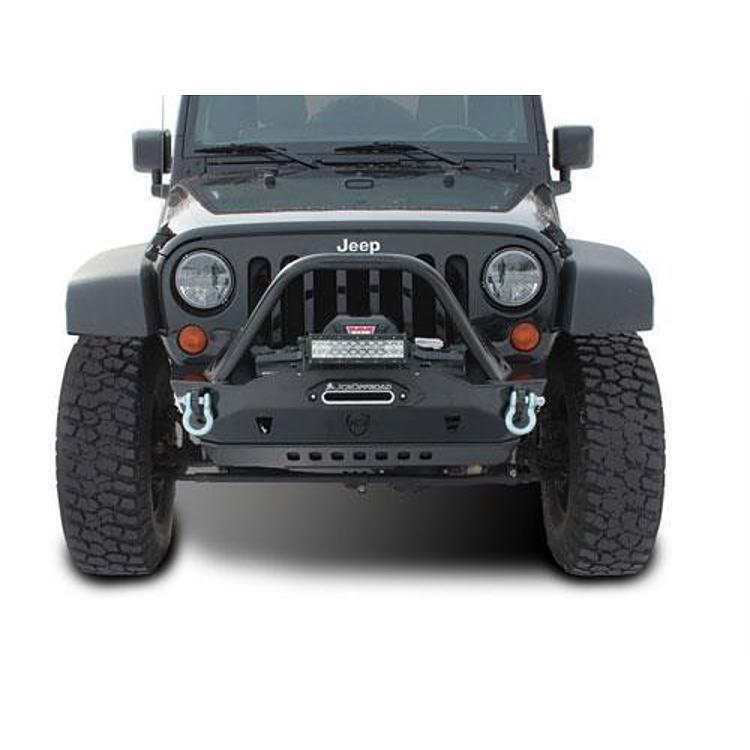

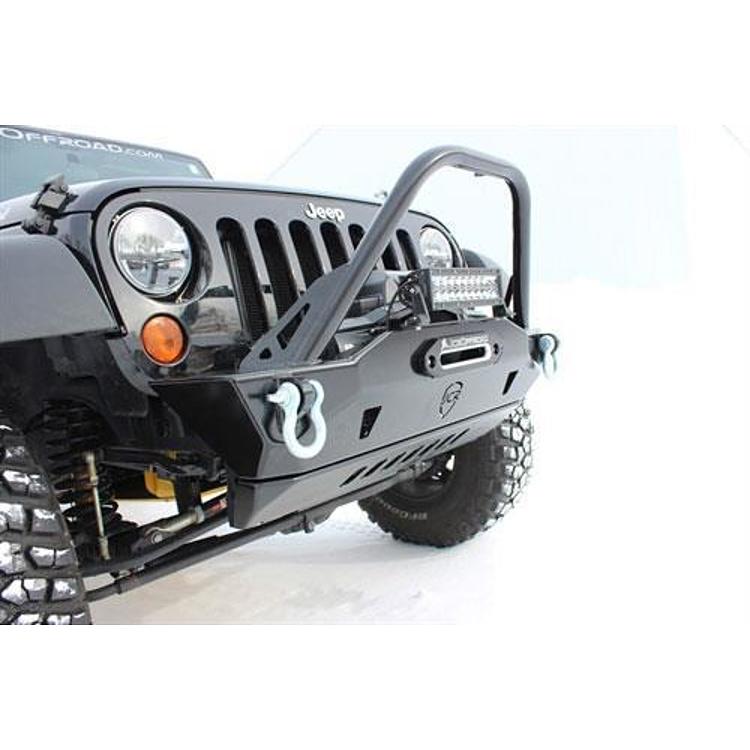

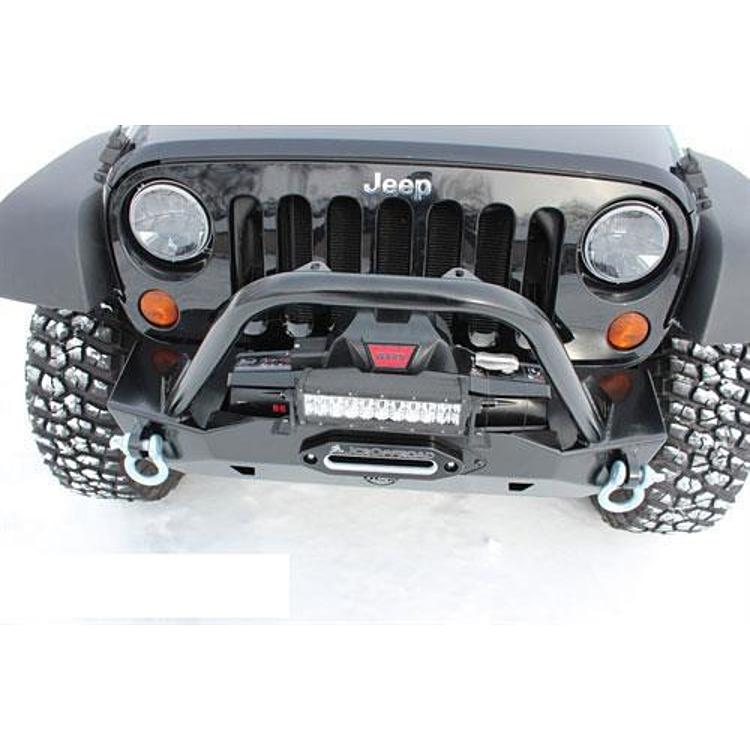

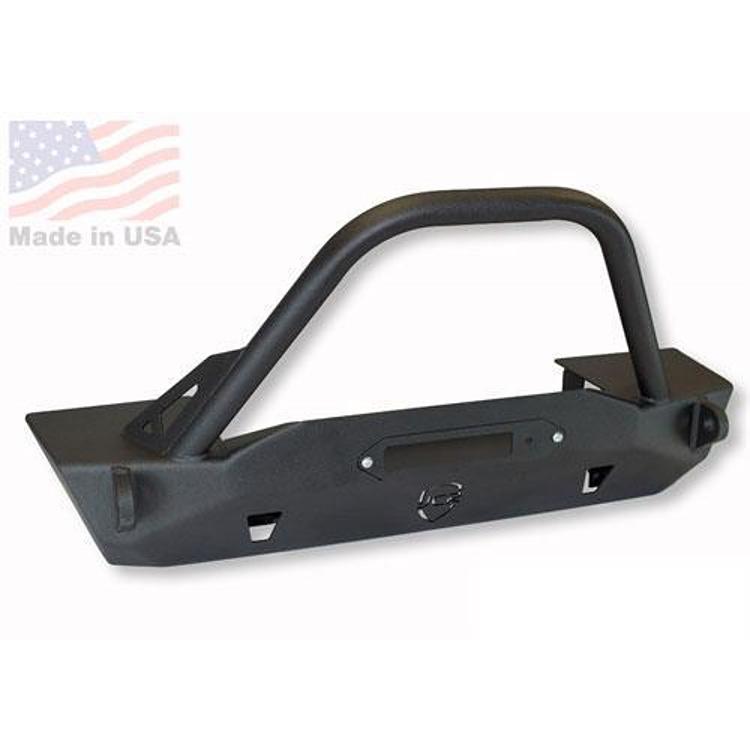

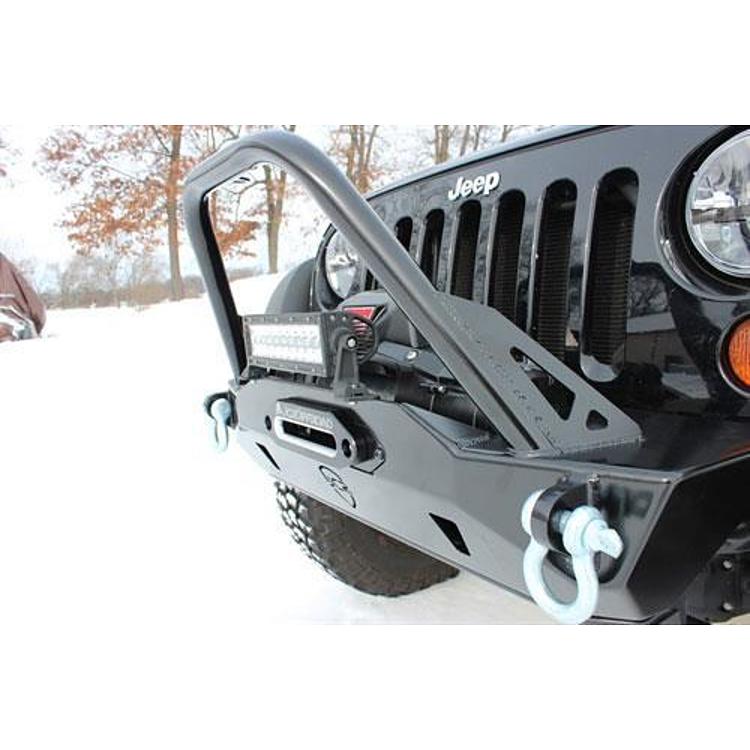

The JcrOffroad Mauler Stubby Front Winch Bumper, part number JKFM-T-PC, is a black powder-coated steel bumper for the 2007–2016 Jeep Wrangler JK, 2-door and 4-door.
JcrOffroad designed the Mauler for owners who want maximum clearance and an uninhibited approach angle. The bumper is CNC cut and formed from 3/16 inch steel and includes two 3/4 inch thick shackle tabs. The winch-ready recessed mount uses the standard 10 inch x 4.5 inch bottom foot profile and works with Warn Zeon and Warn Powerplant winches.
Key features
- Maximum clearance and approach angle
- CNC cut and formed from 3/16 inch steel
- Two 3/4 inch thick shackle tabs included
- Built-in Hi-lift Jack points
- Recessed winch mount, 10 inch x 4.5 inch bottom foot profile
- Compatible with Warn Zeon and Warn Powerplant winches
- Black powder coat, made in the USA
Winch bumper setup
A front winch bumper changes the weight balance at the front of the vehicle, so the springs and steering geometry see more load than with a stock bumper. Recheck front suspension bolts and steering components after installation, and choose a winch whose mounting base matches the bumper’s recessed profile. A stubby bumper leaves more room for approach angles but offers less grille protection than a full-width bumper.
Recovery hardware should be matched to the shackle tabs. Use rated shackles of appropriate capacity, and keep the winch rope or cable in good condition. Inspect the bumper welds and powder coat after rough trail use, since chips expose steel to rust. Re-torque the mounting hardware after the first few outings.
- Check front alignment after installation
- Inspect the winch cable or rope for wear
- Use rated recovery gear with the shackle tabs
Specifications
| Brand | JcrOffroad |
|---|---|
| Part number | JKFM-T-PC |
| UPC | 700007276361 |
| Position | Front |
| Width | Stubby |
| Material | Steel, 3/16 in |
| Finish | Black powder coat |
| Shackle tabs | Two, 3/4 in thick |
| Winch mount | Recessed, 10 in x 4.5 in bottom foot profile |
| Winch compatibility | Warn Zeon and Warn Powerplant |
| Light mounts | Included |
| Fit type | Direct fit |
Vehicle fitment
The JKFM-T-PC fits the 2007–2016 Jeep Wrangler JK, 2-door and 4-door.
The bumper is for the JK and does not cover the TJ or the Wrangler JL. Confirm your vehicle’s year, model and trim before ordering.
What’s included
- Stubby front winch bumper in black powder coat
- Two 3/4 inch thick shackle tabs
- Recessed winch mount
Not included: A winch.
