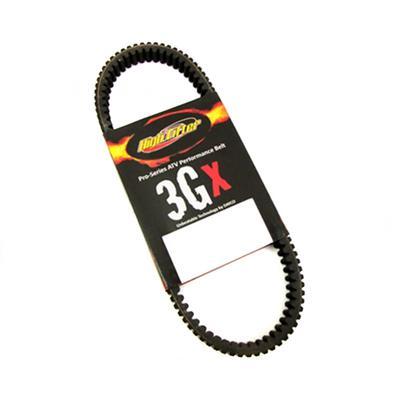

High Lifter Products 3GX Belt – BELT-HLP216

High Lifter Products

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • High Lifter 3GX performance belt for Polaris 900 and 1000 models
  • Part number HLPBELT-HLP216 from High Lifter Products
  • High-temperature neoprene with aramid fiber loading
  • Limited one-year warranty, per the maker

Description

Overview

The High Lifter Products 3GX Belt, part number HLPBELT-HLP216, is a performance belt for Polaris Ranger 900 and RZR 900 and 1000 models from 2011 to 2018.

The 3GX is designed for ATVs with 800cc engines or larger. It uses high-temperature neoprene with a high level of aramid fiber loading, intended for high torque loads and consistent throttle response at speed.

Key features

  • More consistent throttle response at high speed
  • Reduced slippage under high levels of torque
  • Increased horsepower capacity
  • High-temperature neoprene with aramid fiber loading
  • Built for operation well over 12,000 RPM

Belt care and inspection

A drive belt wears from heat, friction and load, so regular inspection helps prevent failure on the trail. Look for cracks along the edges, glazing on the belt surface, frayed cords and any sign of uneven wear. A glazed or grooved belt can slip under load even when it still looks intact, which shows up as lost power or a burning smell.

Belt life also depends on clutch and sheave condition. Worn clutch weights, dirty sheaves or a misaligned clutch can wear a new belt quickly. When replacing a belt, inspect the drive clutch and secondary clutch at the same time and clean any debris from the housing. Keep the belt dry and away from solvents and oil.

  • Cracks or glazing on the belt surface
  • Clutch and sheave wear
  • Debris in the clutch housing
  • Belt width and part number match before ordering

Specifications

Brand High Lifter Products
Part number HLPBELT-HLP216
Material High-temperature neoprene with aramid fiber loading
Intended engine size 800cc or larger
Warranty Limited one-year

Vehicle fitment

It fits 2011–2018 Polaris Ranger 900 models, including the Ranger 900 XP and Crew XP 900, and RZR 900 and 1000 models, including the RZR XP 1000 and RZR S 900.

Sportsman and Ace models are not covered. Confirm your vehicle’s year, model and trim before ordering.

What’s included

One belt. High Lifter gives it a limited one-year warranty. Keep the packaging, because it contains the warranty card needed for warranty repair.

Fitment

VehicleYearsTrims
Polaris Ranger 900 Crew2014–2015Base, EPS Base
Polaris Ranger 900 XP2013–2017Base, EPS Base, EPS High Lifter Edition Base
Polaris Ranger 900-5 Crew2016EPS Base
Polaris Ranger 900-6 Crew2016EPS Base
Polaris Ranger Crew XP 9002017–2018Base, EPS Base
Polaris Ranger RZR XP 4 9002012–2013Base
Polaris Ranger RZR XP 9002011–2013Base
Polaris RZR S 9002017Base
Polaris RZR XP 10002014–2015EPS Base, EPS High Lifter Edition Base
Polaris RZR XP 4 10002014–2015EPS Base

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does this belt fit a Ranger 900 XP?

Yes. It fits 2013–2017 Polaris Ranger 900 XP models. Confirm the model year and trim on your vehicle before ordering, since fit depends on specific years.

What engine size is this belt for?

It is designed for ATVs with 800cc engines or larger. The belt is made of high-temperature neoprene with aramid fiber loading, suited to high torque loads.

Do I need to keep the packaging?

Keep it if warranty repair may be needed. The packaging holds the warranty card that High Lifter requires, and the belt carries a limited one-year warranty.

How often should the belt be checked?

Check it at regular service intervals and after heavy use, mud or water crossings. Remove the cover and look along the full length for cracks, fraying or shiny spots that suggest slipping.

Should the clutch be serviced when the belt is replaced?

Often, yes. Worn clutch parts can cause a new belt to wear unevenly, so inspect the clutch weights, sheaves and housing while the belt is off. Replacing worn parts together helps the new belt last.
