Overview

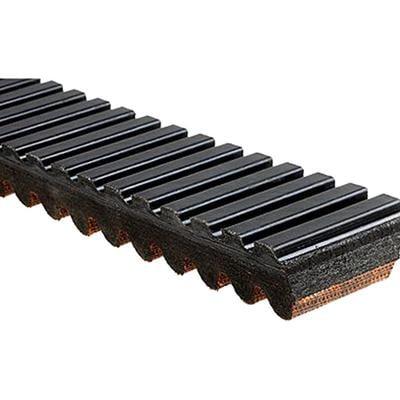

The Gates G-Force C12 CVT belt, part number 27C4159, is a carbon corded CVT belt for the Polaris RZR S 1000, RZR S4 1000, RZR XP 1000 and RZR XP 4 1000. It fits the 2016-2019 RZR S 1000, the 2019 RZR S4 1000, the 2014-2019 RZR XP 1000 and the 2014-2019 RZR XP 4 1000.
It has a 42.887-inch outside circumference and a 1.281-inch top width, with a 26-degree angle. It is double notched rather than notched, which matches the OEM belt design.
The G-Force C12 is built with finite element analysis and is designed for strength, durability and flexibility. The belt was tested in controlled environments and on race vehicles.
Key features
- Carbon corded belt for CVT drives
- Double notched, matched to the OEM belt
- Designed using finite element analysis
- Strength, durability and flexibility.
- No clutch setting change needed when the belt is installed
- Reported high performance in controlled and race testing
Before you install
A CVT belt wears as it runs, and the sheaves that grip it wear too. Inspect the belt for cracks, glazing, chunks missing from the edges and uneven wear across its width. When these signs appear, replacing the belt before it fails avoids a stranded machine on the trail. Belts are often replaced together with worn clutch components, since a worn sheave can wear a new belt quickly.
Keep the drive area clean and free of mud and sand packed into the clutch. Check the new belt after the first few rides, and inspect the drive system after deep water or sand exposure. Store spare belts flat and away from heat and sunlight, because heat and ozone age rubber over time.
- Look for cracks and glazing on the belt faces
- Check the edges for chunking or fraying
- Clean sand and mud from the clutch area regularly
Specifications
| Brand | Gates Corporation |
|---|---|
| Part number | 27C4159 |
| Product line | G-Force C12 CVT belt |
| Material | Carbon corded belt |
| Outside circumference | 42.887 inches |
| Top width | 1.281 inches |
| Angle | 26 degrees |
| Notched | No |
| Double notched | Yes |
Vehicle fitment
It fits the 2016-2019 Polaris RZR S 1000, the 2019 Polaris RZR S4 1000, the 2014-2019 Polaris RZR XP 1000 and the 2014-2019 Polaris RZR XP 4 1000. Other RZR models and years are not covered.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
No clutch setting change is needed when this belt goes on. Measure the belt you are removing and compare it with the 42.887-inch outside circumference and 1.281-inch top width before fitting the new belt.
What’s included
One Gates G-Force C12 CVT belt, part number 27C4159.
