FUEL Off-Road Zephyr D633 Wheel, 17x9 with 8 on 6.5 Bolt Pattern – Matte Black – D63317908250

FUEL Off-Road

Shop FUEL Off-Road Wheels 17x9 8x6.5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 17×9 aluminum wheel, part number MHTD63317908250
  • Bolt pattern 8 on 6.5, offset 1, center bore 125
  • Backspacing 5; matte black finish
  • No vehicle-specific fitment listed

Description

Overview

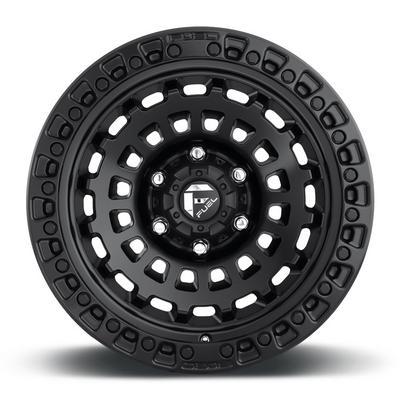

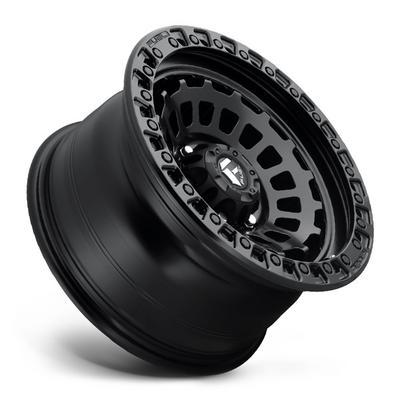

The FUEL Off-Road Zephyr D633 is a 17 by 9 inch aluminum wheel with a matte black finish, part number MHTD63317908250. It has an 8 on 6.5 bolt pattern, a 1 offset, a 125 center bore and 5 backspacing.

The 17-inch diameter and 9-inch width are the figures to match against your tire size. FUEL Off-Road describes its wheels as suited to trucks and SUVs, so check the backspacing of 5 against brake clearance before mounting.

Key features

  • 17-inch diameter with 9-inch width
  • 8 on 6.5 bolt pattern
  • Offset of 1 and backspacing of 5
  • Center bore of 125
  • Aluminum construction with matte black finish
  • Zephyr style

Hub-centric rings and centering

Centering decides how a wheel runs on the hub. A lug-centric setup relies on the lug nuts to pull the wheel into place, while a hub-centric setup lets the hub bore carry the load. When the wheel bore is larger than the hub, rings close the gap. Choose rings that match the wheel bore on one side and the hub diameter on the other, and keep them with the wheel when it is removed.

The 8 on 6.5 pattern has eight studs, so confirm the stud count and spacing before buying rings or spacers. Lug nuts should be torqued in a star pattern and rechecked after the first short drive, since the wheel may settle against the rings.

  • Measure the hub centering diameter first
  • Match ring size to the wheel bore
  • Torque nuts in a star pattern
  • Recheck after the first short drive

Specifications

Brand FUEL Off-Road
Part number MHTD63317908250
Model Zephyr D633
Diameter 17 inches
Width 9 inches
Bolt pattern 8 on 6.5
Center bore 125
Offset 1
Backspacing 5
Style Zephyr
Finish Matte black
Construction Aluminum

Vehicle fitment

This wheel is a universal fit design with no vehicle named. The 8 on 6.5 bolt pattern and 125 center bore decide whether a given hub can take it.

Confirm the hub’s bolt pattern and center bore before ordering. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A 125 center bore must suit the hub. If the bore is larger than the hub’s hub-centric diameter, hub-centric rings are usually needed to center the wheel.

What’s included

This entry covers one wheel.

Not included: Tires, lug nuts and center caps are not part of this wheel.

SKU: MHTD63317908250 Categories: ,

Questions & Answers

What is the FUEL Off-Road Zephyr D633 17x9 wheel?

The Zephyr D633 is a 17 inch by 9 inch aluminum wheel from FUEL Off-Road in matte black, with part number MHTD63317908250. It has a 1 offset, a 125 center bore and 5 backspacing.

What bolt pattern fits the Zephyr D633 17x9?

The listed bolt pattern is 8 on 6.5. Only hubs with that exact lug count and spacing will mount this wheel, so measure your hub before mounting.

Is the 125 center bore a fit for my hub?

It depends on your hub. The wheel has a 125 center bore, so compare it with your hub's hub-centric diameter. A larger hub bore usually calls for hub-centric rings to center the wheel.

Does this wheel include tires or lug nuts?

No. Tires, lug nuts and center caps are not included, so plan to source them separately. Confirm lug hardware suits the 8 on 6.5 pattern before mounting.

What is the difference between lug-centric and hub-centric fit?

A lug-centric wheel relies on the lug nuts to center it, while a hub-centric wheel is centered by the hub bore. Hub-centric fit reduces vibration when the bore matches the hub closely. Rings bridge a small gap, so check the hub diameter before choosing a set.
