Overview

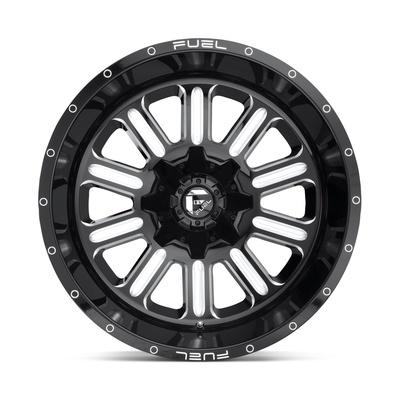

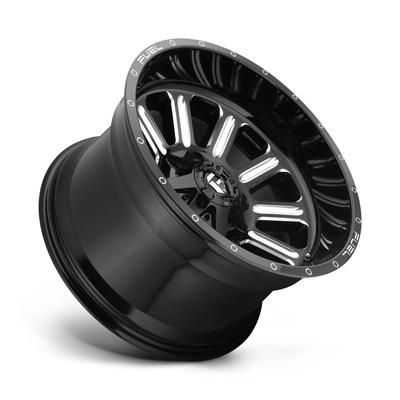

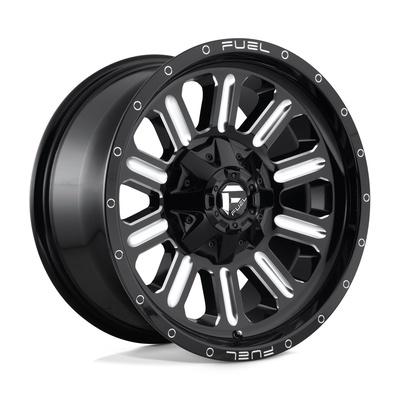

The FUEL Off-Road D620 Hardline is a 20×12 aluminum spoke wheel with an 8 on 180 bolt pattern, offset -44 and a gloss black milled finish. It carries part number MHTD62020201847, and the title uses the model code D62020201847.
FUEL Off-Road describes its wheels as available in many bolt pattern and offset combinations, aimed at owners who want style together with a size suited to their truck or SUV.
Key features
- 20-inch diameter with a 12-inch width
- Spoke design with a gloss black milled finish
- Aluminum construction
- Center bore 124 for the 8 on 180 pattern
- Offset -44 and backspacing 4.8
Hub centering and lug fit
A center bore that is larger than the hub means the wheel must rely on the lug nuts to center it, which can cause vibration if the fit is loose. Hub-centric rings fill that gap so the load goes through the hub rather than the studs. Choose rings that match both the hub and the wheel bore.
Lug nuts must also suit the wheel’s seat type. A mismatched seat can loosen over time even when the torque looks correct. Tighten the nuts in a star pattern and inspect them again after the first short drive and after any tire change.
- Check hub diameter against the center bore
- Use hub-centric rings only when the bore is larger than the hub
- Retorque lug nuts after the first drive
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD62020201847 |
| Model | D620 Hardline |
| Wheel diameter | 20 inches |
| Wheel width | 12 inches |
| Offset | -44 |
| Center bore | 124 |
| Backspacing | 4.8 |
| Style | Spoke |
| Finish | Gloss Black Milled |
| Bolt pattern | 8 on 180 |
| Construction | Aluminum |
Vehicle fitment
This wheel is not tied to a specific year, make, model or trim. Confirm fit for your own vehicle before ordering.
Check the 8 on 180 bolt pattern, center bore 124 and offset -44 against your hub before buying.
Verify the year, model and trim of your vehicle before purchase, and check clearance for a -44 offset against your brakes and fenders.
What’s included
Lug nuts, center caps and tires are not included with the wheel.
