Overview

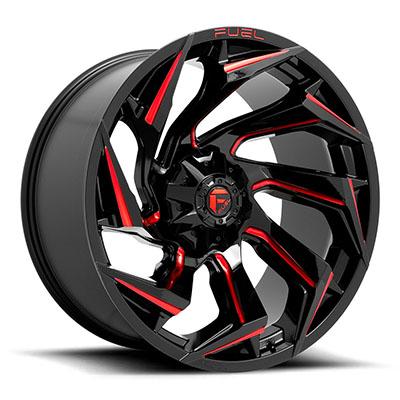

The FUEL Off-Road D755 Reaction wheel, 22×10 inches with part number MHTD75522007047, is an aluminum directional wheel in a black, milled and red tint finish. Five-lug hubs are the target, with the bolt pattern written as 5 on 5.5/5 on 150 and 5 on 150 given as a second pattern.
Because the wheel is Universal Fit, no vehicle is named. A 22-inch diameter with a 10-inch width and an offset of -18 makes the stance wider than a standard wheel, so the hub and clearance both need checking. The center bore of 110 and backspacing of 4.79 are the other measurements to compare.
Key features
- Black, milled and red tint finish
- Two five-lug patterns listed: 5 on 5.5 and 5 on 150
- Directional style design
- 22-inch diameter with a 10-inch width
- Offset -18, center bore 110, backspacing 4.79
Wide wheels and clearance
A 10-inch wide wheel on a 22-inch diameter sits further out than most stock wheels, which changes how the tire clears fenders and suspension. Negative offset pushes the mounting face outward, so the outer edge of the tire moves closer to the body on turns and over bumps. Check the clearance with the suspension at its normal height and again at full lock.
Lift height, tire width and sidewall choice all affect that space. A taller sidewall can add rubbing risk on a wide rim, while a lower profile may reduce it but increase impact damage on rocks. Inspect the inner barrel and the fender lip after the first few drives, and look for rub marks on tire shoulders that show a clearance problem.
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD75522007047 |
| Model | D755 Reaction |
| Diameter | 22 inches |
| Width | 10 inches |
| Bolt pattern | 5 on 5.5/5 on 150 |
| Bolt pattern 2 | 5 on 150 |
| Offset | -18 |
| Center bore | 110 |
| Backspacing | 4.79 |
| Style | Directional |
| Finish | Black/Milled/Red |
| Construction | Aluminum |
| Fitment | Universal Fit |
Vehicle fitment
It is a universal-fit wheel with no vehicle assigned, so the choice rests on the hub’s five-lug pattern and the 110 center bore.
A -18 offset on a 10-inch wide wheel can contact fenders or suspension on some vehicles, so check clearance first. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Test-fit the wheel with the brake caliper and suspension in place before a tire is mounted. The negative offset means outer clearance should be checked at full steering lock.
What’s included
Tires are not included, so they need to be bought and mounted separately.
Not included: tires, which must be fitted to this wheel separately.
