Overview

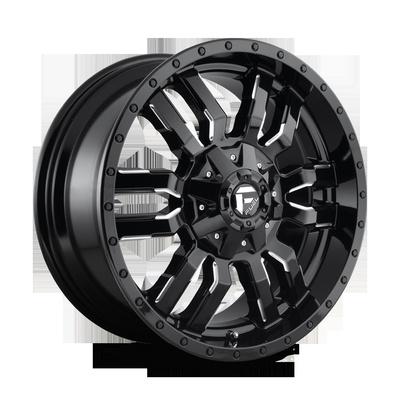

The FUEL Off-Road Sledge D595 18 x 9 inch wheel is an aluminum split spoke wheel in a gloss black milled finish, catalogued as part number MHTD59518909856. Its listed bolt patterns are 6 on 135 and 6 on 139.7.
The offset is 19, the center bore is 106 and the backspacing is 5.7. FUEL Off-Road says its wheels come in many bolt pattern and offset combinations, so compare these exact figures with your hub before choosing this size.
Key features
- Split spoke design with a gloss black milled finish
- Aluminum construction
- 18 inch diameter and 9 inch width
- Two bolt pattern entries: 6 on 135 and 6 on 139.7
- Offset 19 and center bore 106
Matching bolt patterns to a hub
Bolt pattern is the first thing to confirm on any wheel. The number of studs and the circle they sit on must match the hub exactly, and a pattern that is close but not identical will not seat safely. Some wheels are offered in more than one pattern, so the pattern should be checked on the specific wheel being bought rather than assumed from the model name. Measuring stud spacing with a caliper or a tape across the hub is a reliable check before ordering.
Once the pattern is confirmed, look at offset and center bore together. Offset controls how far the tire sits from the hub, which affects brake and suspension clearance. The center bore should fit the hub so the wheel centers itself, and a hub-centric ring can close a small gap. Inspect the mounting face and lug seats when the tires are off, and replace any wheel with cracks, bent flanges or damaged seats.
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD59518909856 |
| Wheel diameter | 18 inches |
| Wheel width | 9 inches |
| Offset | 19 |
| Center bore | 106 |
| Backspacing | 5.7 |
| Style | Split Spoke |
| Finish | Gloss Black Milled |
| Bolt pattern | 6 on 135 / 6 on 139.7 |
| Construction | Aluminum |
Vehicle fitment
No make, model or year is assigned to this wheel. It carries a universal fit tag, so the bolt pattern, offset and center bore must be matched to your vehicle.
Compare the 6 on 135 and 6 on 139.7 patterns with your hub, and check offset 19 against your vehicle’s measurements. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Test fit with your own hub before a full drive, since the 106 center bore must suit the hub. A wheel that does not seat evenly should not be run; tighten lugs to your vehicle’s specified sequence and torque.
What’s included
This is a single wheel with no accessories included.
Not included: tires and lug hardware.
