Overview

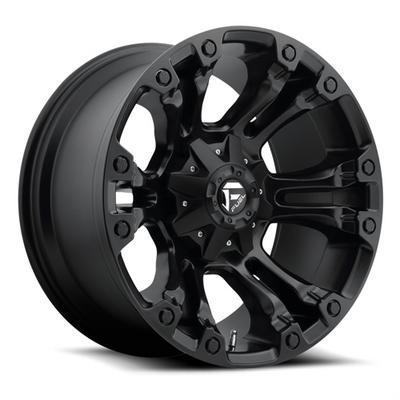

The FUEL Off-Road Vapor D560 18×9 in matte black, part number MHTD56018908245, is an aluminum split spoke wheel built on a single 8 on 6.5 bolt pattern. It measures 18 inches in diameter and 9 inches wide, and it is intended for trucks and SUVs that run that pattern.
The 125 center bore and -12 offset are the first measurements to check against your hub and clearance.
Key features
- 18-inch diameter and 9-inch width
- Single 8 on 6.5 bolt pattern
- Split spoke design with aluminum construction
- Matte black finish and backspacing of 4.5
Single pattern and hub rings
Hub-centric rings fill the gap between a wheel’s center bore and a larger hub, so the hub centers the wheel instead of the lug studs. Rings should match the size and material needed for the wheel and hub. A ring that is too thin or too thick can cause vibration or make the wheel hard to seat, so measure both bores before ordering.
A single 8 on 6.5 pattern keeps stud spacing simple to verify, but the hub still needs checking. Look for rust, paint buildup or burrs on the hub face, since they can hold the wheel off flush. Clean the hub with a wire brush, and keep lubricant off the wheel’s mounting surface.
- Measure the hub bore before ordering rings
- Check the hub face for rust and burrs
- Keep lubricant off the mounting surface
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD56018908245 |
| Model line | Vapor D560 |
| Wheel diameter | 18 inches |
| Wheel width | 9 inches |
| Bolt pattern | 8 on 6.5 |
| Center bore | 125 |
| Offset | -12 |
| Backspacing | 4.5 |
| Construction | Aluminum |
| Style | Split spoke |
| Finish | Matte black |
Vehicle fitment
Universal fit is the only fitment statement, and no vehicle is named. Verify the 8 on 6.5 bolt pattern and 125 center bore against your vehicle before using this wheel.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
If your hub is smaller than the 125 center bore, hub-centric rings close the gap and center the wheel.
What’s included
Sort out lug nuts and center caps before the wheel goes on the hub.
Not included: Tires are not included with this wheel.
