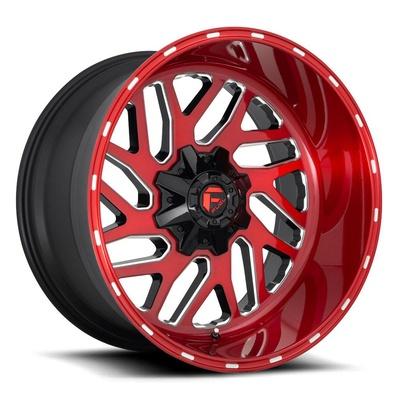

FUEL Off-Road Triton D691 Wheel, 22x10 with 6 on 135 / 6 on 5.5 Bolt Pattern – Red / Black / Milled – D69122009846

FUEL Off-Road

Shop FUEL Off-Road Wheels 22x10 6x5.5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • FUEL Off-Road Triton D691 wheel, 22×10, part MHTD69122009846
  • Bolt patterns 6 on 135 / 6 on 5.5, plus a second 6 on 135 entry
  • Offset -19, backspacing 4.8, center bore 106
  • Red/Black milled aluminum, directional style
  • Fitment entry reads Universal Fit; no vehicle named

Description

Overview

Part number MHTD69122009846 is the FUEL Off-Road Triton D691 in 22×10, a red and black milled aluminum wheel. It carries a 6 on 135 / 6 on 5.5 bolt pattern and a second 6 on 135 entry, and it is built for trucks and SUVs.

The 22 Inches diameter and 10 Inches width, with a directional style, define the tire sizes. The -19 offset, 4.8 backspacing and 106 center bore set how the rim sits on the hub.

Key features

  • Red/Black finish with a milled face
  • Bolt patterns 6 on 135 and 6 on 5.5
  • Second pattern entry 6 on 135
  • Offset -19, backspacing 4.8 and center bore 106
  • Aluminum construction in a directional style

Choosing the right setup

Offset and backspacing decide how far the wheel sits inside the fender, and that position affects steering geometry, scrub radius and the space left for brake components. When a larger tire is planned, rim width and offset should be reviewed together so the tire does not contact the suspension at full lock. A wheel that is wider or set at a different offset often needs a check of the fender edge after installation.

Bolt pattern and center bore are hub-side measurements that cannot be adjusted after mounting. A pattern that is close but not identical will not seat correctly, and a center bore smaller than the hub pilot will leave the wheel unseated. Lug seat style also matters, because the nut must match the shape of the wheel hole. Hub-centric rings can close the gap when the bore is larger than the hub, and they should be sized to the hub before mounting.

  • Measure the hub pilot before ordering
  • Match lug seat style to the wheel holes
  • Check tire diameter against fender clearance
  • Recheck lug torque after the first drive

Specifications

Brand FUEL Off-Road
Part number MHTD69122009846
Wheel diameter 22 Inches
Wheel width 10 Inches
Offset -19
Backspacing 4.8
Center bore 106
Bolt pattern 6 on 135 / 6 on 5.5
Bolt pattern (second entry) 6 on 135
Style Directional
Finish Red / Black / Milled
Construction Aluminum
Fitment Universal Fit

Vehicle fitment

Universal Fit is the fitment given, and no vehicle year is tied to it. Match the 6 on 135 or 6 on 5.5 pattern, the -19 offset and the 106 center bore before mounting, and confirm the tire size fits the 22 Inches rim.

A matching bolt pattern is necessary but does not confirm clearance for brakes or suspension. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Check the 106 center bore against the hub and test-fit with full steering lock. Stop if the wheel rubs, since that can damage the tire or steering parts.

What’s included

Covers a single wheel. Not included: tires, lug nuts and valve stems.

SKU: MHTD69122009846 Categories: ,

Questions & Answers

What bolt pattern does the Triton D691 22x10 use?

It uses a 6 on 135 or 6 on 5.5 bolt pattern, and a second 6 on 135 entry is also part of the fit. The 106 center bore and -19 offset complete the main fit checks for this red and black wheel.

Is the wheel made for a particular truck or SUV?

No vehicle year, make or model is attached. Universal Fit is the fitment given, so confirm your own vehicle's bolt pattern and clearance before mounting the wheel.

What is part number MHTD69122009846?

It is the part number for the FUEL Off-Road Triton D691 wheel, 22 Inches by 10 Inches, with a red, black and milled finish and aluminum construction.

Do the wheel bolts need replacing when new wheels are installed?

Not always. Reuse is acceptable only if the lug nuts or bolts are undamaged and match the seat type of the new wheel. Replace any nut with a worn or rounded seat, and check thread condition before torquing the wheel to the torque value for your vehicle.

How often should wheels be checked for damage?

Inspect the wheels after every few off-road outings and after any hard impact. Look for cracks around the spoke roots, bent lips and loose lug nuts. Small bends can cause vibration that worsens over time, so address any damage before the next trip.
