Overview

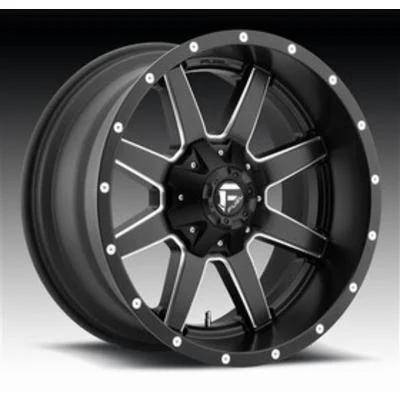

The FUEL Off-Road Maverick 22×10 is a black milled spoke wheel, part number MHTD53822008245, built from aluminum for trucks or SUVs that use an 8 on 6.5 bolt pattern. It has a 22-inch diameter, 10-inch width, -24 offset and 125 center bore.
Negative offset moves the mounting face outward compared with a zero-offset wheel, so the -24 offset and 4.5 backspacing change how the wheel sits under the fender. FUEL Off-Road labels it Universal Fit, but the 8 on 6.5 pattern, 125 center bore and offset must all match the hub before this wheel is used.
Key features
- 22-inch diameter with a 10-inch width
- Spoke design in black milled finish
- 8 on 6.5 bolt pattern
- -24 offset and 4.5 backspacing
- 125 center bore
- Aluminum construction
Hub fit and centering
Centering is the first thing to get right on any aftermarket wheel. A wheel should sit on the hub face and be located by its center bore, not carried only by the lug studs. If the hub is larger than the bore, a hub-centric ring fills the gap so the wheel runs true. Without one, vibration and stud stress can build up over time.
Negative offset changes how the wheel loads the wheel bearings and steering components. The mounting face sits further out, which can shift the scrub radius and bring the tire closer to the fender at full lock. Recheck clearance after any change in tire width, ride height or suspension.
- Measure the hub bore before ordering rings
- Confirm lug seat style matches the nut
- Watch for rubbing at full steering lock
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD53822008245 |
| Wheel diameter | 22 Inches |
| Wheel width | 10 Inches |
| Style | Spoke |
| Finish | Black (titled Black Milled) |
| Construction | Aluminum |
| Bolt pattern | 8 on 6.5 |
| Offset | -24 |
| Backspacing | 4.5 |
| Center bore | 125 |
Vehicle fitment
This wheel is a universal-fit design, so no truck, SUV or model year is tied to it. Check bolt pattern, center bore and offset against your vehicle before choosing it.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Compare the 125 center bore with your hub, since no centering rings are listed with this wheel. Check clearance at full steering lock, because the -24 offset changes how far the wheel sits in the fender.
What’s included
Tires, lug hardware, center caps and centering rings need to be bought separately.
