Overview

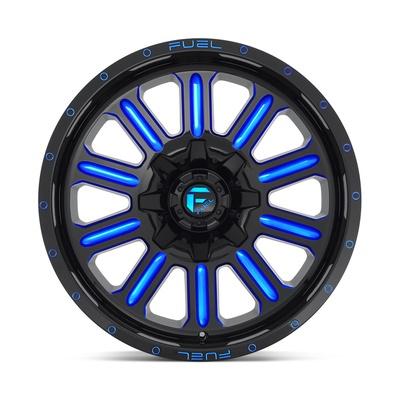

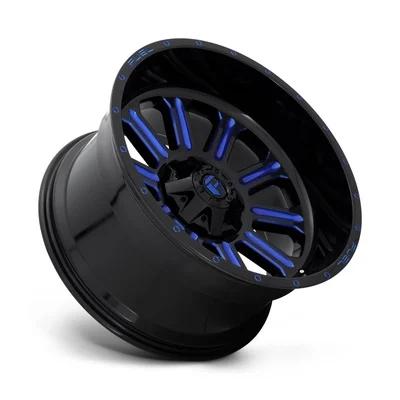

The FUEL Off-Road Hardline D646 is an 18 inch by 9 inch aluminum spoke wheel with two six-lug bolt patterns given, 6 on 135 and 6 on 139.7, plus an offset of 2 and a black and blue finish. Part number MHTD64618909849 identifies this model.
A positive offset of 2 moves the mounting face toward the outside of the wheel, which changes clearance at the brake caliper and inner fender. Because two patterns are given, measure your hub before deciding on this size.
Key features
- 18 inch diameter and 9 inch width with a spoke layout
- Two six-lug bolt patterns given: 6 on 135 and 6 on 139.7
- Offset of 2 and backspacing of 5.08
- Center bore of 106
- Black and blue finish on aluminum construction
Choosing the right setup
Choosing the right setup starts with the hub. Two six-lug layouts that look close can differ enough that a wheel will not seat properly, so measure the lug spacing across the hub rather than estimating it. Once the pattern is confirmed, the center bore should match the hub so the wheel is centered without relying on rings alone. A hub-centric fit reduces vibration at speed and keeps lug loads even.
A positive offset moves the wheel inward compared with a negative one, which can limit how far the tire sits from the suspension. Backspacing and offset together show how much room the inner barrel has against the brake and steering parts. Wider tires, larger brakes or a suspension lift can all change that room, so recheck clearance after any change. Lug nuts should be torqued in a star pattern and rechecked after the first few drives.
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Model | Hardline D646 |
| Part number | MHTD64618909849 |
| Wheel diameter | 18 inches |
| Wheel width | 9 inches |
| Bolt pattern | 6 on 135 / 6 on 139.7 |
| Offset | 2 |
| Center bore | 106 |
| Backspacing | 5.08 |
| Style | Spoke |
| Finish | Black/Blue |
| Construction | Aluminum |
Vehicle fitment
No make, model or year is tied to this wheel. It is a universal fit design, so the bolt pattern and offset decide whether it suits a given vehicle.
The 6 on 135 and 6 on 139.7 entries are different hub layouts, so only one can match a given hub. Compare the pattern, center bore and offset with your vehicle’s published specifications.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Confirm whether your hub uses 6 on 135 or 6 on 139.7 before ordering, since the two layouts cannot be mixed. Check caliper and inner fender clearance at the positive 2 offset with the tire mounted, then turn the steering to each side to look for rubbing.
What’s included
This package covers one wheel. Compare the included items with your own parts list, and source any lug nuts or valve stems still needed.
Not included: Tires are not included with the wheel.
