FUEL Off-Road D740 Runner Wheel, 20x9 with 8 on 6.5 Bolt Pattern – Chrome – D74020908250

FUEL Off-Road

Shop FUEL Off-Road Wheels 20x9 8x6.5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • No vehicle is named; confirm the 8 on 6.5 bolt pattern against your hub
  • 20×9 inch chrome aluminum directional wheel
  • Part number MHTD74020908250, D740 Runner series
  • Offset 1, backspacing 5.04, center bore 125

Description

Overview

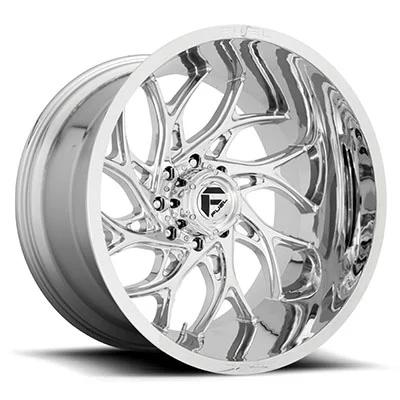

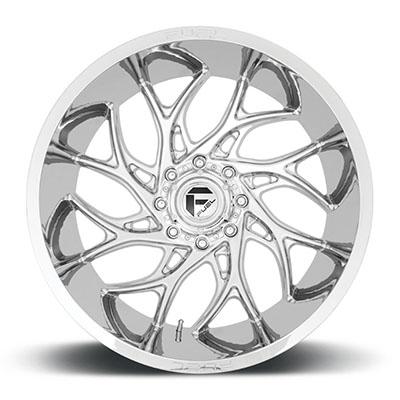

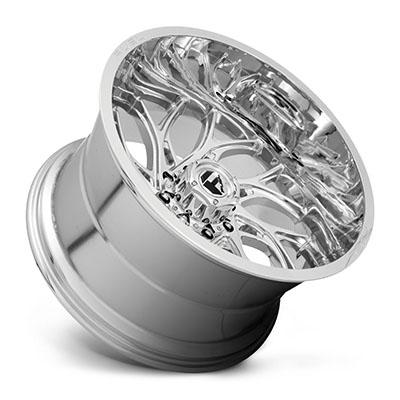

The FUEL Off-Road D740 Runner 20×9 is a chrome aluminum wheel with an 8 on 6.5 bolt pattern, part number MHTD74020908250. Its directional design sits in the D740 Runner series, with a 9-inch width, a center bore of 125, an offset of 1 and a backspacing of 5.04.

An offset of 1 is close to centered, so the wheel sits differently under the fender than the negative-offset sizes in the same series. The brand’s universal fit wording is general; the 8 on 6.5 pattern and 125 center bore must match a specific hub before mounting.

Key features

  • 20-inch diameter with 9-inch width
  • 8 on 6.5 bolt pattern listed
  • Chrome finish on aluminum construction
  • Directional style in the D740 Runner series
  • Offset of 1 and backspacing of 5.04
  • Center bore of 125

Positive offset and fender room

With an offset near centered, the wheel sits closer to the middle of the hub than a deep negative wheel would. That usually leaves more room behind the spokes for brake calipers, but the outer edge sits closer to the fender lip, so tire width and fender liner condition matter.

Check the hub bore and lug seat type before mounting, because a 125 center bore may need hub-centric rings on some hubs. Torque the lug nuts in a star pattern and recheck after the first short drive. Keep the valve stem accessible for tire pressure checks.

Tire width should suit the rim. A tire that is too wide can bulge or rub, and one that is too narrow can distort the sidewall. Confirm the fit with the tire seller before buying, and look at the inner fender after the first drive to catch any early contact.

Specifications

Brand FUEL Off-Road
Part number MHTD74020908250
Series D740 Runner
Diameter 20 inches
Width 9 inches
Bolt pattern 8 on 6.5
Center bore 125
Offset 1
Backspacing 5.04
Construction Aluminum
Finish Chrome
Style Directional

Vehicle fitment

Confirm fit for your vehicle’s year, model and trim before ordering. Check the 8 on 6.5 pattern and 125 center bore against the hub first.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Match the lug seat and thread to the wheel before mounting. Tire mounting and balancing are best handled by a tire shop.

What’s included

The wheel is the item covered here. Verify the package contents against your installation before starting.

Not included: Tires and lug hardware need separate sourcing.

SKU: MHTD74020908250 Categories: ,

Questions & Answers

What is the FUEL Off-Road D740 Runner 20x9 wheel?

It is a 20-inch by 9-inch chrome aluminum wheel with a directional style, part number MHTD74020908250. It has an 8 on 6.5 bolt pattern, a 125 center bore, an offset of 1 and a backspacing of 5.04.

Does the 20x9 D740 Runner come in other bolt patterns?

This wheel comes in one bolt pattern, 8 on 6.5. Check part number MHTD74020908250 against the size you are comparing before ordering.

Is vehicle fitment given for this wheel?

No vehicle is identified for it. Universal Fit is a general sizing tag, so confirm the 8 on 6.5 pattern and 125 center bore against your vehicle's year, model and trim before ordering.

Does a positive offset change how the wheel sits?

Yes. An offset of 1 is close to centered, so the wheel sits nearer the middle of the hub than a strongly negative offset would, which pushes the wheel out. Check brake and suspension clearance before ordering.

How should tire width be matched to a 9-inch wide wheel?

Choose a tire whose rim width range includes this wheel's width. A tire that is too wide for the rim can bulge and wear unevenly, and one that is too narrow can distort the sidewall. Confirm the fit with the tire seller before buying.
