Overview

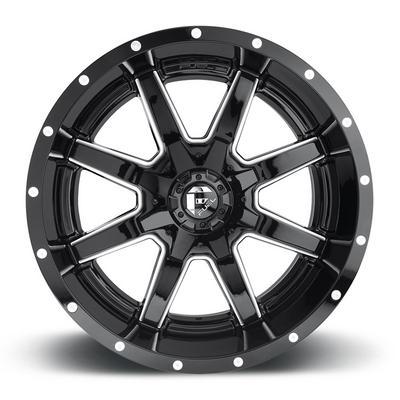

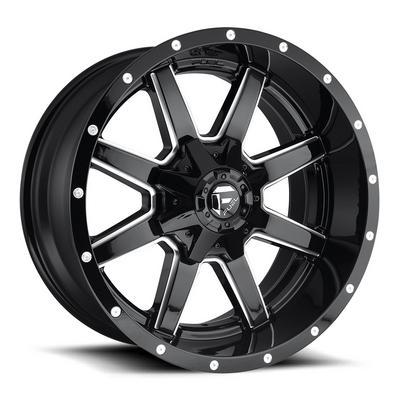

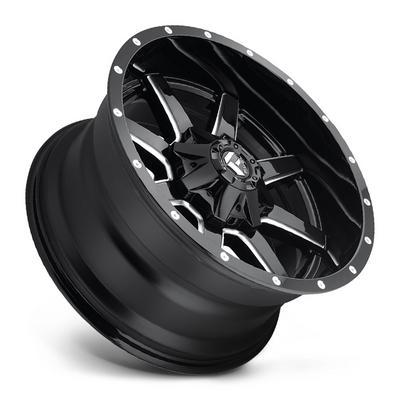

The FUEL Off-Road Maverick D610 is a 22×12 spoke wheel in a black milled finish, built from aluminum for trucks and SUVs. It comes with a 6 on 135 or 6 on 5.5 bolt pattern. It is a universal fit wheel, so no specific vehicle is named. The bolt pattern, center bore, offset and backspacing decide whether it works on your hub.
This 22-inch wheel is 12 inches wide with a -45 offset, 4.7 backspacing and a 106 center bore. Part number MHTD61022209846 identifies this size and finish, and these figures are the ones to compare against your vehicle before choosing it.
Key features
- 22 x 12 inch spoke wheel with aluminum construction
- Black/Milled finish
- Two bolt pattern entries: 6 on 135/6 on 5.5 and 6 on 135
- Offset of -45 and backspacing of 4.7
- 106 center bore
- Universal fit, so bolt pattern and offset need checking against your hub
Pattern and offset checks
Two bolt patterns on one wheel means the hub decides which one applies. Compare the 6 on 135 and 6 on 5.5 entries with your vehicle’s requirements and use only the matching pattern. A pattern mismatch will stop the wheel from seating, so do not force it.
A -45 offset moves the mounting face outward, which changes how the wheel clears the caliper, the fender and the steering components. Backspacing of 4.7 and a 106 center bore also affect fit. Tire size is a separate clearance question, so measure the finished setup before off-road use.
- Confirm the hub pattern before ordering lug hardware
- Check steering clearance at full lock
- Confirm the 106 center bore fits the hub before mounting
- Test clearance after changing tire size
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD61022209846 |
| Model | Maverick D610 |
| Wheel diameter | 22 Inches |
| Wheel width | 12 Inches |
| Offset | -45 |
| Backspacing | 4.7 |
| Center bore | 106 |
| Bolt pattern | 6 on 135/6 on 5.5 |
| Bolt pattern #2 | 6 on 135 |
| Style | Spoke |
| Finish | Black/Milled |
| Construction | Aluminum |
| Fitment | Universal Fit |
Vehicle fitment
No make, model or year is named for this wheel, so it is not tied to a specific vehicle. Match the 6 on 135 or 6 on 5.5 bolt pattern, the 106 center bore and the -45 offset to your hub specifications first.
The two listed patterns are different, so use only the one your hub uses. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check the bolt pattern and center bore against your hub before mounting, and make sure the -45 offset clears brakes and suspension components. Tire size also affects clearance and is not covered here.
What’s included
No hardware or tires are included with this wheel.
Not included: Tires, lug nuts or bolts and center caps are not included, so obtain those separately.
