FUEL Off-Road Lethal, 20x9 Wheel with 6 on 135 and 6 on 5.5 Bolt Pattern – Black Milled – D56720909850

FUEL Off-Road

$500.00In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 8:20 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • FUEL Off-Road Lethal 20×9 split spoke wheel, part number MHTD56720909850
  • Two six-lug patterns: 6 on 5.5 and 6 on 135
  • 20-inch diameter, 9-inch width, black milled finish
  • Center bore 106, offset 1, backspacing 5

Description

Overview

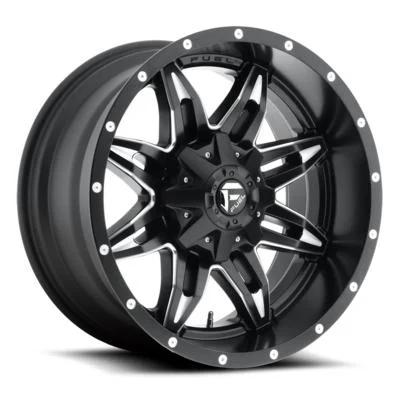

The FUEL Off-Road Lethal 20×9 split spoke wheel, part number MHTD56720909850, is a 20-inch aluminum wheel 9 inches wide. It has a black milled finish, a 106 center bore, an offset of 1 and a backspacing of 5.

The wheel comes in a six-lug layout, either 6 on 5.5 or 6 on 135, so the hub has to match one of those exactly. Confirm the 106 center bore and offset before mounting. It is a universal fit wheel, so no specific vehicle is matched to it.

Key features

  • Split spoke face in black milled aluminum
  • 20-inch diameter and 9-inch width
  • Two six-lug bolt patterns, 6 on 5.5 and 6 on 135
  • Center bore of 106
  • Offset of 1 with a backspacing of 5

Six-lug fit and offset

Six-lug hubs are common on trucks and SUVs, and the bolt pattern is the first thing to match. A 6 on 135 hub and a 6 on 5.5 hub are different, even though both have six studs. Measure the pitch circle across opposite holes before choosing a wheel. Hub-centric fit matters too, so a center bore that suits the hub lets the wheel center itself rather than relying only on the lug nuts.

Offset controls where the mounting face sits in the wheel well. Changing it moves the tire inward or outward and can cause rubbing on the suspension or fender liner. When fitting a split spoke design, check that the spoke area clears the brake caliper. Torque lug nuts in a star pattern and recheck them after the first drive.

  • Check the hub type before ordering
  • Look for rubbing after any suspension change
  • Clean the hub face before mounting

Specifications

Brand FUEL Off-Road
Part number MHTD56720909850
Model number D56720909850
Series Lethal
Style Split Spoke
Finish Black milled
Construction Aluminum
Diameter 20 inches
Width 9 inches
Bolt patterns 6 on 5.5 and 6 on 135
Center bore 106
Offset 1
Backspacing 5
Fitment Universal fit

Vehicle fitment

FUEL Off-Road lists universal fit and gives no model for this wheel. Match the 6 on 135 or 6 on 5.5 layout and the 106 center bore to your hub.

Bolt pattern, center bore and offset are the decision points here, so a model name alone does not settle fit. Confirm your vehicle’s year, model and trim before ordering.

What’s included

One wheel.

Not included: Center caps, lug nuts and tires are not included.

SKU: MHTD56720909850 Categories: ,

Questions & Answers

What is part MHTD56720909850?

It is a FUEL Off-Road Lethal 20x9 split spoke wheel in black milled aluminum, with two six-lug patterns, 6 on 5.5 and 6 on 135. The model number is D56720909850.

Is this wheel made for a specific vehicle?

No. It is a universal fit wheel with no year, model or trim assigned. Check the 106 center bore and offset of 1 against your hub before mounting.

What backspacing and width does it have?

Backspacing is 5 and width is 9 inches. Diameter is 20 inches and offset is 1. Confirm the load rating suits your vehicle and use before ordering.

Why does the center bore matter on a six-lug wheel?

A center bore that matches the hub lets the wheel center on the hub instead of relying only on the lug nuts. A bore that is too large can be fitted with hub-centric rings, though the fit should be checked before driving. Match the bore first, then the bolt pattern.

How soon should lug nuts be checked on a new wheel?

Check lug nut torque after the first short drive, since new wheels can settle against the hub. Recheck after tire rotations and periodically after that. Look for loose nuts, cracks around the spokes and any scraping on the brake or fender.
