Overview

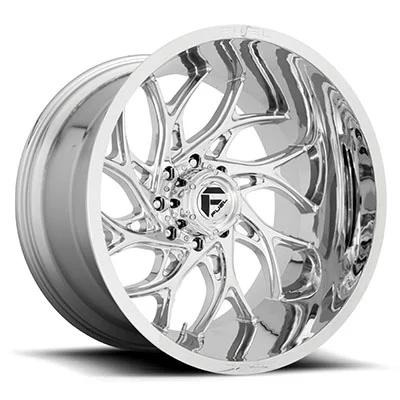

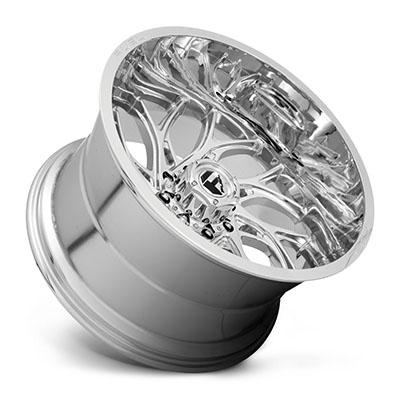

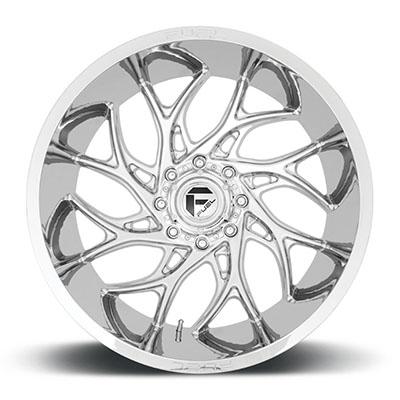

The FUEL Off-Road D740 Runner 22×12 is a chrome aluminum wheel with a 6 on 5.5 bolt pattern, part number MHTD74022208447. Part of the D740 Runner series, it is a 22-inch diameter wheel, 12 inches wide, with a center bore of 106, an offset of -44 and a backspacing of 4.77.
A -44 offset puts the mounting face well inboard, so clearance against brakes, suspension and tire width needs checking before ordering. Confirm that the 6 on 5.5 pattern and center bore of 106 match your hub, because the universal fit label alone does not establish that.
Key features
- 22-inch diameter and 12-inch width
- 6 on 5.5 bolt pattern
- Chrome finish on aluminum construction
- Directional style in the D740 Runner series
- Deep -44 offset with 4.77 backspacing
- Center bore of 106
Clearance with deep offsets
A -44 offset places the mounting face well inboard, which moves the wheel’s outer lip toward the fender and the front of the suspension. Wider wheels and deep offsets together raise the chance of contact at full steering lock, under suspension compression, or when a tire is wider than the one it replaces. Test fit before the tire is fully torqued in place and check each side.
Spacers are sometimes used to change clearance, but they also add load to the hub studs and move the tire outward. A hub-centric ring and a correct seat style matter just as much as width. Recheck clearance after the first few drives, since tire seating and suspension settling can shift how close the tire comes to nearby parts.
- Turn the steering fully both ways during a test fit
- Check brake caliper and inner fender clearance
- Confirm the tire size before choosing a wheel width
- Re-check lug torque after the first drives
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD74022208447 |
| Series | D740 Runner |
| Diameter | 22 inches |
| Width | 12 inches |
| Bolt pattern | 6 on 5.5 |
| Center bore | 106 |
| Offset | -44 |
| Backspacing | 4.77 |
| Construction | Aluminum |
| Finish | Chrome |
| Style | Directional |
Vehicle fitment
No year, make or model is tied to this wheel. Its universal fit is a general sizing note, so a hub, offset and clearance check on your own vehicle comes first.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Wider wheels with deep offsets can rub suspension or fender parts, so test fit and check clearance before mounting a tire. Confirm the lug seat style matches the wheel before installation.
What’s included
The package is the wheel only.
Not included: Tires and lug hardware are not part of this package.
