FUEL Off-Road D753 Reaction Wheel, 22x10 with 6 on 135/6 on 5.5 Bolt Pattern – Black / Milled – D75322009847

FUEL Off-Road

$397.38In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 19, 2026 2:10 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Universal Fit, so the bolt pattern and hub bore decide the match
  • 22 x 10 inch aluminum wheel, 6 on 135/6 on 5.5 bolt patterns listed
  • Offset -18, center bore 106, backspacing 4.79
  • Black and milled finish, directional style, part MHTD75322009847

Description

Overview

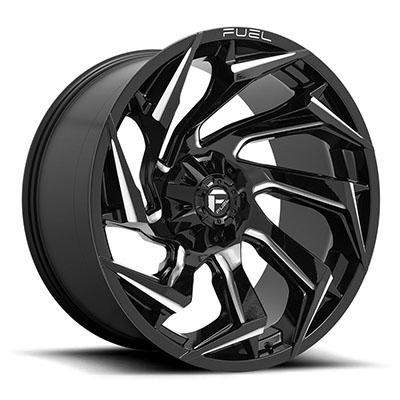

The FUEL Off-Road D753 Reaction wheel in 22×10 inches, part number MHTD75322009847, is an aluminum directional wheel with a black and milled finish. Two six-lug patterns are given, 6 on 135 and 6 on 5.5, with 6 on 135 also shown as a second pattern.

The wheel is Universal Fit, so no vehicle is named. Its offset of -18 is negative, which moves the wheel outward and widens the stance compared with a near-zero offset. The 106 center bore and 4.79 backspacing should be checked against the hub and the inner clearance before the wheel is ordered.

Key features

  • Aluminum construction with a black and milled finish
  • Directional style design
  • Two six-lug bolt patterns listed: 6 on 135 and 6 on 5.5
  • 22-inch diameter with a 10-inch width
  • Negative offset of -18 and center bore of 106

Negative offset and stance

A negative offset places the mounting face behind the centerline, so the wheel sits farther out than a standard fitment. On a 10-inch wide wheel this shifts the tire toward the fender and can change how the suspension and steering parts clear the inside of the wheel. The effect is most visible at full steering lock and when the vehicle carries a load.

Check the outer clearance with the tire fitted and the suspension in its full range of travel, not only on a stand. Pay attention to the fender lip, the tie rod ends and the control arm ends. If the wheel rubs, fender trimming or wheel spacers may be considered, though spacers change the load on the hub bearings and need to be chosen with care.

  • Measure fender lip to tire at full lock
  • Look at tie rod ends and control arms
  • Consider tire width and sidewall height together

Specifications

Brand FUEL Off-Road
Part number MHTD75322009847
Model D753 Reaction
Diameter 22 inches
Width 10 inches
Bolt pattern 6 on 135/6 on 5.5
Bolt pattern 2 6 on 135
Offset -18
Center bore 106
Backspacing 4.79
Style Directional
Finish Black/Milled
Construction Aluminum
Fitment Universal Fit

Vehicle fitment

The wheel is universal fit and is not matched to one vehicle, so the choice depends on bolt pattern, center bore and offset.

A -18 offset on a 10-inch wide wheel can contact fenders or suspension on some vehicles, so check clearance. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Test-fit the wheel with the brake caliper and suspension in place before mounting a tire. Because the offset is negative, check outer clearance at full steering lock.

What’s included

The wheel is the only item covered. Confirm whether lug nuts, center caps and valve stems are in your order before mounting.

Not included: tires, which are needed for use on a vehicle.

SKU: MHTD75322009847 Categories: ,

Questions & Answers

Does part MHTD75322009847 fit a specific truck?

No vehicle is matched to this 22x10 wheel. Match the 6 on 135 or 6 on 5.5 bolt pattern, the 106 center bore and the offset of -18 to your hub.

Is the -18 offset a concern?

A negative offset places the wheel further outward. Check fender and suspension clearance with the wheel test-fitted before mounting a tire, since the 10-inch width adds to the stance.

Which of the two bolt patterns fits my hub?

Two patterns are listed, 6 on 135 and 6 on 5.5, with 6 on 135 given as a second pattern. Confirm which pattern your hub uses before ordering.

Can a wider wheel affect wheel bearing wear?

It can. A wheel that sits farther out moves the load on the hub and bearing, so a worn bearing may become more noticeable. Inspect the bearing if you hear a humming noise or feel play when the wheel is moved by hand.

How should lug nuts be tightened on a wide wheel?

Tighten them in a star pattern and check them again after the first few drives. Use the torque value for your vehicle, and recheck after any tire or wheel service.
