Overview

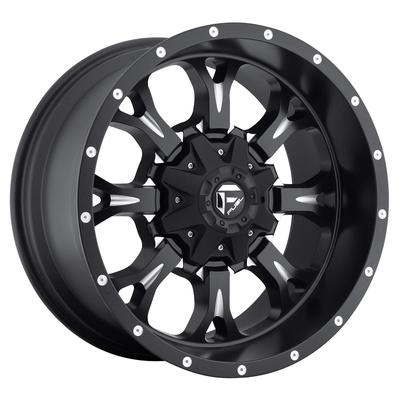

The FUEL Off-Road Krank D517 is a 20×10 aluminum wheel with an 8 on 6.5 bolt pattern and a matte black milled finish. Part number MHTD51720008245 identifies this variant of the D517 Krank line.
This version pairs a -24 offset with 4.5 backspacing, so it sits deeper in the wheel well than the 20 offset version of the same width. No make, model or year is tied to it.
Key features
- Aluminum construction, 20 inches by 10 inches
- 8 on 6.5 bolt pattern
- 125 center bore
- Offset -24 and backspacing 4.5
- Matte black milled finish on the Krank style
Brake and suspension clearance
Brake calipers are the most common clearance issue with a lower-offset wheel. A deeper offset seats the wheel nearer the caliper body, so the spoke gaps and inner lip need to be checked with the rotor and caliper in place. Turn the steering fully both ways and look for contact before the truck goes on the road.
Suspension changes can shift clearance too. A lift, a new control arm or a larger tire can move the tire closer to the fender, which is why a test fit after any change is worth doing. Keep the center bore and bolt pattern in mind, because a wheel that centers poorly can wobble even when clearance looks adequate.
- Check caliper clearance at full lock
- Inspect the inner lip for rub marks
- Test fit before the tire is mounted
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD51720008245 |
| Style | Krank (D517) |
| Wheel diameter | 20 inches |
| Wheel width | 10 inches |
| Bolt pattern | 8 on 6.5 |
| Center bore | 125 |
| Offset | -24 |
| Backspacing | 4.5 |
| Construction | Aluminum |
| Finish | Matte black milled |
Vehicle fitment
No vehicle is tied to this wheel. Compare your hub’s bolt pattern and center bore with 8 on 6.5 and 125 first.
Offset and backspacing decide clearance to the brake caliper, fender and suspension, so verify them with your own setup. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Match the lug seat style to your lug nuts, and check brake caliper clearance before mounting.
What’s included
This item is the wheel only. Tires and lug nuts are not part of it.
