FUEL Off-Road Coupler D575 Wheel, 20x10 with 5 on 5.5/5 on 150 Bolt Pattern – Gloss Black – D57520007050

FUEL Off-Road

Shop FUEL Off-Road Wheels 20x10 5x5.5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • FUEL Off-Road D575 20×10 wheel, part MHTD57520007050, gloss black aluminum spoke.
  • Bolt patterns 5 on 5.5 and 5 on 150; center bore 110.
  • -12 offset and 5 backspacing.
  • Marked Universal Fit; check fit for your truck first.
  • Wheel only; plan to source tires and lug nuts.

Description

Overview

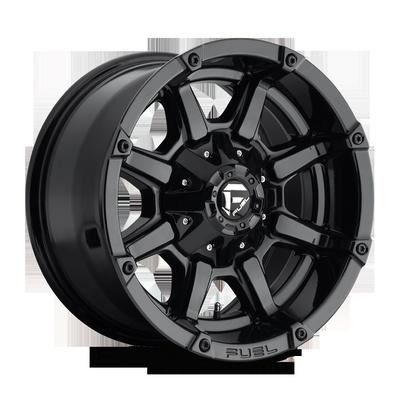

The FUEL Off-Road Coupler D575 in 20 by 10 inches is a gloss black aluminum spoke wheel, part number MHTD57520007050, built for a 5 on 5.5 or 5 on 150 bolt pattern. It is marked Universal Fit, so no specific make, model or year is given.

The wheel has a -12 offset, a backspacing of 5 and a center bore of 110. Because the width is 10 inches, fender and tire clearance should be measured before mounting, and the bore should be confirmed against your hub.

Key features

  • 20 inch diameter and 10 inch width.
  • Spoke style with a gloss black finish.
  • Aluminum construction.
  • Bolt pattern listings of 5 on 5.5 and 5 on 150.
  • Center bore of 110 and backspacing of 5.

Wide wheels and clearance

A 10-inch wide wheel fills more of the wheel well, so clearance against the fender, suspension and brake parts needs checking before tires are mounted. Backspacing and offset together determine where the inner barrel sits. A lower offset pushes the wheel outward, which can reduce clearance at the outer tire edge.

Two bolt patterns on one wheel means the hub must be measured before ordering, since only one pattern will match a given hub. Clean the mounting face and confirm the center bore against the hub before installation. After mounting, check for rubbing at full steering lock and recheck lug torque after the first drives.

  • Measure the hub pattern before ordering
  • Check fender clearance at full steering lock
  • Confirm the center bore against the hub
  • Recheck lug torque after the first drives

Specifications

Brand FUEL Off-Road
Part number MHTD57520007050
Diameter 20 inches
Width 10 inches
Offset -12
Center bore 110
Backspacing 5
Bolt pattern 5 on 5.5/5 on 150
Style Spoke
Finish Gloss Black
Construction Aluminum
Fitment Universal Fit

Vehicle fitment

No vehicle is named because this wheel is marked Universal Fit. Check the 5 on 5.5 and 5 on 150 patterns, the 110 center bore and the -12 offset against your hub and wheel well. A 10 inch wide wheel depends on the fender and suspension of the specific truck.

Universal Fit is a catalog label, not a clearance check for any one truck. Confirm your vehicle’s year, model and trim before ordering.

What’s included

Only the wheel is described, with no lug nuts, center caps or tires named.

Not included: Plan to source tires, lug nuts and center caps separately before mounting.

SKU: MHTD57520007050 Categories: ,

Questions & Answers

Does the D575 20x10 wheel fit a 5 on 5.5 bolt pattern?

Yes, one listing is 5 on 5.5 and the other is 5 on 150, both on part number MHTD57520007050. The wheel is marked Universal Fit, so match your hub before mounting.

What offset and backspacing does this FUEL wheel have?

It has a -12 offset and 5 backspacing, with a 110 center bore. The wheel is 20 inches in diameter and 10 inches wide, finished in gloss black with aluminum construction.

Is the wheel sold with tires or lug nuts?

The product covers the wheel only. Plan to source tires, lug nuts and center caps separately, and confirm the hub and clearance for your vehicle before buying them.

What is backspacing?

Backspacing is the distance from the wheel's mounting face to its inner lip. With offset, it determines how far the wheel sits inside the fender. Measure clearance before mounting wider tires.

How do I choose between the two bolt patterns?

Only one of the two patterns will match your hub. Measure the bolt pattern on your vehicle and use the wheel only if that measurement matches exactly.
