Overview

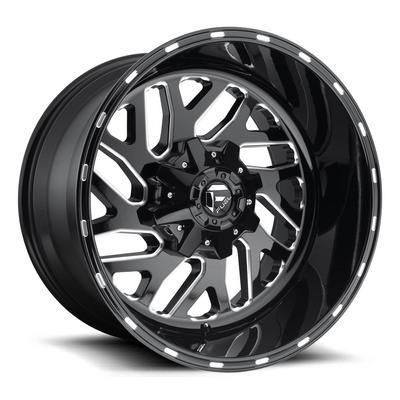

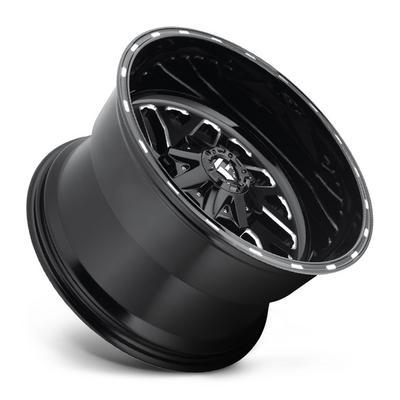

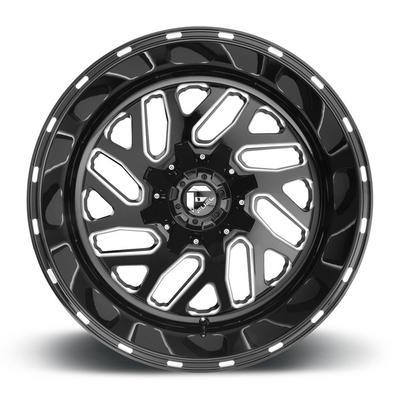

Part number MHTD58120009846 is a black milled aluminum wheel in 20 by 10 inches, offered for a 6 on 135 or 6 on 5.5 bolt pattern. It is built for trucks and SUVs. The bolt pattern, offset and center bore determine whether it mounts on your hub.
The Triton D581 has a directional style, so the rim is designed to turn one way on the vehicle. Its 20 Inches diameter and 10 Inches width set the tire sizes it can carry, and the -19 offset sets where the mounting face sits relative to the fender.
Key features
- Aluminum construction with a directional spoke style
- Black/Milled finish
- Bolt pattern of 6 on 135 and 6 on 5.5, plus a second 6 on 135 entry
- Offset -19, backspacing 4.8 and center bore 106
- Fitment entry reads Universal Fit
Directional wheels and mounting
Directional wheels have a spoke pattern and rim shape designed to rotate one way. Mounting them the correct way keeps water and debris moving away from the tire and keeps the design working as intended. Check the rotation marking on each wheel before mounting it.
Because this style is less forgiving of reversed installation, rotate tires with care. Keep the same side orientation when rotating or swapping tires between positions, and avoid mixing directional wheels with a different rotation.
Offset, backspacing and tire width also affect how the wheel clears brakes and fenders. Recheck clearance after any change, and inspect the rim lip for dents after rough trail use, since dents can cause slow air loss.
- Confirm the rotation arrow before mounting
- Keep rotation direction consistent when rotating tires
- Inspect the rim lip after trail use
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD58120009846 |
| Wheel diameter | 20 Inches |
| Wheel width | 10 Inches |
| Offset | -19 |
| Backspacing | 4.8 |
| Center bore | 106 |
| Bolt pattern | 6 on 135 / 6 on 5.5 |
| Bolt pattern (second entry) | 6 on 135 |
| Style | Directional |
| Finish | Black/Milled |
| Construction | Aluminum |
| Fitment | Universal Fit |
Vehicle fitment
No specific year, make or model is attached to this wheel. Match the 6 on 135 or 6 on 5.5 pattern, the -19 offset and the 106 center bore to your truck or SUV before choosing a set.
A matching bolt pattern alone does not confirm brake, suspension or tire clearance. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Compare the -19 offset and 4.8 backspacing with the wheels now on the vehicle, because a different offset changes how far the rim sits inside or outside the fender. Check the 106 center bore against the hub. Test-fit and check for rubbing at full steering lock, since a rubbing wheel can damage tires and steering parts.
What’s included
One wheel is covered. Not included: Tires and lug nuts should be confirmed against your installation before starting.
