Overview

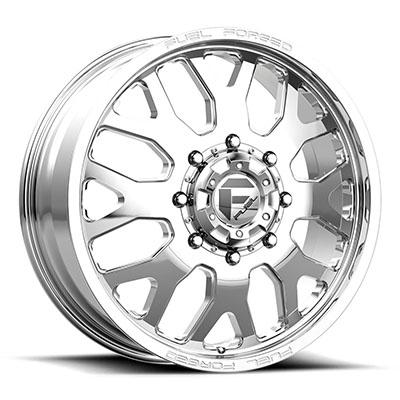

The FUEL Off-Road FF19D Front Wheel is a 22 by 8.5 inch aluminum wheel with a polished finish, a 10 on 225 bolt pattern and part number MHTDF192282A9. FF19D is the style name, and the title identifies this model as a front wheel.
This wheel carries offset 105 and backspacing 8.88. Those two measurements control how far the wheel sits inside or outside the fender and how much room remains to the brake caliper and control arms, so check them against your vehicle first.
Key features
- Front wheel in the FF19D style
- 22 inch diameter and 8.5 inch width
- 10 on 225 bolt pattern
- Polished finish on aluminum construction
- Offset 105 and backspacing 8.88
Front axle wheel checks
Front wheels work with steering, so clearance is more sensitive than on the rear. The inner barrel must clear the brake caliper and any control arm, while the outer lip must clear the fender at full steering lock. Turning the wheels slowly with the tire mounted shows contact points that a static check misses.
Front hubs also carry steering and braking loads, so the wheel bearing, hub bolts and caliper should be inspected when a new front wheel is fitted. A worn bearing can show as play or a humming noise that changes with speed. Torque the lug nuts to the vehicle’s figure and recheck them after the first drive.
- Turn the wheels slowly with the tire mounted
- Check caliper clearance on the inner barrel
- Inspect wheel bearing for play
- Recheck lug torque after the first drive
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTDF192282A9 |
| Style | FF19D |
| Wheel diameter | 22 inches |
| Wheel width | 8.5 inches |
| Offset | 105 |
| Backspacing | 8.88 |
| Bolt pattern | 10 on 225 |
| Finish | Polished |
| Construction | Aluminum |
Vehicle fitment
No specific vehicle years, makes or models are confirmed for this front wheel. It is a universal-fit design, but its bolt pattern and offset still have to match the hub.
No specific vehicle is confirmed for this front wheel. Compare its 10 on 225 bolt pattern and offset 105 with your vehicle’s specifications before ordering.
Installation notes
Clearance at the brake caliper and inner fender matters with 8.88 backspacing, so a tire shop can confirm that the planned tire sits without rubbing before the wheel is driven.
What’s included
Only the wheel is described here.
Not included: no tire, lug nut or center cap is named as part of this package.
